solid brick molding machine
1. Low invest cost
2. Excellent performance
3. High quality
4. Reliable operation
we are manufacturer of brick making machine more than 34 year with ISO9001 &CE,our auto brick machine and concret block making machine have exported to more than 70 countries. In 2013, our company self-developed rotary tunnel kiln, which is the most adavanced kiln technology, welcome to our company inspection

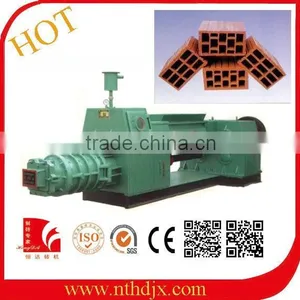

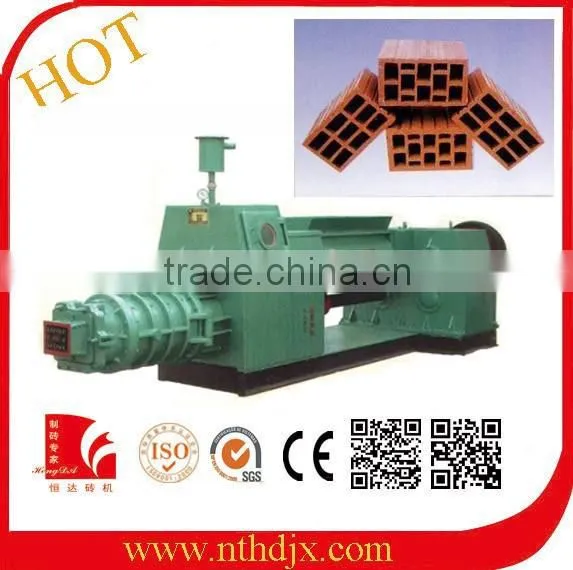

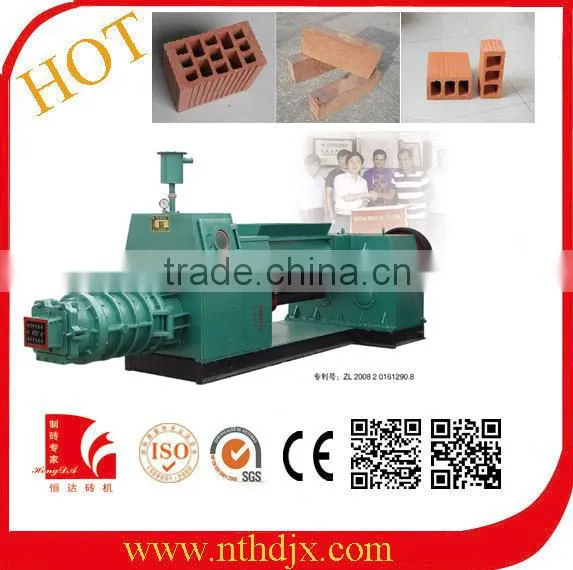

JKB50/45-30 brick molding machine
Basic Introduction:
JKB50/45-30 solid bricks manufacturing machine is welded by high-quality steel.It is suitable for clay bricks which the raw materials are mixed by clay,silt,coal gangue,shale,flyash and so on. As raw materials to carry out a strong mixing, vacuum processing, and then the screw auger extrusion system to produce provisions cross-section of ordinary solid bricks, hollow bricks, and other products.
Main Structure:
Double stage vacuum extruder is composed of motor, reducer, clutch, vacuum chamber, double shaft mixer, mould,barrel, auger, vacuum pump etc. The vacuum pump can pump moisture in the mixed well materials and then to extrude hard continuous strips by the pushing strength of the reamer through the mould. Also,we added another mixer on the upper stage of extruder so that the brick quality is much better than traditonal brick extruder.
| No. | Item | Units of measurement | JKB50/45-30 |
| 1 | Productin capacity | standard brick/hour | 12000-16000 |
| 2 | Extrusion pressure | Mpa | 3.5 |
| 3 | Vacuum degree | Mpa | ≥0.092 |
| 4 | Power | kW | 160 |
| 5 | Weight | t | 16 |

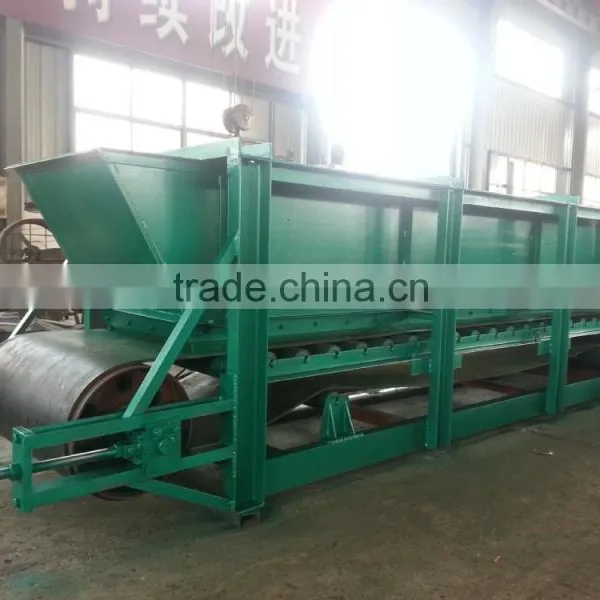

1. Box feeder for red brick plant:
Box Feeder is the feeding equipment which is used to balance and ration during brick producing. It is applicable to various bulk and block materials with controllable feeding speed and feeding quantity. It is the first part of red clay brick making machine.

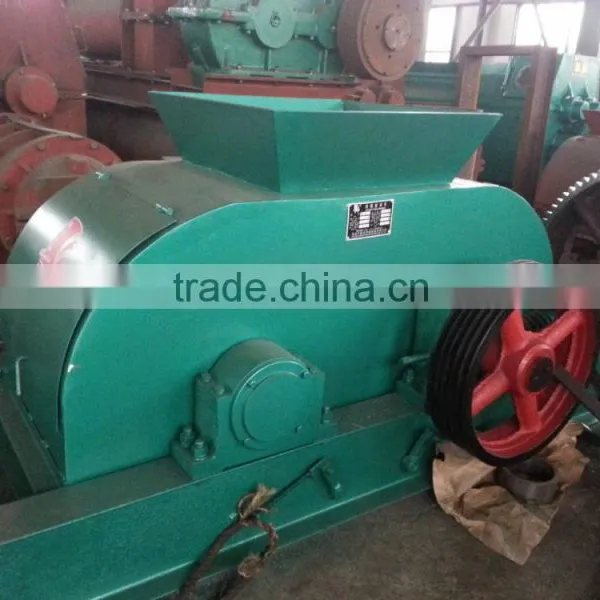

2. Crusher for red brick plant:
Crusher and wear on the roller machine is also a raw material crushing, squeezing, grinding equipment. The advantages of the device is low power, reasonable price, suitable for crushing clay raw materials. It is the second step of clay brick making machine
3. Double-shaft mixer for red brick plant:
Double-Shaft Mixer is used to mix water with crushed raw materials, increase the comprehensive quality of raw materials, greatly improve appearance quality and ratio of forming, thus it is indispensable raw material processing machine for red clay brick making.

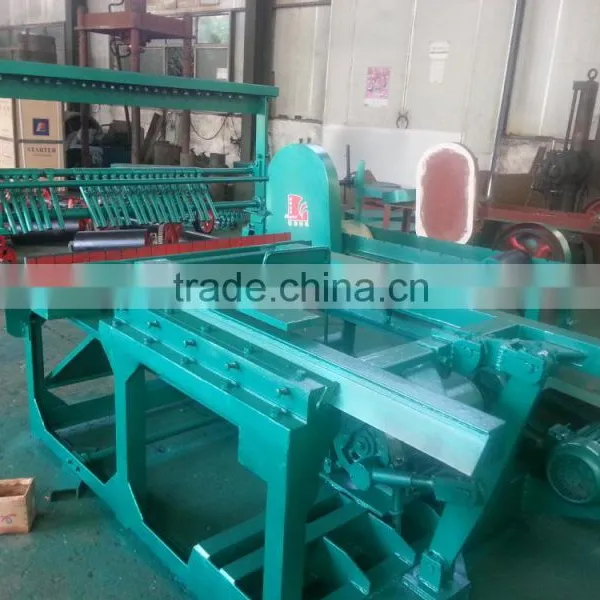

4. Strip cutting and blank cutting machine of red brick plant:
Strip Cutting and Blank Cutting machine is mainly used to cut mud which is squeezed from extruder into qualified red clay brick during sintering brick production. The cutter is the new vertical strip cutting and blank cutting system designed and deceloped by our factory which adopts advanced automatic PLC control, combing with photoelectric, close positioning, pneumatic and electric servo systems and etc. It has advanage of high accuracy, easy operation, and simple maintenance an so on.
Before-sale services:
(1)Guide customers to choose the best appliable machine type; provide the advanced, energy-saving and practical technological process,
(2) We are responsible for the process chart and design.
Sale services:
(1)Products must be inspected strictly before selling;
(2)In accordance with the agreements stipulated in the contract,
(3)We will organize delivery.
After-sale services:
(1)Our company will send professional engineers to guide with device installation, debugging and training operators until customers are fully satisfied. Moreover, we will design and manufacture products, according to the special requirements of customers.
(2)The quality guarantee period for machines is one year except the wearing parts.
1.Is your company a factory or trading company?
A: We are the professional bricks machine factory in Jiangsu, Nantong city for more than 50 years,with CE&ISO approved
2. What's the common raw material of bricks?
A: Clay,shale,soil,mud,earth,fly ash,coal gangue and so on.You can choose the most suitable material for your use.
3. If We want purchase the bricks machine,what data needed?
A: a.the production per day
b.The raw material of brick, such as clay,shale,soil,mud,earth,fly ash,coal gangue and so on.
c.The size of bricks you need: L?* W?* H?
d. Hoffman kiln or Tunnel kiln
( If you are not very clear with technical data of bricks machines, we can recommend for you.)
What’s more, we have professional engineers,so customized machines are also available.And Detailed pictures and specifications of bricks machines and videos of products line can be offered freely if you need.
Up to now, our machines have been exported to many countries such as India, Bangladesh, Bengal, Uganda, Vietnam, Uzbekistan ect.
Choose Nantong Hengda Small Production Extruder hollow clay brick making machine,bring you wealth easily!
Welcome to visit our factory or website!!
