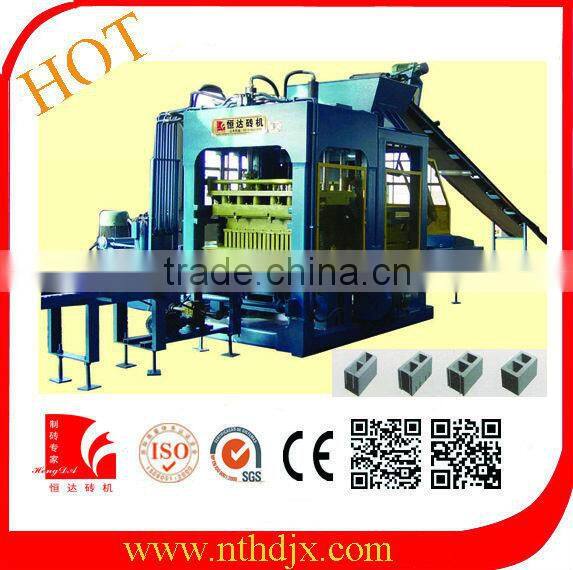

This T10 automatic concrete paver brick making machine is equipped with a frequency conversion vibration system. The system includes motors for top and bottom vibration generation, the automatic concrete paver brick making machine utilizes the LG frequency converter. For reliable performance, the product is outfitted with LG PLC, as well as touch screen .Moreover, the hydraulic system of this machine is composed of integrated modular units from Germany and Italy.
The overall dimension (L x W x H):
5,200 x 2,300 x 2,960mm with facemix device
3,200 x 2,300 x2,960mm without facemix device
Concrete products: 50-300mm in height
Pallets size: 1,100x850mm
Main Technical Specifications of QT10-15 automatic concrete paver brick making machine /paver block machine/concrete block machine
Production per mould |
10pcs/mould (Hollow block: 390×190×190mm) |
48pcs/mould (Solid block: 240×115×53mm) | |
24pcs/mould (Interlocking block: 225×112.5×60mm) | |
35pcs/mould (Holland brick: 200×100× 60-80mm) | |
Cycle time |
15-25 seconds(Depending on product type) |
Production per shift |
Hollow block (400×200×200mm): 14400-19200pcs |
Solid block (240×115×53mm): 77760-92160pcs | |
Interlocking block: 240×115×90mm): 31104-46080pcs | |
Holland brick (200×100×60-80mm): 40320-50400pcs. | |
Vibration frequency |
2940 -3600rolls/minute or 50Hz |
Vibrating force |
100kN |
Motors power |
48kw |
Volume of hoppers |
Main material: 900L |
Face material: 750L | |
PVC Pallet size |
1100×850×22mm |
Gross weight |
9.0 T (without face mix device) |
12T (with face mix device) | |
Raw materials |
Crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite and other industrial waste. |

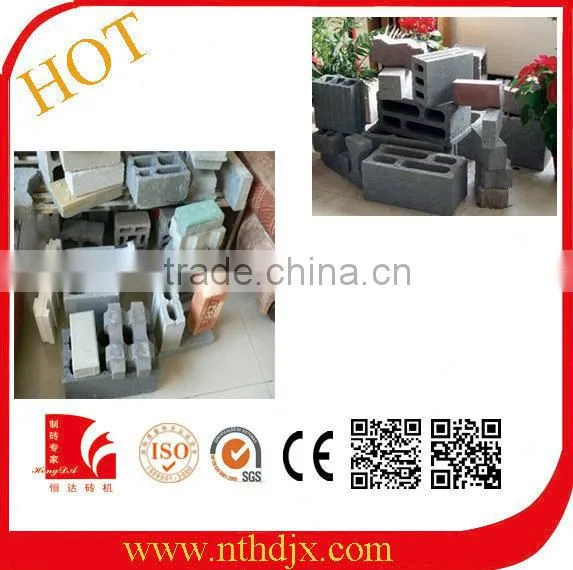

Applicable products |
Concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, curbstones, grass blocks, slope blocks, interlocking blocks, etc. |
Applied fields |
Suitable for buildings, road paving, squares, gardens, landscaping, city constructions, etc. |
Name: Maggie
Mobile: 0086-18921625078
Skype: maggie88811
.
we are manufacturer of brick making machine more than 34 year with ISO9001 &CE, our clay brick machine and concrete block machine have exported to more than 70 countries. In 2013, our company self-developed rotary tunnel kiln, which is the most advanced kiln technology, welcome to our company inspection.
