1.reasonable structure design hydraulic brick making machine
2,low mold materials hydraulic brick making machine
3,high efficiency
4,wide adaptability
Export to Vietnam hydraulic brick making machine/cement brick making machine
Good news!!!!
In 2013 year, we company self-developed new technology movable tunnel kiln, which line has been into smoothly use in Jiangsu Nantong Zhuangzhi Brick Factory, now in China Xinjiang area, we have 4 lines are in counstrcution!
Now we company have clay brick vacuum extruder, hydraulic brick making machine , movable tunnel kiln, pvc pallet, pvc tiles,
If you are interests in machine buying or kiln building, welcome to our factory to visit 24h Serve for you !Looking forward to your inquiry!

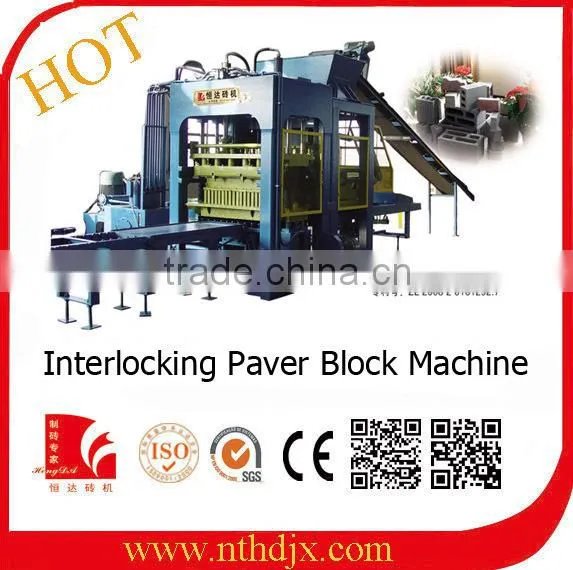

This QT10-15 hydraulic brick making machine is equipped with a frequency conversion vibration system. The system includes motors for top and bottom vibration generation, the automatic earth block machine utilizes the LG frequency converter. For reliable performance, the product is outfitted with LG PLC, as well as touch screen .Moreover, the hydraulic system of this machine is composed of integrated modular units from Germany and Italy.
The overall dimension (L x W x H):
5,200 x 2,300 x 2,960mm with facemix device
3,200 x 2,300 x2,960mm without facemix device
Concrete products: 50-300mm in height
Pallets size: 1,100x850mm
Main Technical Specifications of QT10-15 hydraulic brick making machine
Production per mould |
10pcs/mould (Hollow block: 390×190×190mm) |
48pcs/mould (Solid block: 240×115×53mm) | |
24pcs/mould (Interlocking block: 225×112.5×60mm) | |
35pcs/mould (Holland brick: 200×100× 60-80mm) | |
Cycle time |
15-25 seconds(Depending on product type) |
Production per shift |
Hollow block (400×200×200mm): 14400-19200pcs |
Solid block (240×115×53mm): 77760-92160pcs | |
Interlocking block: 240×115×90mm): 31104-46080pcs | |
Holland brick (200×100×60-80mm): 40320-50400pcs. | |
Vibration frequency |
2940 -3600rolls/minute or 50Hz |
Vibrating force |
100kN |
Motors power |
48kw |
Volume of hoppers |
Main material: 900L |
Face material: 750L | |
PVC Pallet size |
1100×850×22mm |
Gross weight |
9.0 T (without face mix device) |
12T (with face mix device) | |
Raw materials |
Crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite and other industrial waste. |
Applicable products |
Concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, curbstones, grass blocks, slope blocks, interlocking blocks, etc. |
Applied fields |
Suitable for buildings, road paving, squares, gardens, landscaping, city constructions, etc. |

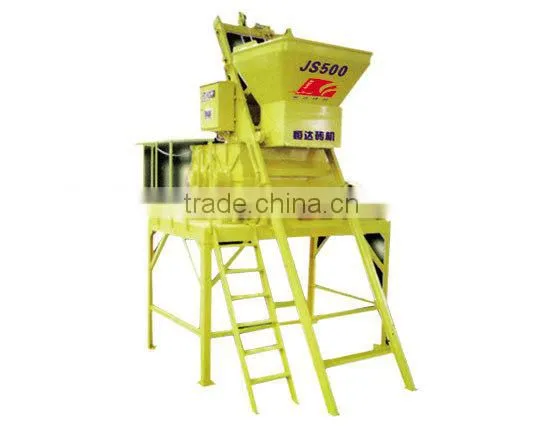

JS mixer

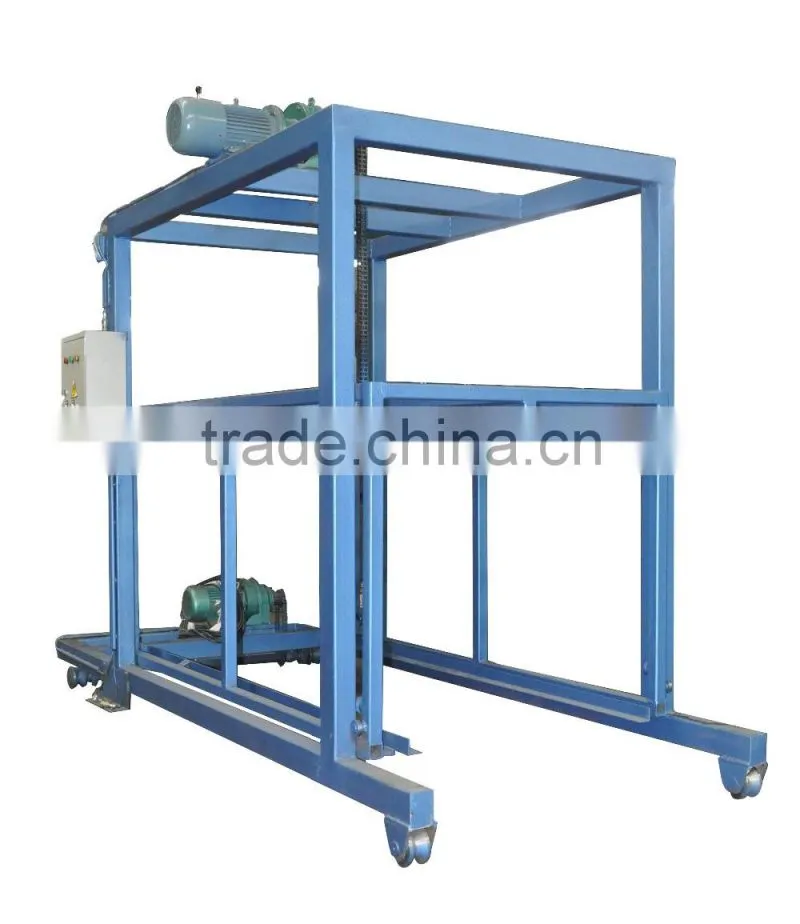

Pallet lifter machine

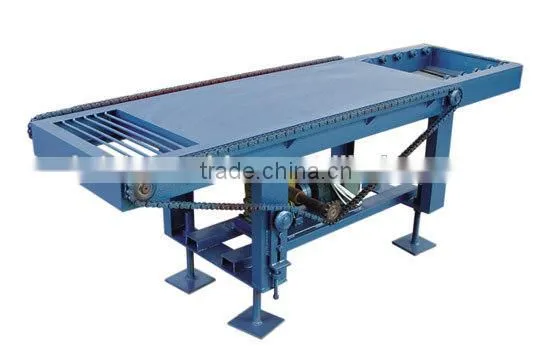

Brick receiving machine
4.we past CE and ISO9001 Certifacate for hydraulic brick making machine
5.PURCHASE CHIPS for hydraulic brick making machine
If you are interested in our brick and block machine and want to buy,pls offer follows technical data,we will be grateful to you:
1.what is your brick size (length*width*height mm)?
2.what capacity do you want per hour?
6. for cement brick making machine
