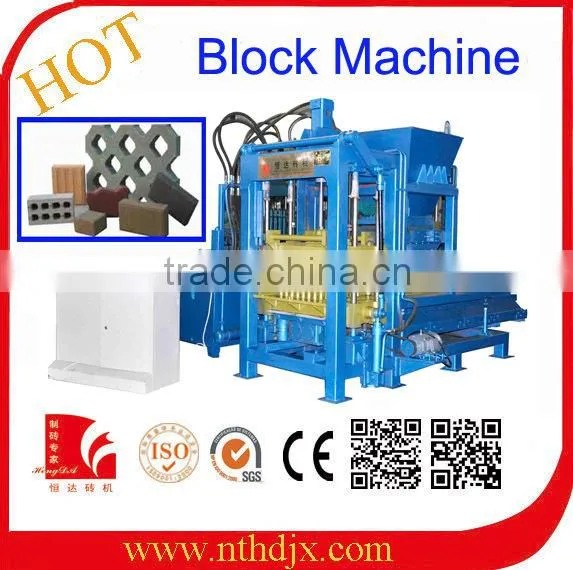

Automatic vibrated concrete block machine interlocking block machine
QT6-15 concrete interlocking block machine is hydraulic engined cotrolled by PLC. It's middle machine among all concrete block making machine models. It could produce hollow blocks, solid bricks,color paving blocks,interlockings and kerbstones by changing moulds.
1. QT6-15 concrete interlocking block machine adopts hydraulic drive to products of high strength.
2. A short molding cycle
3. PLC intelligence control realizes dialogues between human and machine. The production line, an advanced line, integrates mechanism, electricity and liquid.
4. By replacing molds, QT6-15 concrete interlocking block machine can produce different sizes of concrete blocks. .
Parameters of QT6-15 concrete interlocking block machine:
| yield | 1440 pieces/h(390 × 190 × 190mm) |
| 7200 pieces/h(240 × 115 × 53mm) | |
| size of pallet | 850 × 680 × 17mm(PVC pallet) |
| exciting force | 70KN |
| vibration frequency | 60HZ |
| forming way | table vibration and box vibration |
| control method | PLC |
| molding cycle | 15S |
| power | 36kW |
| weight | 10T |
Some auxiliary equipments with block maker price in india for reference
Batching Plant:: This is the starting point of the Production process. It consists of three loading bins and one weighing bin. It also contains blet conveyers to convey materials from loading bins to weighing bin. Batching and weighing is done by PLC control. We can load three different types of material into the loading bin.
Stacker:Stacker is used to lay the block automatically,it is high effiicent and labor saving.
Concrete Mixture Machine: All the ingredients are mixed in this mixture machine. The mixing time and speed is controlled by PLC. The inbuilt water pump adds water to the mix automatically, as per requirement.
Concrete interlocking block machine:This is the key of the production line.It can press the mixed material.It can make various hollow block,solid brick,paver brick and kerbston.

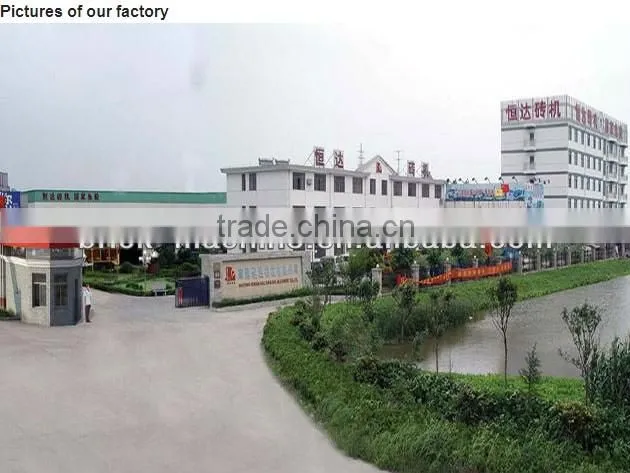

we are manufacturer of concrete interlocking block machine more than 34 year with ISO9001 &CE,our auto brick machine and concret block making machine have exported to more than 70 countries. In 2013, our company self-developed rotary tunnel kiln, which is the most adavanced kiln technology, welcome to our company inspection
Our concrete interlocking block machine, with harmonic cooperation between mechanical, electrical and hydraulic machines functions, guarantee a reliable and high output production of concrete products
A. LG PLC, with great adaptability, guarantees the stability and reliability of the machine.
B. Visualization touch screen, with easy operation;
2. Use Frequency Conversional Control Technology, which controls the block making:
A. Frequency Conversion Control: guarantees the precise and parallel movement between tamper head and mould, protects the products from transfiguration; increases the production rate by improving the vibrating efficiency;
B. Controls the instantaneous start and stop of the motors, to protect the motor from over-heating caused by constant working;
C. Power saving: 30%;
3. Use doubles high-dynamic Proportional/Directional Valves to automatically adjust the oil flow and pressure
A. Buffer the hydraulic cylinder, to protect the cylinder from damage caused by inertia;
B. Guarantee production stability;
4. 360° Multi-Shaft Rotating and Compulsory Feeding:
A. Speedy and rotating feeding, with uniform mixing, to make sure that the density and intensity of the products are guaranteed
B. This uniform feeding is applicable for different kinds of raw materials and moulds;
5. Use heat treatment on moulds and main parts of the machines:
A. Heavy duty machine structure and wear resistant moulds;
B. The hardness reaches up to HRC 52-58;
C. Greatly improves the using lifetime of the machine by 50%.
If you showed interest in our machine, you please tell me:
1.your need clay brick machine or concrete interlocking block machine?
2. your brick size and brick production?
We are professional clay brick machine,concrete interlocking block machine and PVC block pallet manufacturer, if you are interested, please come here.
