Help CenterBest Price Four Rolls DKHHJX-1300/1100 Computer Control High Speed A4 Paper Cutter Machine / Paper Cutter Machine
Related Products
-
DK-1300/1100 High Capacity Automatic Two Rolls Feeding Roll Paper Cutting Machine/ A3/A4 Paper Cutting MachineUS$ 30,000 - 100,000MOQ: 1 Set -
Hot Sale DKHHJX-1100/1300 High Quality Full Automatic Slitting And Rewinding MachineUS$ 6,000 - 40,000MOQ: 1 Set
-
Hot Sale DKHHJX-1100/1300 High Quality Best Price Slitting & Rewinding MachineUS$ 6,000 - 40,000MOQ: 1 Set
-
Fully Automatic High Speed Slitting Machine (GFQ-1300)US$ 1,000 - 1,000MOQ: 1 Set
-
High Speed Fully Automatic High Speed Slitting Machine (GFQ-1300)US$ 1,000 - 1,000MOQ: 1 Set
Specifications
A4 Paper Cutter Machine1.4-5reams/mins
2.Machine In Stock
3.PLC,Servo Motor
4.Paper Weight:70-85g/m2.
Detail of Best Price Four Rolls Computer Control High Speed A4 Paper Cutter Machine /Paper Cutter Machine
This A4 Paper Cutter Machine is suitable for all kinds of paper, paper plastic compound class, color printing compound packing material type and other large roll cut-off cut. 1. This machine adopts PLC touch screen control, servo motor, control, fixed-length cut. 2. Transmission using pneumatic, photoelectric sensors, centralized control, the machine set of light, electricity, gas one, simple, shear and high precision, mechanical stability, low noise. 3. Motor speed regulation, automatic counting, alarm stop, and magnetic tension control. Can longitudinal sections of cutting, waste side with fan automatically excluded.
A4 Paper Cutter Machine Main technical parameters:
Model |
1100 |
1300 |
Effective width |
1100mm |
1300mm |
Maximum diameter of raw materials |
Φ1400mm |
Φ1400mm |
Minimum width of vertical cut |
50mm |
50mm |
Cutting Length |
20-400mm |
20-400mm |
Cutting speed |
10-140m/min |
10-140m/min |
Cutting precision |
±0.2mm |
±0.2mm |
Total power |
19kw |
20kw |
Weight |
7000kg |
7500kg |
Dimensions(L×W×H) |
17500x1950x2000mm |
17500x2250x2000mm |
Machine key configuration:
1) 4 have ground lift shaft of paper planes, the maximum diameter of 1350mm
2) sets of tension control system
3) with anti-warp drive in aluminum roller
4) six components of tangential knives and one set of cross-cutting knife
5) low High-speed paper feeding system
6) Automatic waste discharge device
7)folder automatic sorting machinery, transport equipment
8) equipped with automatic stop device off paper
9) PLC to make paper counting device
10) PLC process control system and touch screen click data parameter system
11) four photoelectric eye correction system
12)Four rolls of vertical and horizontal cut at the same time.
Skype: ritayuan99

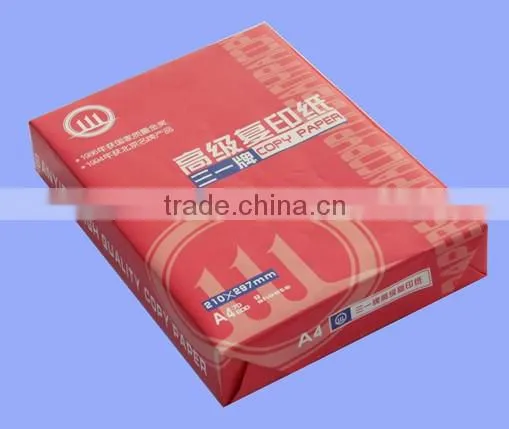

Paper Samples
The Automatic Storing : High Capacity

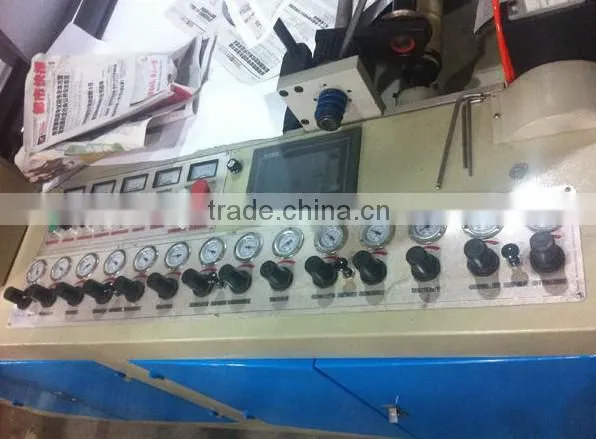

Electric Error Controller :
Round Knife and Flat Knife For Cross Cutting And Length Cutting: with Servo motor control

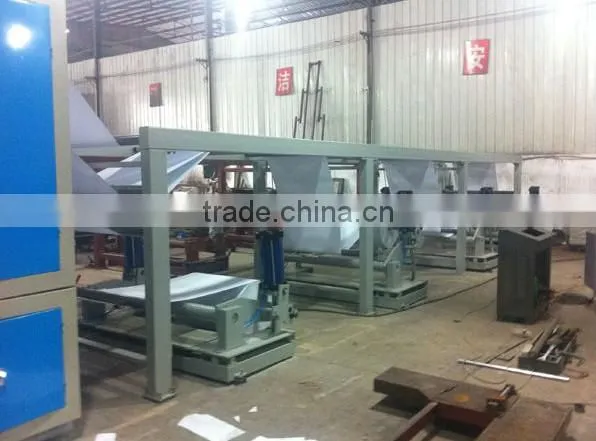

A4 Paper Cutter Machine Real Pictures:

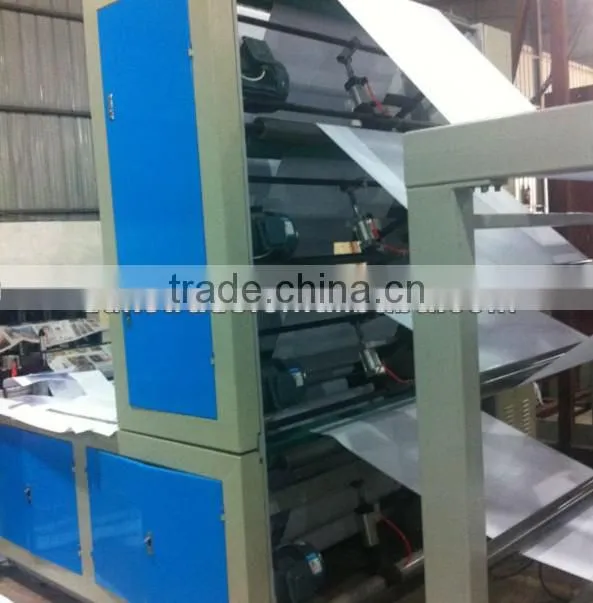

Four Rolls Material Feeding : 4-5reams/mins
Two Roll Feeding : 2-3 reams/mins
One Roll Paper Material Feeding: 1-2 reams/mins
Our Services:
we will send technician to install and training your work after the machine arrived your factory,another questions about machine can talk with me online,we will solved it within 2days.
Packaging & Shipping :
In normal we use the stretch film for simple package . If the customer required we also can use the wooden box pacakge .
Package details:
A4 Paper Cutter Machine In stock , welcome contact me or visit us anytime
FAQ:
1.Q:Are you a factory or trade company?
R:We are a factory & Trade company.
2.Q:Where is your company located?How can I visit there?
R:Our company is located in Ruian City,Wenzhou area,Zhejiang province,China.
About 1 hour by plane from Shanghai to Wenzhou,then 1 hour taxi to our place(5 hours by fast
train to Ruian station)
3.Q:what is the raw material does the machine ?
R:the material is Four Rolls Paper
4.Q:who can answer my urgent questions about the machine?
R:leave a message when I am not online,will reply you within 24hours.
5.Q:how does your factory do regarding quality control?
R:our company policy is “quality first,customer first”.we have a QC manager whom check
the machine making from beginning to the end.
