Specifications
1.High Speed Sealing Machine2.150*4pcs/minute
3.sevor motor control
4.Have stockage every month
Suitable For: HDPE, LDPE,PP, recycled plastic material, biodegradable material
Computerized Yes
Functions and Features:

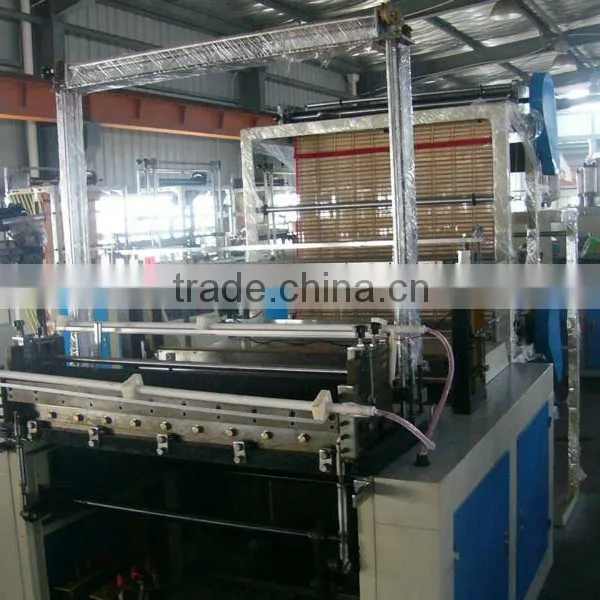

1. This machine is designed to produce heat sealing&cold cutting bags, such as flat-end bags,suitable for making small bags.
2. The whole machine is controlled by servo motor, thus the material will be conveyed smoothly and quickly.
3. With six production lines, the production capacity will be improved greatly.
4. With Germany brand “SICK” electric eyes, it has advantages of great quality, sensitive to colors, catching colors accurately.
5. The whole machine adapts computer control system to set the bag length, production speed, thus can reduce the waste and save cost; feeding material, counting and sending out material automatically; the machine will alarm automatically when the machine is out of work, therefore it will be safter to operate.
Standard Fittings:
Fittings |
PLC PLC |
Servo Motor |
Human-Machine Interface |
Frequency Converting |
Electric Eye |
Brand |
MITSUBISHI |
YASKAWA |
WEINVIEW |
EURA |
SICK |
Original Country |
Japan |
Japan |
Taiwan |
Sino-U.S. |
Germany |
Main Technical Parameters:
Model |
FQ-6L-500 |
FQ-6L-700 |
FQ-6L-800 |
FQ-6L-900 |
FQ-6L-1000 |
FQ-6L-1200 |
Max.Bag Width(mm) |
250×3 |
350×3 |
400×3 |
450×3 |
500×3 |
600×3 |
Max.Bag Length(mm) |
40-1300 |
100-1300 |
100-1300 |
100-1400 |
100-1400 |
100-1400 |
Bag Thickness(mm) |
0.02-0.20 |
0.02-0.20 |
0.02-0.20 |
0.02-0.20 |
0.02-0.20 |
0.02-0.20 |
Speed(pcs./min.) |
(30-150)×6 |
(30-150)×6 |
(30-150)×6 |
(30-120)×6 |
(30-120)×6 |
(30-100)×6 |
Total Power(kw) |
3.7 |
4.0 |
4.2 |
4.3 |
4.5 |
4.7 |
Size(L×W×H)(m) |
3.5×1.16×2.0 |
3.5×1.36×2.0 |
3.5×1.46×2.0 |
3.5×1.56×2.0 |
3.5×1.66×2.0 |
3.5×1.86×2.0 |
Weight(kg) |
1500 |
1800 |
1950 |
2050 |
2150 |
2450 |
