Help CenterGBD-700 6 Lines Plastic Bag Making Machine
Related Products
-
GBD-1000 Cold Cutting Bag Making MachineUS$ 4,800 - 10,000MOQ: 1 Set -
DFHQ-450X2 Automatic Bag Making MachineUS$ 9,500 - 50,000MOQ: 1 Set
-
GBDE-700 Automatic Punghing Plastic Shopping T-shirt Bag Making MachineNegotiableMOQ: 1 Set
-
GBDE-700 Automatic Plastic Bag Making MachineUS$ 8,000 - 10,000MOQ: 1 Set
-
GBDE-600 Model Four Lines High Speed PE T-shirt Bag Cutting Bag Plastic MachineNegotiableMOQ: 1 Set
Specifications
1.6 Lines Plastic Bag Making Machine2.High speed 80*6pcs/minute
3.sevor motor control
4.100-2000mm
4.Have stock

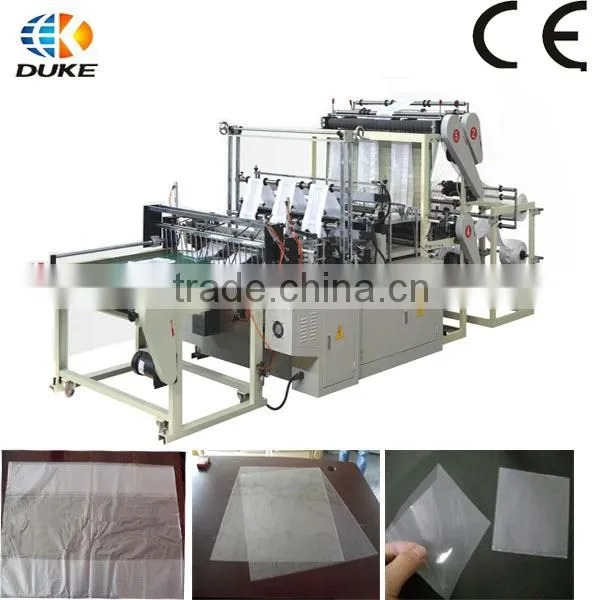

6 Lines Plastic Bag Making Machine Use:
GBD FLAT-BOTTOMED & VEST BAG MAKER. The equipment is designed and manufactured on the basis of overseas advanced technology as well as domestic leading product of the same kind. As a fully automatic computer-controlled bag maker, it is mainly used to manufacture bags with films like PE, PP, PVC, etc. Equipped with various functions, such as photoelectric controlled automatic feeding, photoelectric color-code follow-up, double or quadruple feeding, double or quadruple sealing, motor speed and bag length control by computer, automatic pile-up, etc. This machine is an ideal one to produce vest bag, flat-bottomed bag and fertilizer bag.
6 Lines Plastic Bag Making Machine Technical Parameters:
Model |
GBD-600 |
GBD-700 |
GBD-800 |
GBD-900 |
GBD-1000 |
width (mm) |
580 |
680 |
780 |
880 |
980 |
length (mm) |
700 |
1200 |
1200 |
1400 |
1600 |
speed of bag-making (pc/min) |
(60-120)*6 |
(60-120)*46 |
(60-120)*6 |
(60-120)*6 |
(60-120)*6 |
Number of strip(pc) |
6 |
6 |
6 |
6 |
6 |
Power of motor(kw) |
1.5 |
2.2 |
3 |
5 |
5.5 |
Weight(kg) |
500 |
800 |
850 |
900 |
1000 |
Outine dimension(L x w x h)mm |
3.2×1.2×1.7 |
3.5 x 1.3 x 1.7 |
3.5 x 1.3 x 1.8 |
3.7 x 1.6 x 2.0 |
3.8 x 1.8 x 2.1 |
Skype: Ritayuan99
Plastic Bag Making Machin Optional Device:

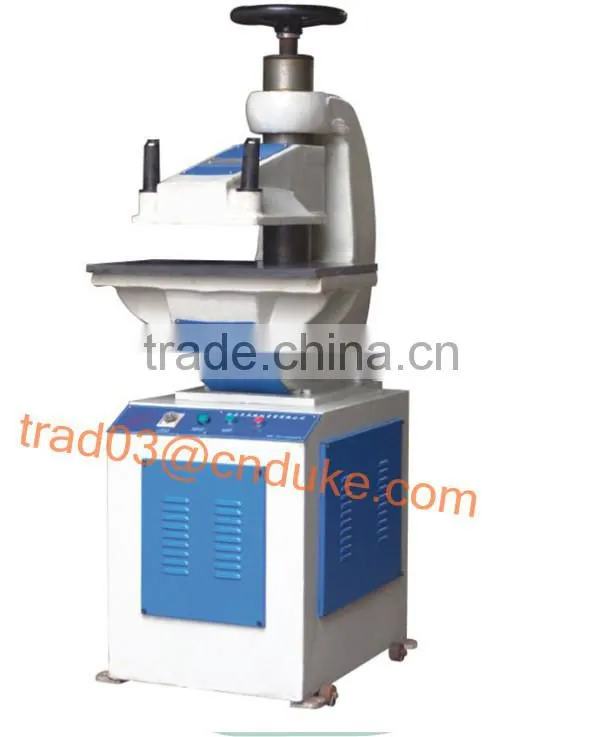

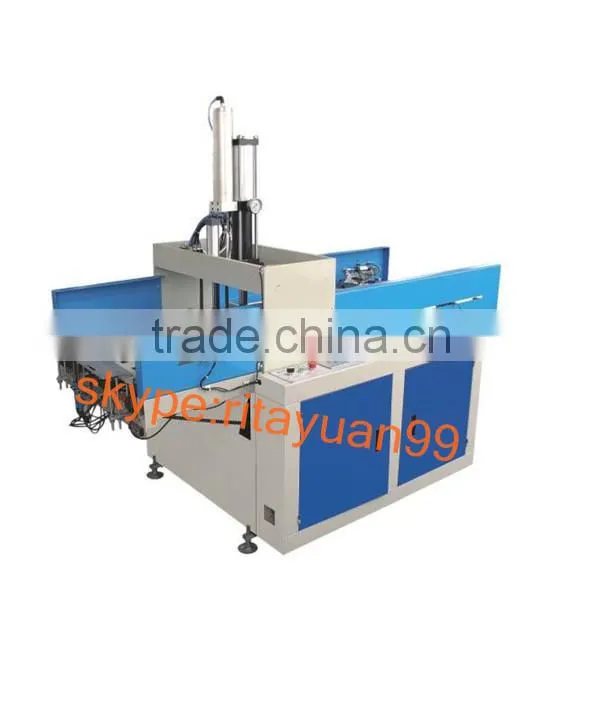

Hydraulic Punching Machine

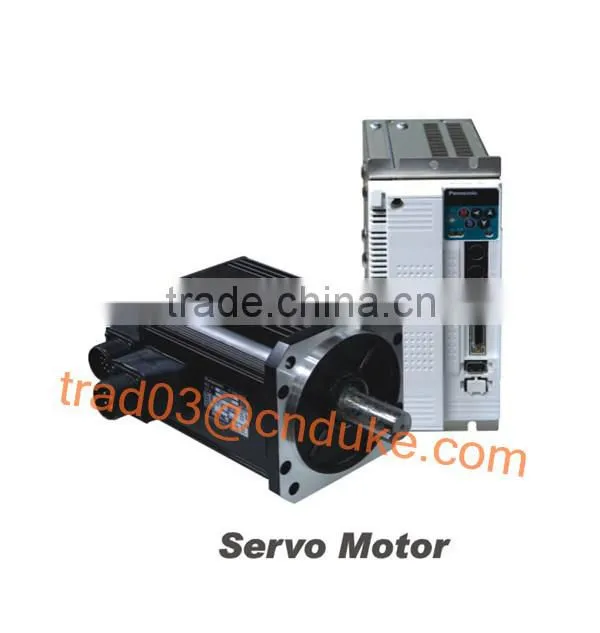

Plastic Bag Making Machine Servo Motor:
Flat Bag Usuage:
6 Lines Flat Bag Making Machine Detail Parts Pic :

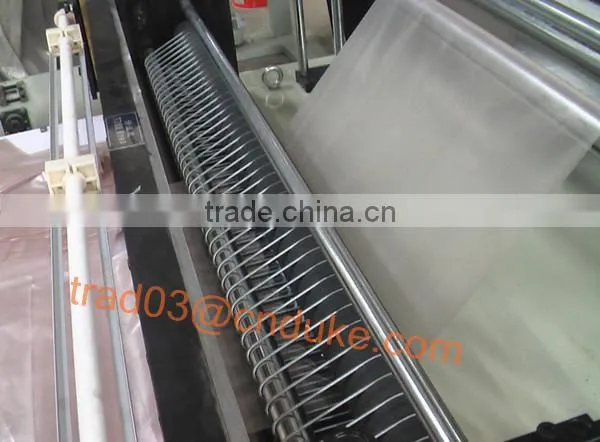

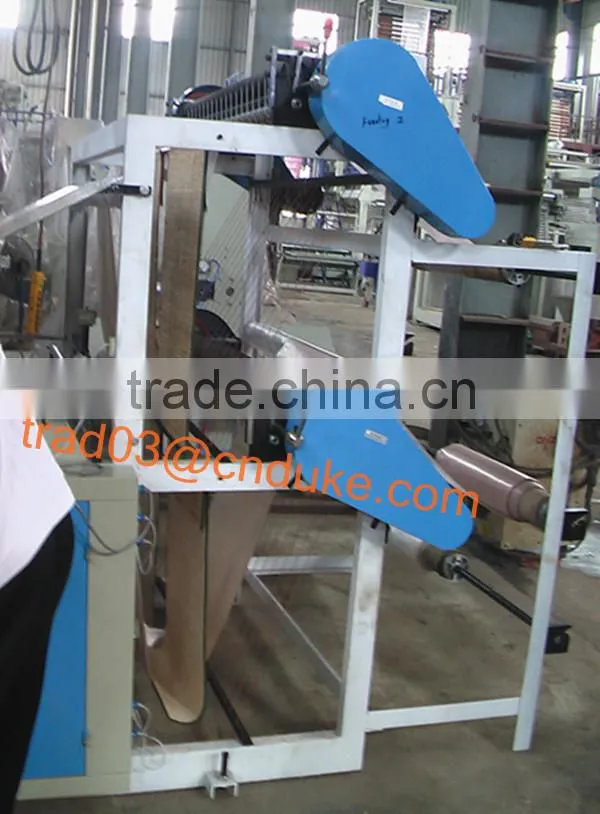

Plastic Bag Making Machine Feeding Part

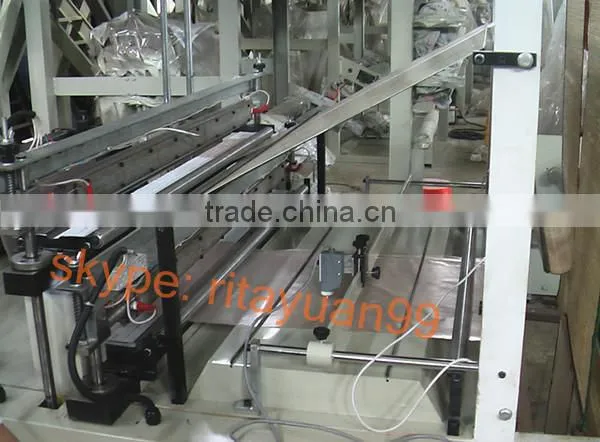

Bag Machine Sealing Unit

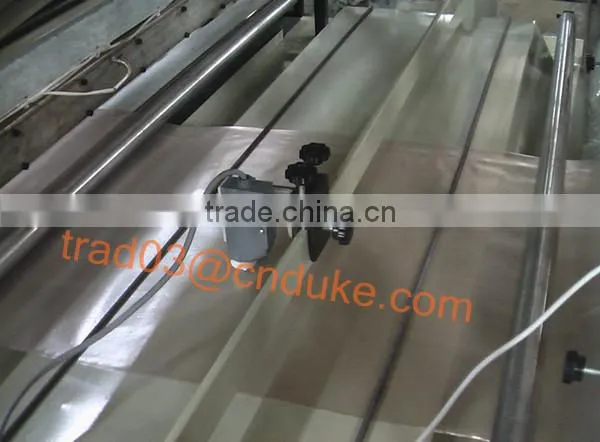

photoelectric color-code follow-up

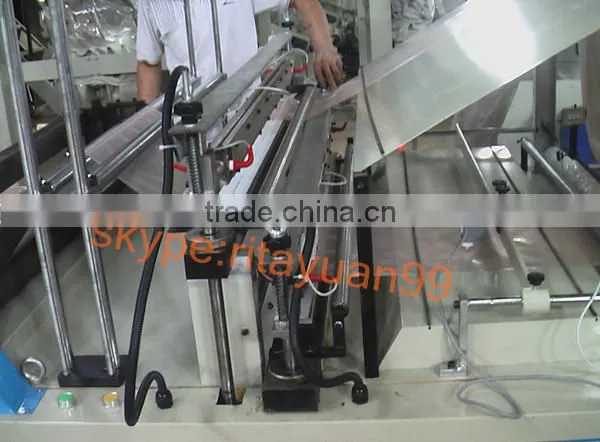

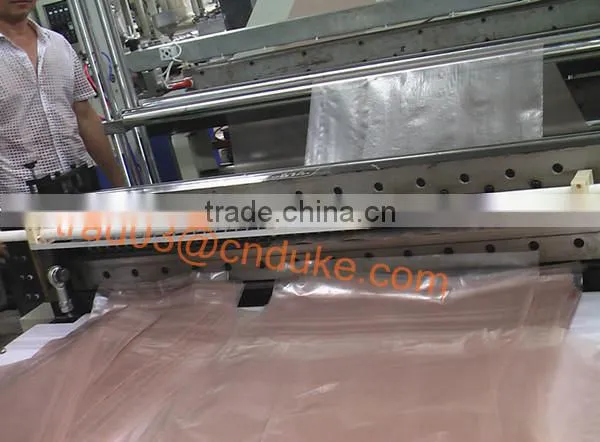

Plastic Bag Making Machine Cutting Unit:
Finished Flat Bag Samples:

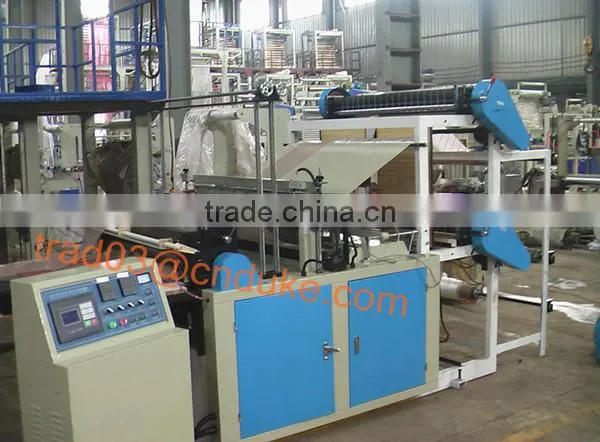

Four Lines Plastic Bag Making Machine

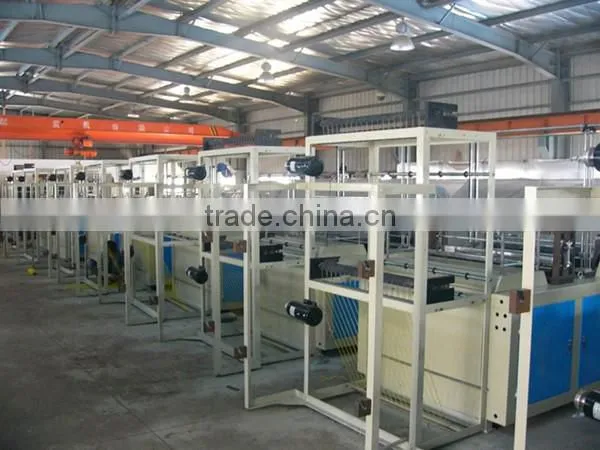

Bag Making Machine Workshop:
