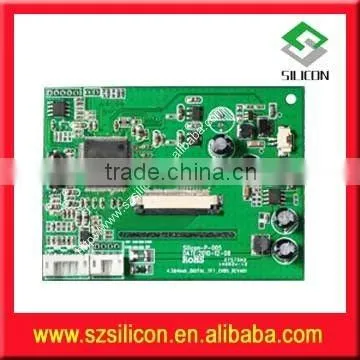

Help CenterSmart 4'' Lcd Digital Pannel
Related Products
Specifications
1.Smart 4'' lcd digital pannel2. Use for display equipment
3. Input signal: CVBS
4. datasheet: yes
1) Product Name: 4'' lcd digital pannel
2) Product number: Silicon-P-005
3) Backlight: LED
4) Resolution:320x(RGB)×234
5) View Angle(up/down/left/right): 60/70/75/75
6) Brightness:> 220Cd/m2
7) Input signal: CVBS
8) System format: PAL/NTSC(Auto switch)
9) Adjust model: Menu adjust
10) Power Supply Input: DC 10-18V
11) Rated power: 2.5W
12) Display Dimension of LCD(mm): 70.08(H)X 52.56(V)
13) Overall Dimension of LCD(mm): 76.9(W)x 63.9(H)x 2.8(D)
14) PCB Structural dimension(mm):88.0(W)×58(H)×6.8(D)
15) Operating Temperature: -20~+70 °C
16) Relative Humidity:5~95% RH
17) Storage Temperature: -30~+80°C
18) Customize: Free for customer ordering starting LOGO, accepts order the CABLE lines
19) Packing: 60pcs/Box
