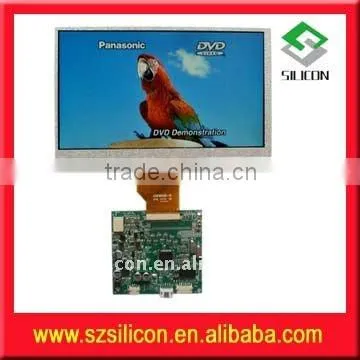

7'' lcd analog pannel
- FOB Shenzhen
- Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | Silicon | |
| Model Number | Silicon-P-002 | Type | TFT |
Product Description
Specifications
1.7'' lcd analog pannel2. Use for display equipment
3. Input signal: CVBS
4. datasheet: yes
1) Product Name: 7'' lcd analog pannel
2) Product number: Silicon-P-002
3) Backlight: LED
4) Resolution:480x(RGB)×234
5) View Angle(up/down/left/right): 50/55/60/60
6) Brightness:> 250Cd/m2
7) Input signal: CVBS
8) System format: PAL/NTSC(Auto switch)
9) Power Supply Input: DC 9V-15V
10) Rated power: 2.5W
11) Adjust model: Menu adjust
12) PCB Structural dimension(mm):82(W)×50(H)×7(D)
13) Overall Dimension of LCD(mm):164.9(W)×100(H)×5.5(D)
14) Screen size(mm): 156 (H)* 89(V)
15) Operating Temperature: -20~+70 °C
16) Relative Humidity:5~95% RH
17) Storage Temperature: -30~+80°C
18) Customize: Free for customer ordering starting LOGO, accepts order the CABLE lines
19) Packing: 60pcs/Box
