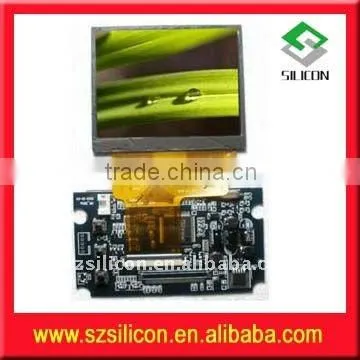

3.5'' Lcd Digital Pannel

Specifications

 1)         Product Name: 3.5''  lcd digital pannel

2)      Product number: Silicon-P-008

3)         Backlight: LED

4)         Resolution:320x(RGB)×240

5)         View Angle(up/down/left/right): 50/55/60/60

6)         Brightness:> 300Cd/m²

7)        Input signal: CVBS

8)         System format: PAL/NTSC(Auto switch)

9)         Adjust model: Menu adjust

10)     Power Supply Input: DC 9V-15V

11)     Rated power: 2.5W

12)     Display Dimension of LCD(mm): 70.08(H)X 52.56(V)

13)     Overall Dimension of LCD(mm): 76.9(W)x  63.9(H)x 2.8(D)

14)     PCB Structural dimension(mm):88.0(W)×58(H)×6.8(D)

15)     Operating Temperature: -20~+70 °C

16)     Relative Humidity:5~95% RH

17)     Storage Temperature: -30~+80°C

18)     Customize: Free for customer ordering starting LOGO, accepts order the CABLE lines

19)     Packing: 60pcs/Box
