7 inch Color TFT-LCD (Analog Panel) 480*234
- 10000 Piece / Pieces per Month
- Credit Card
- negative segment character running machine lcd display,practical STN,blue backlight, fitness equipment
- digital fire alarm installation module display, HTN segment display with blue led lcd panel
- negative autoreclose circuit-breaker lcd display, segment module with blue led
- charger negative character lcd display,white led ,battery segment small flexible display
- character small charger lcd display ,custom battery display ,white led
- segment positive temperature time clock lcd display,blue TN white backlight
Product Details
Place of Origin: | Guangdong, China | Brand Name: | CPT | Model Number: | CLAA070JA0BCW |
Type: | TFT |
Product Description
Specifications
1, Size: 7"2, Model: CLAA070JA0BCW
3, Grade: A+, New
4, Payment: Paypal, T/T

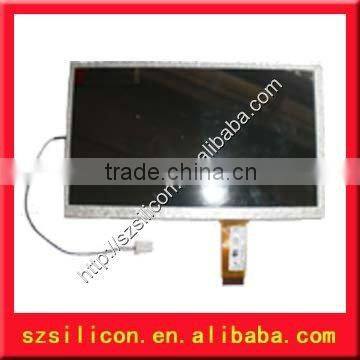

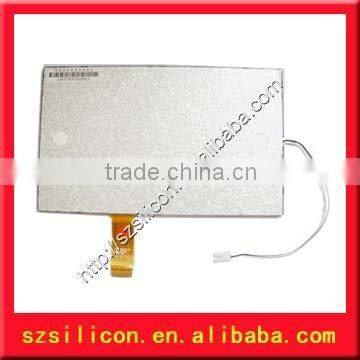

7 inch Color TFT-LCD (Analog Panel)
CLAA070JA0BCW is 17.67cm( 7") color TFT-LCD (Thin Film Transistor Liquid Crystal
Display) module composed of LCD panel, driver ICs, frame and LED backlight.
The 17.67cm( 7") screen produces 480(*3)X234 WQVGA resolution image. By applying
R.G.B. input signal, full color images are displayed.The driver IC for LED backlight is not
included in this module.
General specifications are summarized in the following table:
ITEM | ECIFICATION |
Display Area (mm) | 154.08 (H) × 86.58 (V) |
Number of Pixels | 480(H) × 3(RGB)× 234(V) |
Pixel Pitch (mm) | 0.321(H)×0.37(V) |
Color Pixel Arrangement | RGB vertical stripe |
Display Mode | Normally white,TN |
Number of color | Full color |
Viewing Direction | 6 o'clock |
Brightness(cd/M2) | 450 (Typ.) |
Power Consumption(W) | 1.52 (Typ.) |
Outline Dimension(mm) | 164.9(W) × 100.0(H) × 5.7(D) |
module weight(g) | 145 (Typ.) |
BL unit | LED (* 18 pcs) |
Surface Treatment | Anti-Glare |
