Best Soldering Machine Three Heating Bga Rework Station for Lenovo G580 Laptop Motherboard

Shenzhen Shuttle Star Industrial Co., Ltd.
Best Soldering Machine Three Heating Bga Rework Station for Lenovo G580 Laptop Motherboard thumbnail-1
Best Soldering Machine Three Heating Bga Rework Station for Lenovo G580 Laptop Motherboard photo-1
US$ 1 - 1 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Shuttle Star
Model Number:
SP380II
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen/Hongkong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Shuttle Star
Model Number SP380II
Voltage 220V, 220V
Current 10A
Rated Capacity 4kw
Rated Duty Cycle 100%
Dimensions L670*W585*H620mm
Weight 60kg, 60kg
Usage BGA Rework, motherboard chip repair
Certification ISO9001, ISO9001
After-sales Service Provided Engineers available to service machinery overseas

  Best soldering machine three heating bga rework station for lenovo g580 laptop motherboard



Product Description

 Specification



Applicable PCB SizeW50mm*D50mm~W430mm*D350mm
Applicable BGA Size7mm*7mm~55mm*55mm
Max BGA Weight80g
Upper heater(Hot Air)600w
Lower heater(Hot Air)800w
Bottom Preheat IR heater2400w
Machine Dimension650mm*500mm*600mm
Machine Weight36KG
Power supplyAC 220V 4KW



Best soldering machine three heating bga rework station for lenovo g580 laptop motherboard

Three temperature zone of our BGA rework station:



1) Top hot air heater



2) Bottom hot air heater

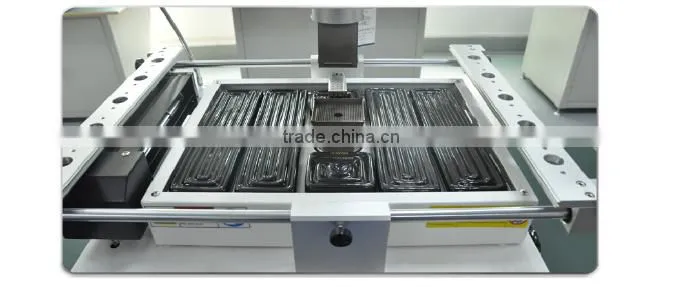

3) Bottom IR preheat

Best soldering machine three heating bga rework station for lenovo g580 laptop motherboard

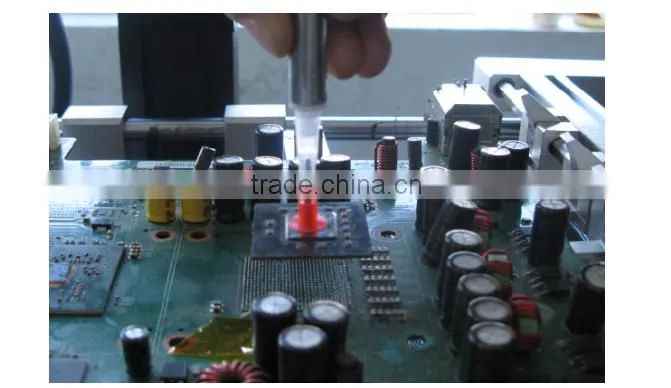

Equipped with vacuum pen to pick up BGA



Best soldering machine three heating bga rework station for lenovo g580 laptop motherboard

Best soldering machine three heating bga rework station for lenovo g580 laptop motherboard

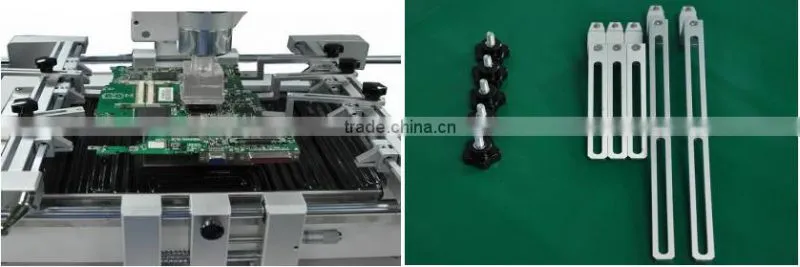

Special clapms help to fix the PCB motherboard



Best soldering machine three heating bga rework station for lenovo g580 laptop motherboard

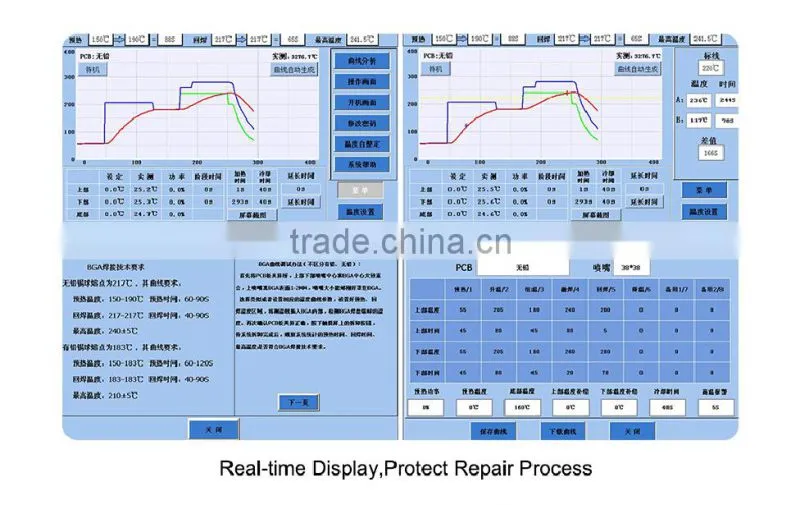

Real-time temperature curve can be displayed on operation interface

Best soldering machine three heating bga rework station for lenovo g580 laptop motherboard

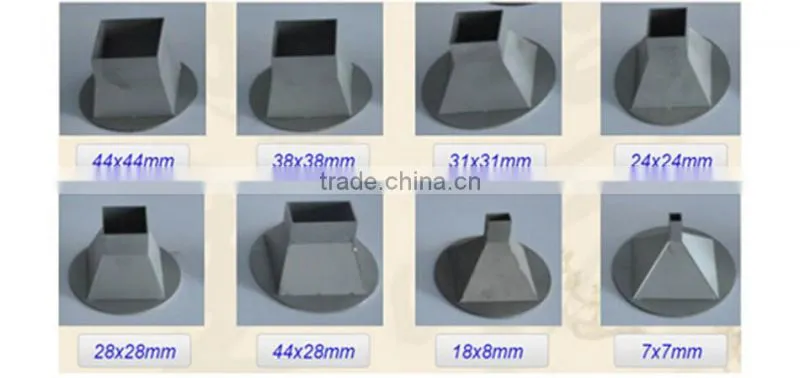

 With different alloy hot gas nozzles, suit for different kind of BGA



Best soldering machine three heating bga rework station for lenovo g580 laptop motherboard





 Other Features

 1. Made of high quality heating material; desoldering and soldering procedures of BGA are precisely      controlled;

 2. Movable heating head, which is able to move freely horizontally, easy to operated;
 3. Embedded industrial computer, PLC control, real-time profile display, able to display set profile
 and practically-tested profile; big size screen, easy to operate;
 4. Profile saving no limit in this industrial computer, can analyze the two practically-tested profiles,
 can input both English and Chinese;
 5. The temperatures of the upper and lower hot air heaters can be precisely controlled according to
  their specific temperatures. The infrared constant temperature heating zone at the bottom area and
  the appropriate temperature-control settings make the rework safer and more reliable.
 6. The supports for the BGA soldering supporting frame are micro-adjustable to restrain local  sinkage.
 7. Powerful cross flow fans cool the lower heating area rapidly;
 8. The adjustable PCB positioning support, onto which the special fixtures for alloyed board could be    installed,enables easy and fast positioning of the PCB board;
 9. Buzz after soldering is finished or desoldering; Hand vacuum pen is adjustable for removing BGA;
10.Both the upper and lower parts are equipped with over-temperature alarming and protection  apparatus.
11.With different alloy hot gas nozzles, easy to replace. It could be tailored as per the specific requirements.
12.The integrated design of machine and chassis is room-saving. could be altered to instrument-control.
13.The software can be updated to auto-profile in future by USB, no need to set profiles.





Company Information

  Shuttle star industrial Co.,Ltd ,the company expert in bga rework station for 17years,  the reliability and technology deposit are all recognized at home and abroad,so if you are  looking for bga rework station, we are definitely your best choice.



Best soldering machine three heating bga rework station for lenovo g580 laptop motherboardBest soldering machine three heating bga rework station for lenovo g580 laptop motherboard







Packaging & Shipping

1, All machines will be packaged in wooden box if the buyers ask no special demand.

2, It is free shipping in mainland.

3,Shipping by DHL,UPS,TNT,EMS,by air or sea,we will choose the best for you.

Best soldering machine three heating bga rework station for lenovo g580 laptop motherboard

Our Services

 1, Warranty: one year.

 2, Service hot line: 24 hours all round year

 3, Spot goods: 3 million sets.

 4, Delivery date: with 7 business days after receiving the payment.

 5,Payment terms: Bank Transfer,Paypal,West Union,T/T,etc.



If you want to konw more,please contact us.

Thanks for your time!
