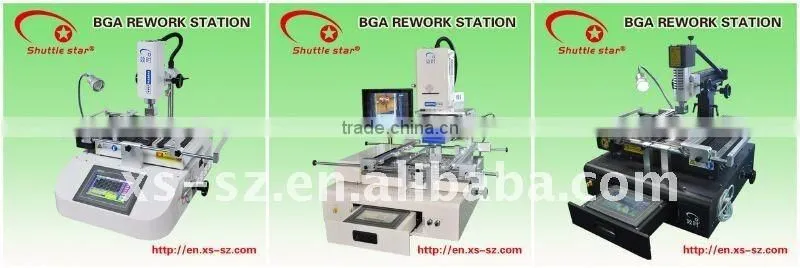

Drying machine bga rework station for XBOX PS2 PS3 X360 laptop mainboard repair reballing
specifications
| PCB Size | W50*D50~W450*D400 |
| PCB Thickness | 0.5~3mm |
| Working table adjustment | +/-50mm forward/backward,+200mm left/right |
| Temperature Control | K-type thermocouple,close cycle controlled |
| PCB locating way | JIG |
| Upper heater | hot air 600W |
| Bottom heater | hot air 800W |
| Bottom preheat | IR 2700W |
| Power Supply | Single-phase 220V,50/60Hz,4KW |
| Machine size | L660*W630*H600 |
| Machine weight | 60.0kg |

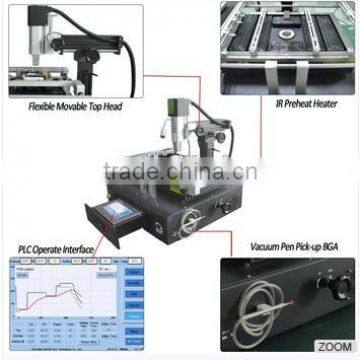

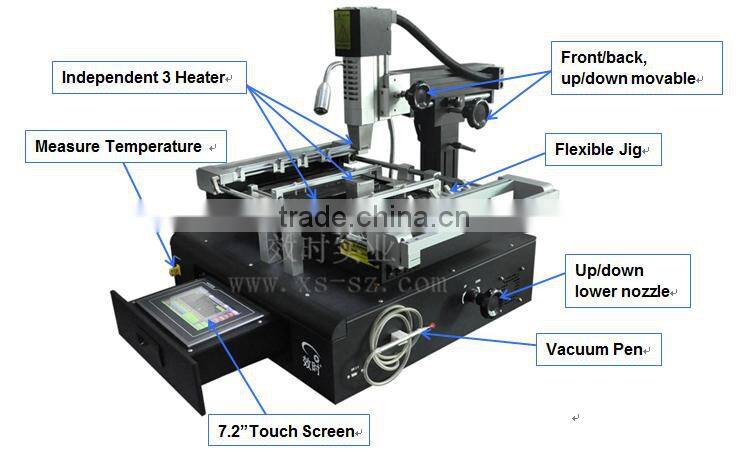

Illustration
Detail Show
Three temperature zone
1.Top hot air heater (600W)
2.Bottom hot air heater (800W)
3. Bottom IR preheat - Prevent PCB board deforming (2700W)

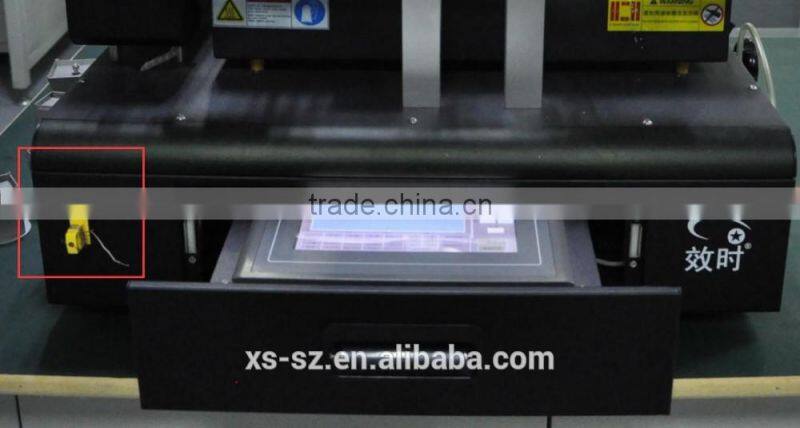

Thermocouple – measure temperature
Choose high accurate K type close-loop thermocouple, measure BGA chip temperature ,
So that we can adjust temperature when we found temperature difference is bigger

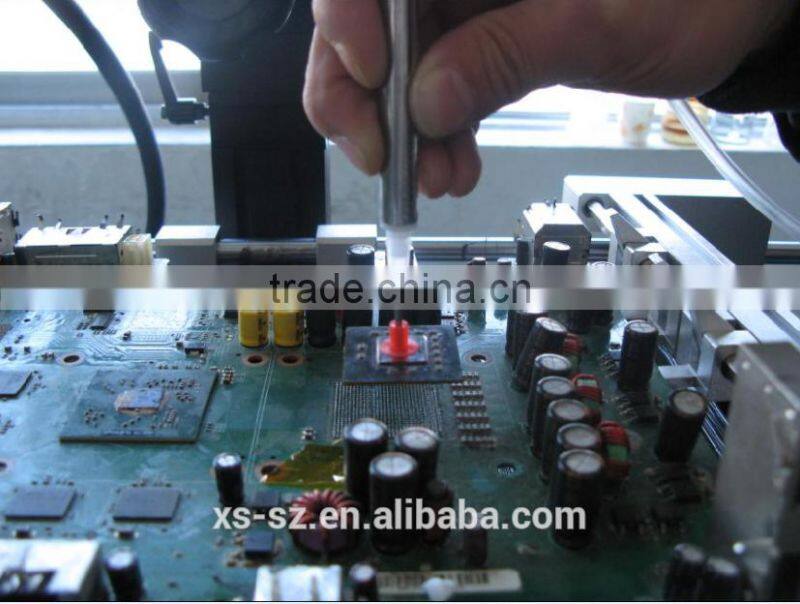

Vacuum Pen

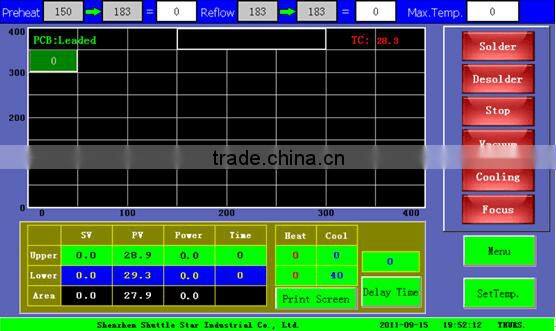

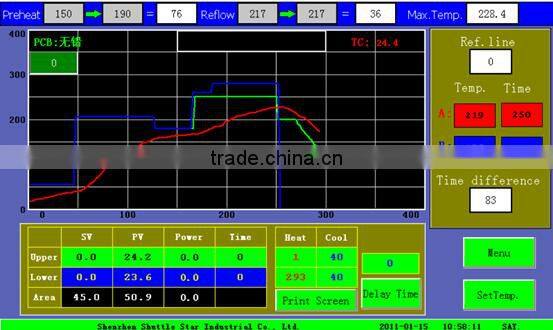

Touch Screen Operation Interface
1.Adopt high definition human-machine interface, easy operation
2.Setup heating temperature curve and analysis it
3.Real-time temperature curve can be displayed on operation interface
4.Real-time monitor LEAD/LEAD FREE solder ball melt temperature change,
adjust temperature curve and unlimited save temperature curve for later use
nozzle
Nozzle size or custom-made for customers to choose
Main Features
1.Soldering, Desoldering, Romoving and Mounting the BGA Chip by Manual operation
2.Widely used to Rework CPU GPU of laptop,PS3,PS4,XBOX360, etc.
3.User-friendly Touch Screen Operation Interface
4.Rework BGA, CCGA, QFN, SMD, etc
5.Up / Bottom Hot air heaters, and Bottom Infrared Heating Plate
6.Superior Safety Functions, with Emergency protection
Accessories show
Shuttle star industrial Co.,Ltd ,the company expert in bga rework station for 17years,the reliability and technology deposit are all recognized at home and abroad,
High quanlity assurance is our task and also what we are doing now. so if you are looking for bga rework station,we are definitely your best choice.
Certifications
All of our ic replacement Station is approved by CE and ISO Certification.
Customers Visit
Some customers from home and abroad come to visit our factory, we arrange the technician to show the machine operation.
Free training is available, many oversea customer train in our factory. Warmly welcome you to visit our factory !
1.Shuttle Star will offer free training on operating personnel and service within the warranty, but all the travelling cost and relative cost will be on the buyer’s account if incurred.
2. Shuttle Star offers free lifelong maintenance in our office and training for maintenance.through telephone, email and online webcam.
3. Under warranty, Shuttle Star sends spare parts to the customer and affords all the cost and freight ifany spare part is broken.
4. Beyond warranty, Shuttle Star charges for the spare parts and the freight for shipping will be on the buyer’s account if customer needs our spare parts.
Shipping
DHL, UPS, TNT, EMS,By Sea,By Air,we will choose the cheapest for you.
1, All machines will be packaged in wooden box if the buyers ask no special demand.
2, It is free shipping in mainland.
3,Shipping by DHL,UPS,TNT,EMS,by air or sea,we will choose best for you.
We suply many kinds of BGA Rework Station with top quality and
best price ,If you have any more needs , welcome to contact us .
