Shuttle Star RW-SV550 ccd camera BGA repair machine for samsung galaxy note n7000 motherboard
Specification
| PCB Size | W20*D20 ~ W550mm x D500mm |
| Workable area | W550*D500mm |
| PCB Thickness | 0.5~ 0.25mm |
| Applicable BGA | 1*1~70*70mm |
| Working table adjustment | Front/Rear ± 120mm, Left/Right ± 80mm |
| PCB locating way | Outer |
| Temperature Control | K-Type Thermocouple,Close Cycle Controlled |
| placement precision | ±0.01mm |
| Min pitch of bga ball | 0.15mm |
| Gross power | 5600W |
| Bottom IR Preheat | 3600W |
| Top heater | 1200W |
| Bottom heater | 800W |
| MAX BGA weight | 80g |
| Power supply | Single Phase, 220VAC, 50/60 Hz |
| Machine dimension | L850*W750*H630mm |
| Weight | Approx 80kg |

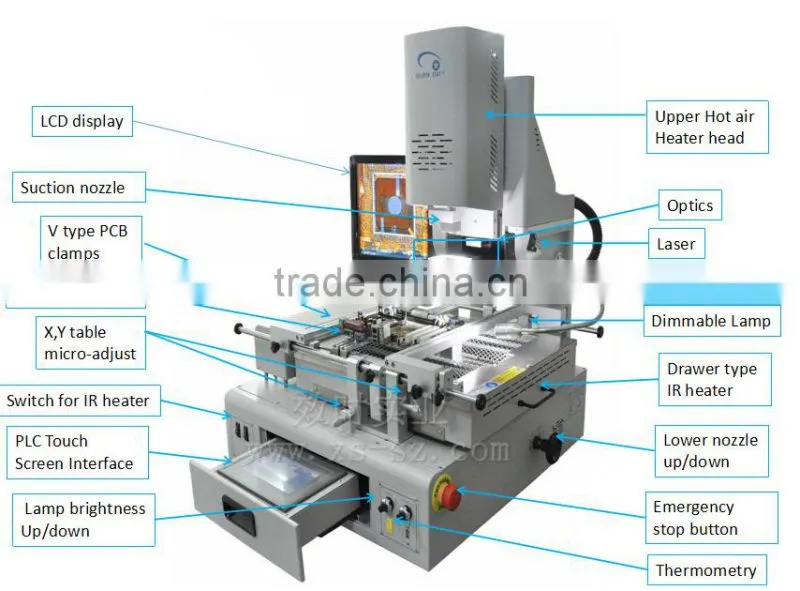

Illustration
Features
*Hot air heater head and mounting head are designed 2 in 1, driven by step
electric motor, have both the auto soldering and mounting function;
*Three heaters( upper/lower hot air heater, bottom IR heater) heating
independently, time and temperature can be displayed digitally on touch screen;
*Upper heater is movable, convenient for operation;
*Large movable bottom IR heating area, PCB clamps can be adjusted along with
X& Y table flexibly, the max PCB size it can handle up to 550×500mm;
*Powerful cross flow fans cool the bottom heating area rapidly with stable speed.
*Color optical system with functions of split vision, zoom in/out and micro-adjust,
equipped with aberration detection device; with auto focus and software
operation function, 27 X optical focus, able to rework BGA sized up to
70×70mm;
* Embedded industrial computer, touch screen interface, PLC control, real-time
profile display, able to display set profile and 5 practically tested profile at the
same time; can analyze the five practically-tested profiles, and compare them
with the history saved profiles;
*Color LCD monitor; big size screen, easy to operate; Connect USB mouse, easy
to operate
*Built-in vacuum pump; 60 °rotation in φ angle, mounting nozzle is
micro-adjustable;
*8 segments of temperature up(down) and 8 segments constant temperature
control, profile saving is unlimited in the industrial computer;
*Suction nozzle can identify material and mounting height automatically, and can
control the air pressure within a small range;
*Equipped with different hot air nozzles, easy to replace and able to locate in any
angle;
*Can handle 775 socket, 478 socket, XBOX360, PS2/3 CISCO Sever etc.
Detail Show

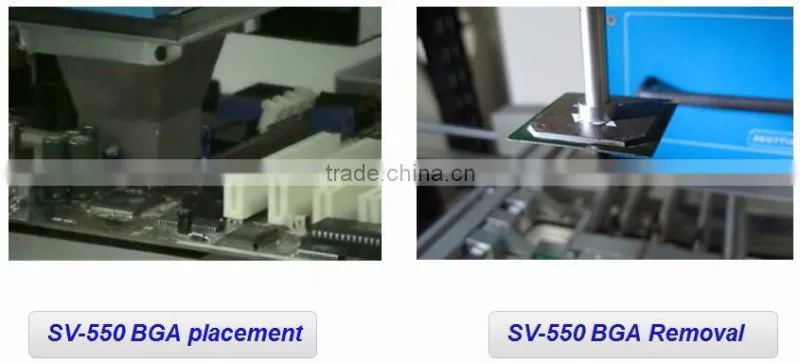

Alignment & placement
Color optical system with functions of split vision, zoom - in and micro-adjustment, equipped with aberration detection device;
with auto focus and software operation function,27X optical focus, applying the prism optical principle
to make both up and down image clear and accurate.
Heating system
Three independent temperature zones, (top hot air heating, under hot air heating, and bottom IR heating), temperature and time can be displayed digitally on the touch screen, able to rework CGA
Clamping device
Specially designed with flexibly-moving clamping device to clamp all kinds of PCB, also equipped with particular clamps for laptop motherboard
Control interface

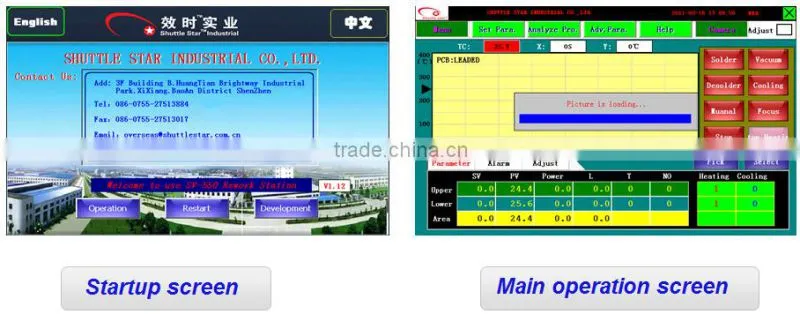

RW-SV550 with touch screen interface, PLC control; able to display real-time temperature curves and detecting temperature curves at the same time
Hot air head and mounting head are designed 2 in 1, and have both the auto soldering and mounting function, easy to operate
Nozzle
Different-sized nozzles for different-sized BGAs,for particular component, nozzle can be custom-made.
Accessories show
1.Shuttle Star will offer free training on operating personnel and service within the warranty, but all the travelling cost and relative cost will be on the buyer’s account if incurred.
2. Shuttle Star offers free lifelong maintenance in our office and training for maintenance.through telephone, email and online webcam.
3. Under warranty, Shuttle Star sends spare parts to the customer and affords all the cost and freight ifany spare part is broken.
4. Beyond warranty, Shuttle Star charges for the spare parts and the freight for shipping will be on the buyer’s account if customer needs our spare parts.
Shipping
DHL, UPS, TNT, EMS,By Sea,By Air,we will choose the cheapest for you.
How long judge by the city.
Shuttle star industrial Co.,Ltd ,the company expert in bga rework station for 17years,the reliability and technology deposit are all recognized at home and abroad, High quanlity assurance is our task and also what we are doing now. so if you are looking for bga rework station,we are definitely your best choice.
Certifications
All of our ic replacement Station is approved by CE and ISO Certification.
Customers Visit
Some customers from home and abroad come to visit our factory, we arrange the technician to show the machine operation.
Free training is available, many oversea customer train in our factory. Warmly welcome you to visit our factory !
1 , All machines will be packaged in wooden box if the buyers ask no special demand.
2, It is free shipping in mainland.
3,Shipping by DHL,UPS,TNT,EMS,by air or sea,we will choose best for you.
We suply many kinds of BGA Rework Station with top quality and best price , If you have any more needs , welcome to contact us .
