Specifications
BGA rework station RW-SV550Semi-auto with optical alignment system;
Electric-motor controlled
Color LCD monitors
3 heaters

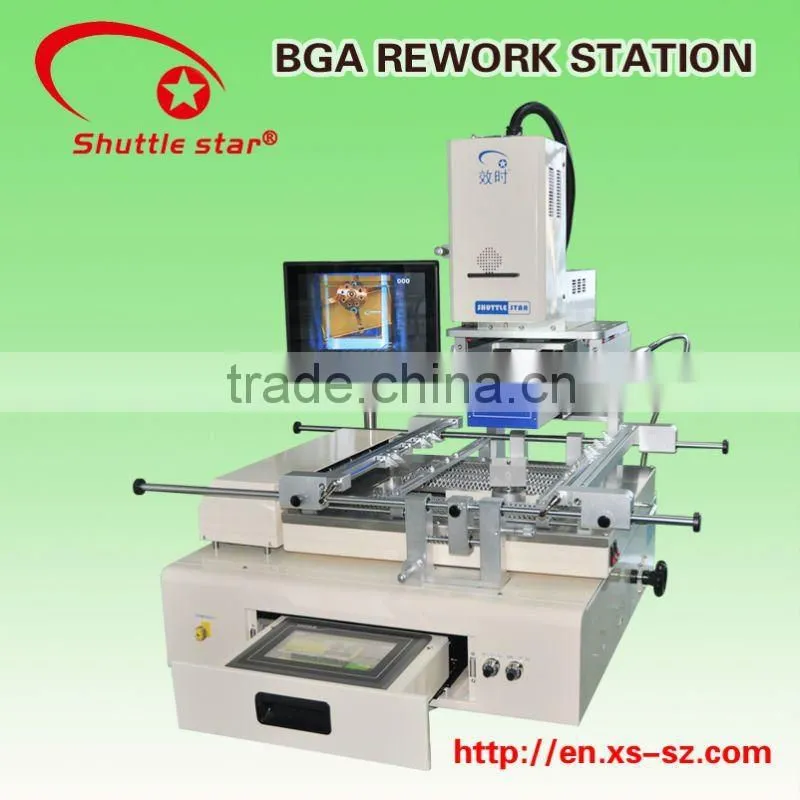

High-performance BGA rework station RW-SV550
Specification:
Applicable PCB: |
W20*D20~W620*D550mm |
PCB thickness: |
0.5~4mm |
Working table adjustment: |
±120mm forward/backward, ±80mm left/right |
Temperature control: |
K-type thermocouple, close cycle controlled |
Upper heater(hot air): |
1200W |
Lower heater(hot air): |
800W |
Bottom IR heater: |
3600W |
Power supply: |
AC singal-phase 220V 50/60Hz |
Applicable BGA: |
1*1~70*70mm |
Placement precision: |
0.01mm |
Max BGA weight: |
300g |
Machine Weight: |
95KG |
Machine Dimension: |
L850*W750*H630mm |
------------------------------------------------------------------------------------------------------------------------------
Features:
*Hot air heater head and mounting head are designed 2 in 1, driven by step
electric motor, have both the auto soldering and mounting function;
*Three heaters( upper/lower hot air heater, bottom IR heater) heating
independently, time and temperature can be displayed digitally on touch screen;
*Upper heater is movable, convenient for operation;
*Large movable bottom IR heating area, PCB clamps can be adjusted along with
X& Y table flexibly, the max PCB size it can handle up to 550×500mm;
*Powerful cross flow fans cool the bottom heating area rapidly with stable speed.
*Color optical system with functions of split vision, zoom in/out and micro-adjust,
equipped with aberration detection device; with auto focus and software
operation function, 27 X optical focus, able to rework BGA sized up to
70×70mm;
* Embedded industrial computer, touch screen interface, PLC control, real-time
profile display, able to display set profile and 5 practically tested profile at the
same time; can analyze the five practically-tested profiles, and compare them
with the history saved profiles;
*Color LCD monitor; big size screen, easy to operate; Connect USB mouse, easy
to operate
*Built-in vacuum pump; 60 °rotation in φ angle, mounting nozzle is
micro-adjustable;
*8 segments of temperature up(down) and 8 segments constant temperature
control, profile saving is unlimited in the industrial computer;
*Suction nozzle can identify material and mounting height automatically, and can
control the air pressure within a small range;
*Equipped with different hot air nozzles, easy to replace and able to locate in any
angle;
*Can handle 775 socket, 478 socket, XBOX360, PS2/3 CISCO Sever etc.
