Specifications
BGA Rework System PS4001 PLC control
2 Optical alignment
3 Constant temperature control
4 Auto-solder & desolded

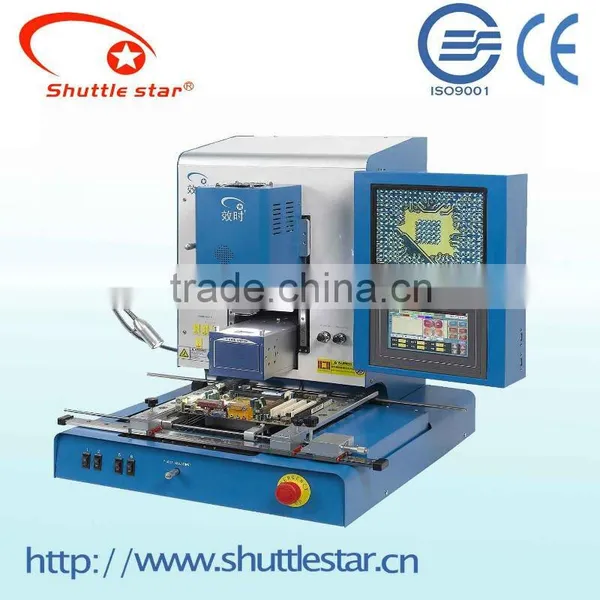

PLC Control Build-in Vacuum Pump BGA Rework System for All Kinds of Chipset
Specification
Applicable PCB: |
W20*D20~W350*D350mm |
PCB thickness: |
0.5~4mm |
Working table adjustment: |
±10mm forward/backward, ±10mm left/right |
Temperature control: |
K-type thermocouple, close cycle controlled |
Upper heater(hot air): |
800W |
Lower heater(hot air): |
800W |
Bottom IR heater: |
2700W |
Power supply: |
AC singal-phase 220V 50/60Hz |
Applicable BGA: |
1*1~70*70mm |
Placement precision: |
0.01mm |
Max BGA weight: |
80g |
Machine Weight: |
80KG |
Machine Dimension: |
L600*W600*H750mm |
-----------------------------------------------------------------------------------------------------------------------------
Description
* The streamline design is gorgeous and room-saving.
* Hot air head and mounting head are designed 2 in 1, and have both the auto soldering and
mounting function.

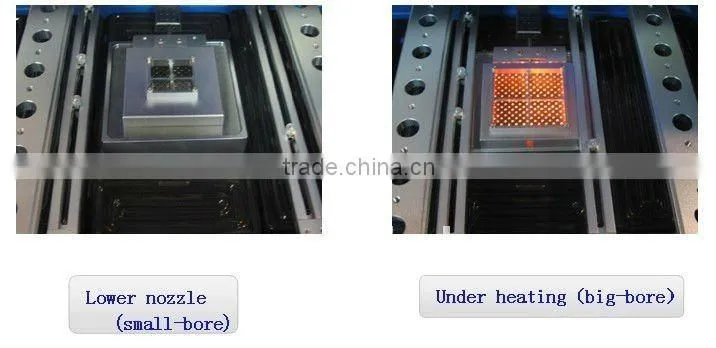

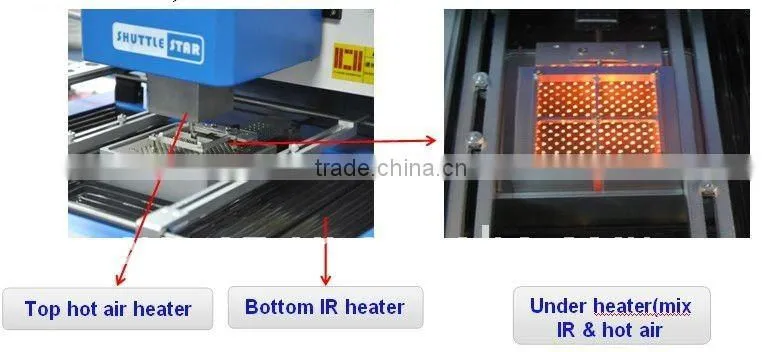

* Upper/lower hot-air heating,bottom infrared,three independent heating areas, temperature
and time can be displayed digitally on the touch screen.
* Powerful cross flow fans cool the bottom heating zone rapidly and constantly.
* Color optical system with functions of spilt vision, zoom-in and micro-adjust, equipped with
aberration detection device; with auto focus and software operation function, 22X optical
zoom.
* Embeded industrial computer can ananlyze the two proctically-tested profiles, and compare them with the history saved profiles;profile saving no limit for the industrial computer
* Color LCD monitor, touch screen interface;
* Built-in vacuum pump;60 rotating in angle mounting nozzle is micro-adjustable.
* 8 segments of temperature up(down) and 8 segments constant temperature control, profile saving is unlimited in the industrial computer;
* Suction nozzle can identify material and mounting height automatically, and can control the
air pressure within a small range.
* Equipped with different hot air nozzles, easy to replace and able to locate in any angle.
* Big size splint, equipped with deformation-proof supporting device,suitable for the accurate
rework of all kinds of PCB.
* Can handle 775 socket, 478 socket,XBOX360, PS2/3, PSP,etc .
|
|
