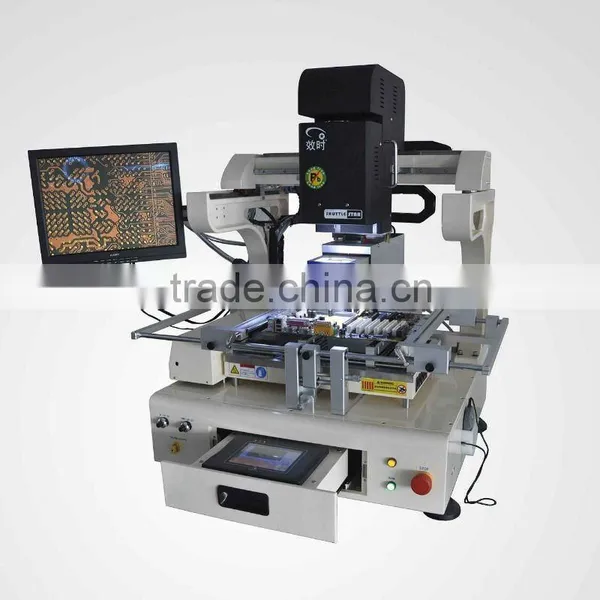

Popular BGA Rework Station for Computer(RW-E6000)

Popular BGA Rework Station for Computer(RW-E6000) thumbnail-1
Popular BGA Rework Station for Computer(RW-E6000) photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Shuttlestar
Model Number:
RW-E6000
Contact Supplier Request Quote Chat Now
Shenzhen Shuttle Star Industrial Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Shuttlestar
Model Number RW-E6000

Specifications

BGA Rework Station:
*full automatic bag rework station
*can handle PCB at any size
*Movable heaters&cam
*use air compressor

Popular BGA Rework Station for computer(RW-E6000)

Specification



Applicable PCB:

W20×20~W450×W400mm

PCB thickness:

0.5~4mm

Working table adjustment:

±10mm forward/backward, ±10mm left/right

Temperature control:

K-type thermocouple, close cycle controlled

Upper heater(hot air):

1000W

Lower heater(hot air):

1000W

Bottom IR heater:

3000W

Power supply:

AC singal-phase 220V 50/60Hz

Applicable BGA:

1*1~70*70mm

Placement precision:

0.01mm

Max BGA weight:

300g

Air supply:

5~8kgf/cm2,60L/min

Machine Weight:

120KG

Machine Dimension:

L700×W660×H950mm

-----------------------------------------------------------------------------------------------------------------------------



 Description

  •  Hot air head and mounting head are designed 2 in 1, and have both the auto soldering and mounting function;

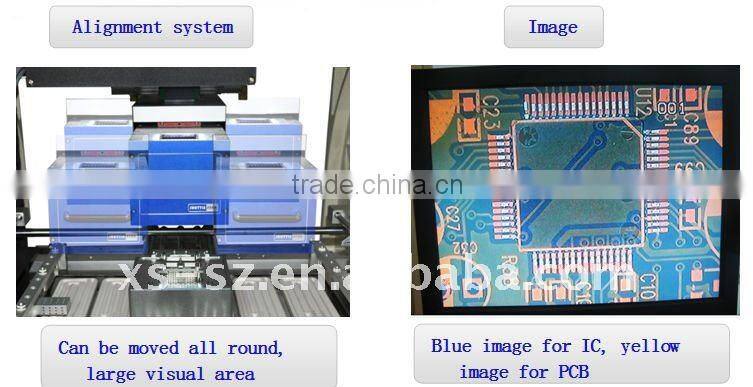

  • Color optical system with functions of split vision, zoom - in and micro adjustment,equipped  with aberration detection device; with auto focus and software operation function,22X optical zoom; able to rework BGA sized up to 70mm×70mm;
  • Touch screen interface, PLC control; real-time profile display;able to display set profile and measured profile at the same time;
  • Color LCD monitor;
  •  Built-in vacuum pump; 360° rotation in Φ angle; mounting nozzle is micro-adjustable;
  • 8 segments of temperature up (down) and 8 segments constant temperature control, 200  groups profiles can be stored; profile analysis can be carried out on the touch  screen ;
  • Able to arrive at three independent heating areas,temperature and time can be displayed digitally on the touch screen;able to rework CGA;

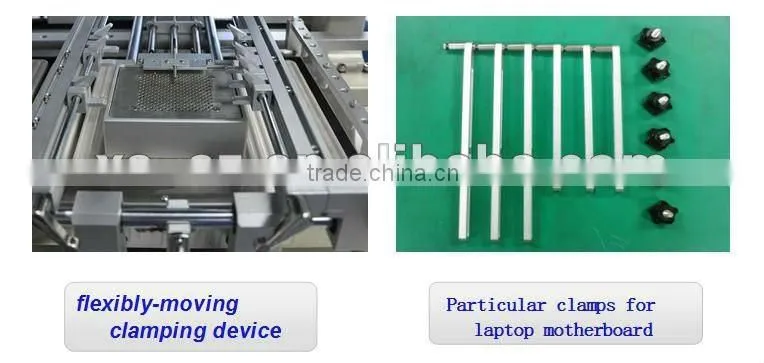

  • The supports rack can be adjusted to restrain the local sinkage of the BGA soldering area;
  • Suction nozzle can identify material and mounting height automatically, and can control the air pressure within a small range;

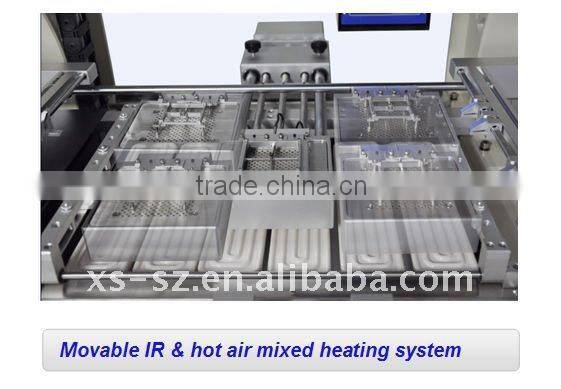

  • Both upper and lower hot-air heating head are movable on the IR preheating area to fit for reworking BGA in different positions on PCB;
  •  Finish the BGA rework process under the nitrogen protection, have special function of nitrogen-saving;
  • Equipped with different alloy hot air nozzles, easy to replace and able to locate in any angle.
  • Driven by the servo motor,the integrative hot air head can store 20 groups of different BGA heating points and register marks.
  • Can rework all types of CSP, BGA, CGA;  handle 775 socket, 478 socket, XBOX360, PS2/3 etc.

Popular BGA Rework Station for computer(RW-E6000)Popular BGA Rework Station for computer(RW-E6000)

 Popular BGA Rework Station for computer(RW-E6000)Popular BGA Rework Station for computer(RW-E6000)
