Auto BGA Machine With Surveillance Camera SV550A

Auto BGA Machine With Surveillance Camera SV550A thumbnail-1
Auto BGA Machine With Surveillance Camera SV550A photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Shuttle Star
Model Number:
RW-SV550A
Contact Supplier Request Quote Chat Now
Shenzhen Shuttle Star Industrial Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Shuttle Star
Model Number RW-SV550A

Specifications

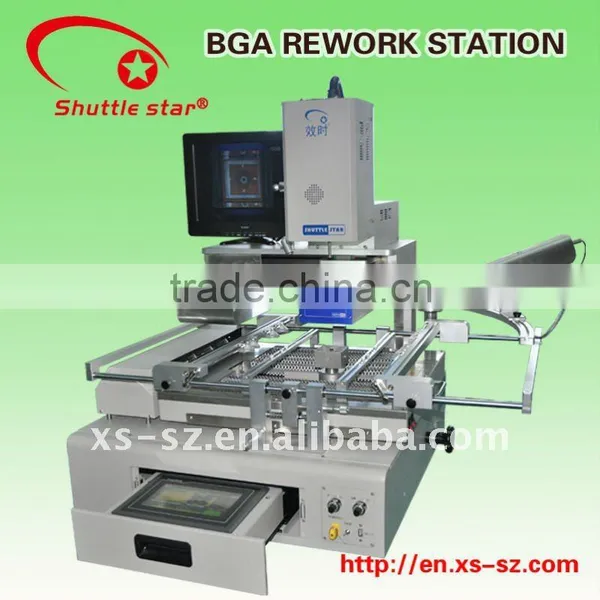

BGA Machine
*New model
*With 2 camera vision systems
*Large size bottom IR heating area
*Auto-move optical camera

 Auto BGA Machine with Surveillance Camera



Specification



Applicable PCB:

W20*D20~W550*D500mm

PCB thickness:

0.5~4mm

Working table adjustment:

±120mm forward/backward, ±80mm left/right

Temperature control:

K-type thermocouple, close cycle controlled

Upper heater(hot air):

1200W

Lower heater(hot air):

800W

Bottom IR heater:

3600W

Power supply:

AC singal-phase 220V 50/60Hz

Applicable BGA:

1*1~70*70mm

Placement precision:

0.01mm

Max BGA weight:

300g

Machine Weight:

90KG

Machine Dimension:

L850*W750*H630mm

......................................................................................................................................................



Features

  • Three heating systems( upper/lower hot air heater, bottom IR heater) heating independently, time and temperature can be displayed digitally on touch screen;
  • Optical vision system can move along with X,Y axis automatically; easy for placement and operation;
  • Large movable bottom IR heating area, PCB clamps can be adjusted along with X & Y table flexibly, the max PCB size it can handle up to 550×500mm;
  • Powerful cross flow fans cool the bottom heating area rapidly with stable speed.
  • Color optical system with functions of split vision, zoom in/out and micro-adjust, equipped with aberration detection device; with auto focus and software operation function, 27 X optical focus, able to rework BGA sized up to 70×70mm;
  • Embedded industrial computer, touch screen interface, PLC control, real-time profile display, able to display set profile and 5 practically tested profile at the same time; can analyze the five practically-tested profiles, and compare them with the history saved profiles;with USB for connecting mouse and updating software;
  • Color LCD monitor; big size screen, easy to operate;
  • Built-in vacuum pump; the max suction up to 80g; 60 °rotation in φ angle,
  • 8 segments of temperature up(down) and 8 segments constant temperature control, profile saving is unlimited in the industrial computer;
  • Suction nozzle can identify material and mounting height automatically, and can control the air pressure within a small range;
  • Auto pick up chip, auto solder, auto remove, auto placement;
  • Alloy nozzle assures the durability and stability in reflow, able to locate in any angle;
  • Visible monitoring system, can view the melting procee of the balls,(optional).
