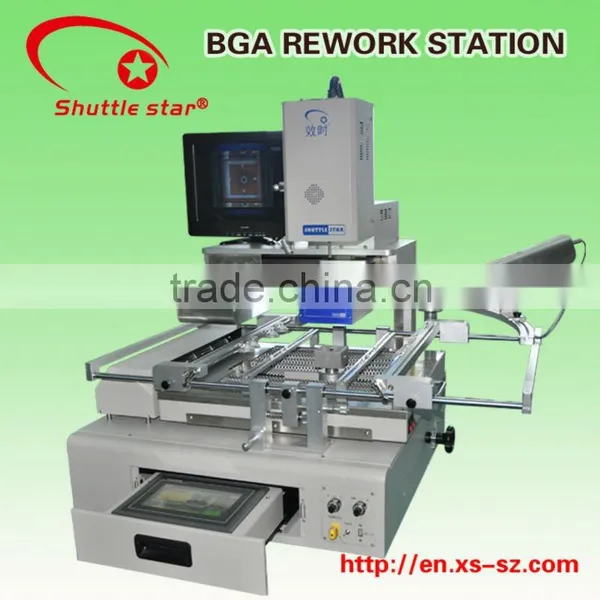

SV550A laptop motherboard bga reballing tool with two cameras and auto-placement function
- 100 Set / Sets per Month
- Shenzhen
- Credit Card PayPal
- Low Cost 2D Electronic Compass
- XCG series circular connector plug socket XCG39T62Z1P3(X) XCG39F62K1D3(X)
- MS series circular connector plug socket MS3116F16-26P MS3116F16-26S
- MS series circular connector plug socket MS3116F14-19P MS3116F14-19S
- MS series circular connector plug socket MS3116F12-10S MS3116F12-10P
- MS series circular connector plug socket MS3116F10-6P MS3116F10-6S
Product Details
Place of Origin: | Guangdong, China | Brand Name: | Shuttlestar | Model Number: | RW-SV550A |
Product Description
Specifications
Laptop BGA Reballing Tool*SIMENS PLC
*With 2 camera systems
*Large-size bottom IR heating area
*Auto-move optical camera
SV550A laptop motherboard bga reballing tool with two cameras and auto-placement function
Specification
Applicable PCB: | W20*D20~W550*D500mm |
PCB thickness: | 0.5~4mm |
Working table adjustment: | ±120mm forward/backward, ±80mm left/right |
Temperature control: | K-type thermocouple, close cycle controlled |
Upper heater(hot air): | 1200W |
Lower heater(hot air): | 800W |
Bottom IR heater: | 3600W |
Power supply: | AC singal-phase 220V 50/60Hz |
Applicable BGA: | 1*1~70*70mm |
Placement precision: | 0.01mm |
Max BGA weight: | 300g |
Machine Weight: | 90KG |
Machine Dimension: | L850*W750*H630mm |
......................................................................................................................................................
Features

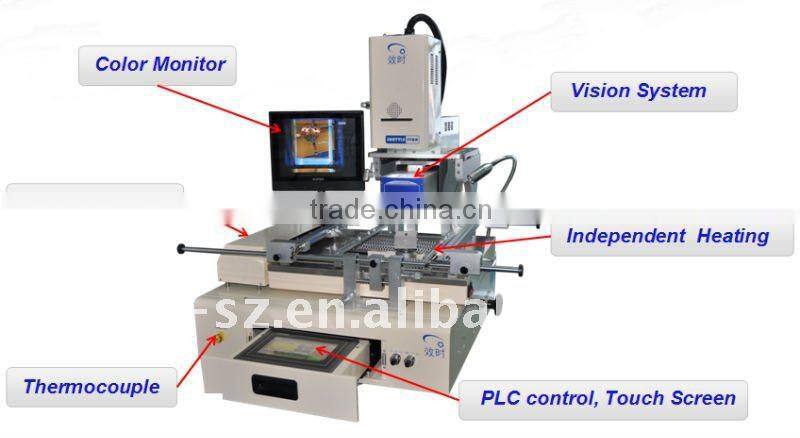

- Three heating systems( upper/lower hot air heater, bottom IR heater) heating independently, time and temperature can be displayed digitally on touch screen;
- Optical vision system can move along with X,Y axis automatically; easy for placement and operation;
- Large movable bottom IR heating area, PCB clamps can be adjusted along with X & Y table flexibly, the max PCB size it can handle up to 550×500mm;
- Powerful cross flow fans cool the bottom heating area rapidly with stable speed.
- Color optical system with functions of split vision, zoom in/out and micro-adjust, equipped with aberration detection device; with auto focus and software operation function, 27 X optical focus, able to rework BGA sized up to 70×70mm;
- Embedded industrial computer, touch screen interface, PLC control, real-time profile display, able to display set profile and 5 practically tested profile at the same time; can analyze the five practically-tested profiles, and compare them with the history saved profiles;with USB for connecting mouse and updating software;
- Color LCD monitor; big size screen, easy to operate;
- Built-in vacuum pump; the max suction up to 80g; 60 °rotation in φ angle,
- 8 segments of temperature up(down) and 8 segments constant temperature control, profile saving is unlimited in the industrial computer;
- Suction nozzle can identify material and mounting height automatically, and can control the air pressure within a small range;
- Auto pick up chip, auto solder, auto remove, auto placement;
- Alloy nozzle assures the durability and stability in reflow, able to locate in any angle;
- Visile monitoring system, can view the melting procee of the balls,(optional).
