Large-size Motherboard Repair Station With Optical Vision System(SV550)
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Shuttlestar
Model Number:
RW-SV550
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SV550A Laptop Motherboard Bga Reballing Tool With Two Cameras and Auto-placement FunctionNegotiableMOQ: 1 Set -
SV550 Shuttle Star Hot-selling BGA Reballing Station With Optical Vision SystemNegotiableMOQ: 1 Set
-
(SV560) BGA/IC/GPU Repair Station for Laptop MotherboardNegotiableMOQ: 1 Piece
-
New Model SV560 High Vision System BGA Reballing Station for All Kinds of MotherboardNegotiableMOQ: 1 Set
-
Semi Auto Bga Rework Station/ for Mobile Phone IC Repair Automatic Bga Rework StationUS$ 1 - 1MOQ: 1 Set
Place of Origin
Guangdong, China
Brand Name
Shuttlestar
Model Number
RW-SV550
Input Voltage
220V
Temperature Stability
good
Output Power
6000W
Dimensions
L850*W750*H630
Specifications
Motherboard Repair Machine*auto,step motor-driven
*PLC& optical vision system
*Large bottom IR heater
*1 year warranty
Large-size Motherboard Repair Station SV550
the best seller among models with optical vision system
Warranty:
1 year warranty, if parts get broken not artificially, we can replace the new one and the relative shipping cost is on our party.
Specification
Applicable PCB: |
W20*D20~W620*D550mm |
PCB thickness: |
0.5~4mm |
Working table adjustment: |
±120mm forward/backward, ±80mm left/right |
Temperature control: |
K-type thermocouple, close cycle controlled |
Upper heater(hot air): |
1200W |
Lower heater(hot air): |
800W |
Bottom IR heater: |
3600W |
Power supply: |
AC singal-phase 220V 50/60Hz |
Applicable BGA: |
1*1~70*70mm |
Placement precision: |
0.01mm |
Max BGA weight: |
300g |
Machine Weight: |
95KG |
Machine Dimension: |
L850*W750*H630mm |
Features
- Hot air heater head and mounting head are designed 2 in 1, driven by step electric motor, have both the auto soldering and desoldering function;
- Three heaters( upper/lower hot air heater, bottom IR heater) heating independently, time and temperature can be displayed digitally on touch screen;
- Upper heater is movable, with electromagnet positioning, convenient for manual placement operation;
- Large movable bottom IR heating area(can be moved 100mm to left or to right), PCB clamps can be adjusted along with X & Y table flexibly, the max PCB size it can handle up to 550×500mm;
- Powerful cross flow fans cool the bottom heating area rapidly with stable speed.
- Color optical system with functions of split vision, zoom in/out and micro-adjust, equipped with aberration detection device; with auto focus and software operation function, 27 X optical focus, able to rework BGA sized up to 70×70mm;
- Embedded industrial computer, touch screen interface, PLC control, real-time profile display, able to display set profile and practically tested profile at the same time; can analyze the practically-tested profiles, and compare them with the history saved profiles;
- Color LCD monitor;
- Built-in vacuum pump; 60 °rotation in φ angle, mounting nozzle is micro-adjustable;
- 8 segments of temperature up(down) and 8 segments constant temperature control, profile saving is unlimited in the industrial computer;profile analysis can be carried out on the touch scren;

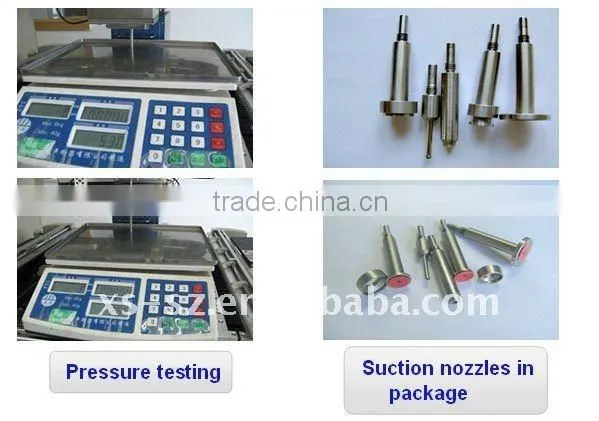

- Suction nozzle can identify material and mounting height automatically, and can control the air pressure within a small range;
- Equipped with different hot air nozzles, easy to replace and able to locate in any angle;
- Can handle 775 socket, 478 socket, XBOX360, PS2/3 CISCO Sever etc.
|
|
|
|
|
|
|
|
|
