Best IR heating RW-E6250 PLC control BGA repair station soldering machine



Specification

 PCB size: W20*D20~W450*D400mm

 PCB thickness:0.5~4mm

 Applicable BGA:1*1~80*80mm

 Working table adjustment:±10mm Forward/baceword,±10mm Left/right

 Temperature control:K-type thermcouple close cycle controlled

 PCB locating way:Auto-vision

 Placement precision:±0.01mm

 Min pitch of BGA ball:0.15mm

 Bottom IR preheat:4800w

 Top heater:hot air 2000w

 Bottom heater:hot air 1000w

 Max BGA weight:300g

 Power supply:Three-phase 380V,50/60HZ

 Machine dimension:L780*W850*H950mm

 Gas source:3~8kgf/cm²,95L/min

 Weight:Approx.150KG

Best IR heating RW-E6250 PLC Control BGA repair station soldering machine



  Best IR heating RW-E6250 PLC Control BGA repair station soldering machine

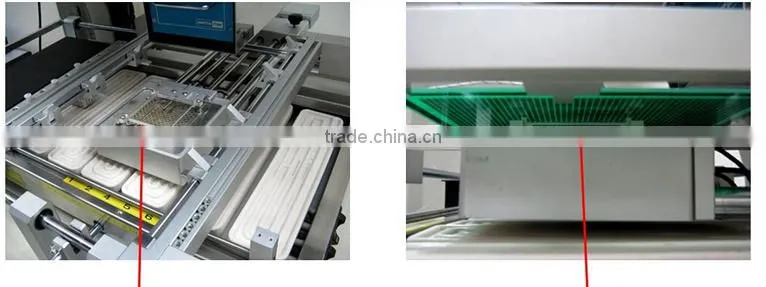

                   Large bottom IR area heater                     Special clamps fit for different PCB

Best IR heating RW-E6250 PLC Control BGA repair station soldering machine

                                           Automatic soldering and desoldering

Best IR heating RW-E6250 PLC Control BGA repair station soldering machine



                               Thermcouple port for measure temperature

Best IR heating RW-E6250 PLC Control BGA repair station soldering machine

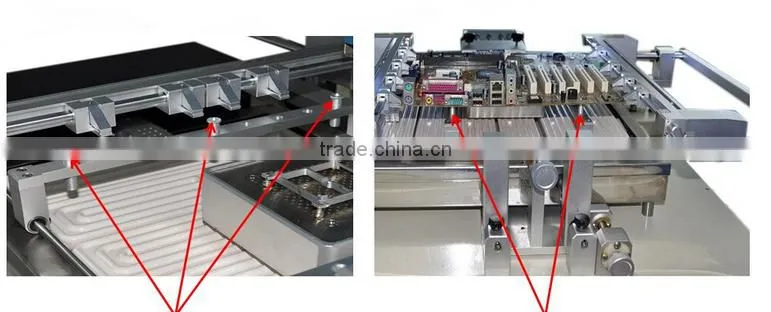

          Preventing deformation                                                Preventing deformation

Best IR heating RW-E6250 PLC Control BGA repair station soldering machine

                      PCB support rail                                                        Effect





Best IR heating RW-E6250 PLC Control BGA repair station soldering machine

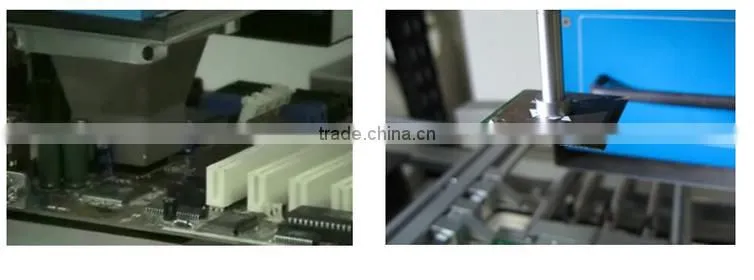

                                            Optics alignment imaging





BGA reballing accessories



Best IR heating RW-E6250 PLC Control BGA repair station soldering machine

Best IR heating RW-E6250 PLC Control BGA repair station soldering machine





Other features



1.The machine body is coated with aluminium alloy; X/Y table are precision linear guide rails;



  driven by SERVO motor,has both the auto soldering and mounting function; embeded with



  industrial computer system, touch screen interface with both Chinese and English menu,



  PLC control; adopts high-precision K-type thermocouple&close cycle control, with PID auto



  setting system.







2.Profile analysis, setting and amendment can be carried out at any time, mass memory for



  temperature parameters and heating alignment parameters saving.







3.Use adjustable high definition CCD color optical system with functions of split vision,zoom



  - in and micro-adjustment, equipped with aberration?detection device; with auto focus



  and software operation function,27X optical zoom and 270X digital zoom; zoom control



  can be carried out on touch screen.







4.Be provided with software functions, including "IC hold", profile suspending or time-lapse,



  screen lock etc. which makes the opertion more human-friendly.







5.Both upper and lower hot-air heating head are movable on the IR preheating area to fit for



  reworking BGA in different positions on PCB.







6.Lower heater is mixed heating system with hot-air and IR;  leave nitrogen port;finish the



  BGA rework process under the nitrogen protection, have special function for saving



  nitrogen to save cost.







 7.Built-in vacuum pump; 360° rotation in Φ angle; mounting nozzle is micro-adjustable;



   Suction nozzle can identify material and mounting height automatically, and can control the air



   pressure within a small range.







8.With function of over-heating protection and air lost protection;  upper heater is of



  anti-collision and anti-press function.







9.Large IR area heater from the bottom will heat the PCB evenly to avoid deformation and keep



  soldering effect; heating board is independently controlled;suitable for any kind of BGA package,



  including CCGA,BGA,QFN,CSP,LGA,Micro SMD,MLF(Micro Lead Frames)
