Semi Automatic Mobile Phone/cell Phone/hand Phone Soldering Station With Reballing Tools

Semi Automatic Mobile Phone/cell Phone/hand Phone Soldering Station With Reballing Tools thumbnail-1
Semi Automatic Mobile Phone/cell Phone/hand Phone Soldering Station With Reballing Tools thumbnail-2
Semi Automatic Mobile Phone/cell Phone/hand Phone Soldering Station With Reballing Tools photo-1

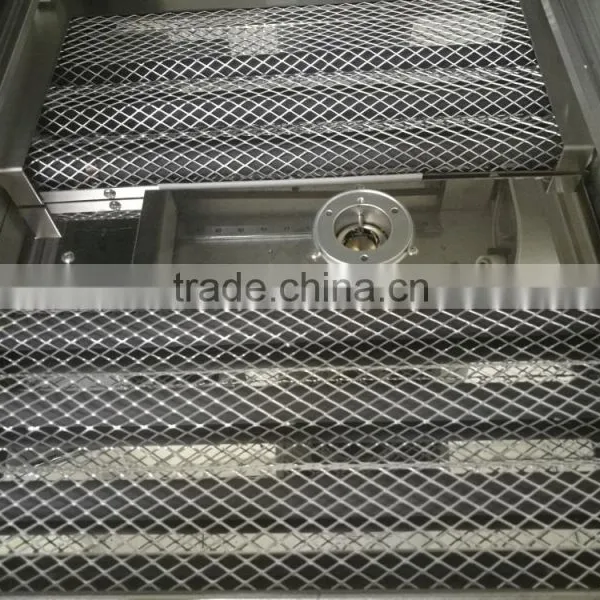

Semi Automatic Mobile Phone/cell Phone/hand Phone Soldering Station With Reballing Tools photo-2
US$ 1 - 1 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Shuttlestar
Model Number:
RW-SV550
Contact Supplier Request Quote Chat Now
Shenzhen Shuttle Star Industrial Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen/hongkong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Shuttlestar
Model Number RW-SV550
Voltage 220V, 220V
Current 10-120A
Rated Capacity 4500W
Rated Duty Cycle 60%
Dimensions L850*W750*H630MM
Weight 80kg, 80KG
Usage Welding rework solder reballing repair
Certification ISO9001
After-sales Service Provided Engineers available to service machinery overseas

Semi automatic mobile phone/cell phone/hand phone soldering station with reballing tools





Shuttle star industrial Co.,Ltd ,the company expert in bga rework station for 17years, the reliability and technology deposit are all recognized at home and abroad,so if you are looking for bga rework station, we are definitely your best choice.

Product Description



Specification




  PCB dimension  W20*D20~W550*500
  PCB thickness  0.5~4mm
  Working table adjustment  ±120mm Forward/backward, ±80mm Left/right
  Top heater  1200w
  Bottom heater  800w
  Area heater(Far infrared)  3600w
  Power supply  Single-phase 220v,50/60Hz
  BGA dimension  1*1~70*70mm
  Min pitch of BGA ball  0.15mm
  Placement precision  ±0.02mm
  Max BGA weight  300g
  Machine dimension  L850*W750*H630
  Weight  Appox: 80kgs
  Temperature control  k-type

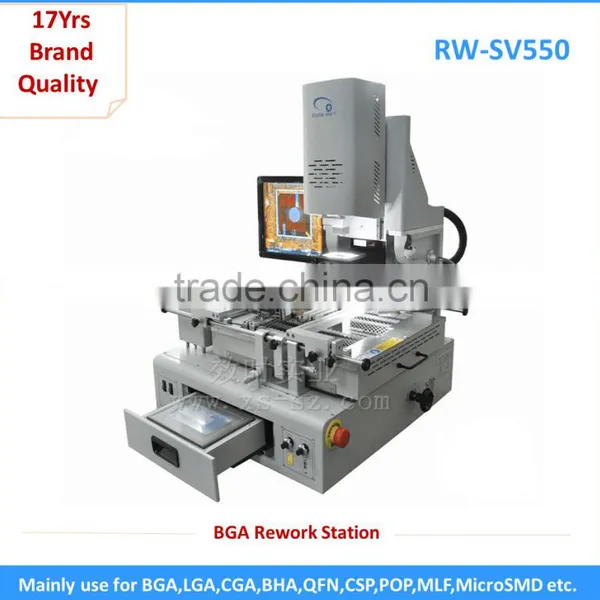

RW-SV550semi automatic mobile phone/cell phone/hand phone soldering station with reballing tools



Semi automatic mobile phone/cell phone/hand phone soldering station with reballing tools





Semi automatic mobile phone/cell phone/hand phone soldering station with reballing tools

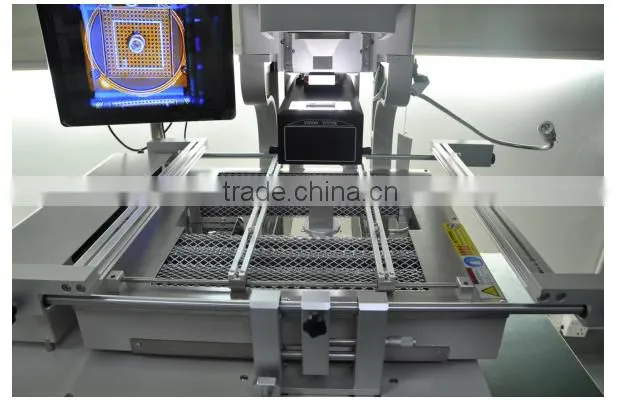

Optical alignment


Semi automatic mobile phone/cell phone/hand phone soldering station with reballing tools

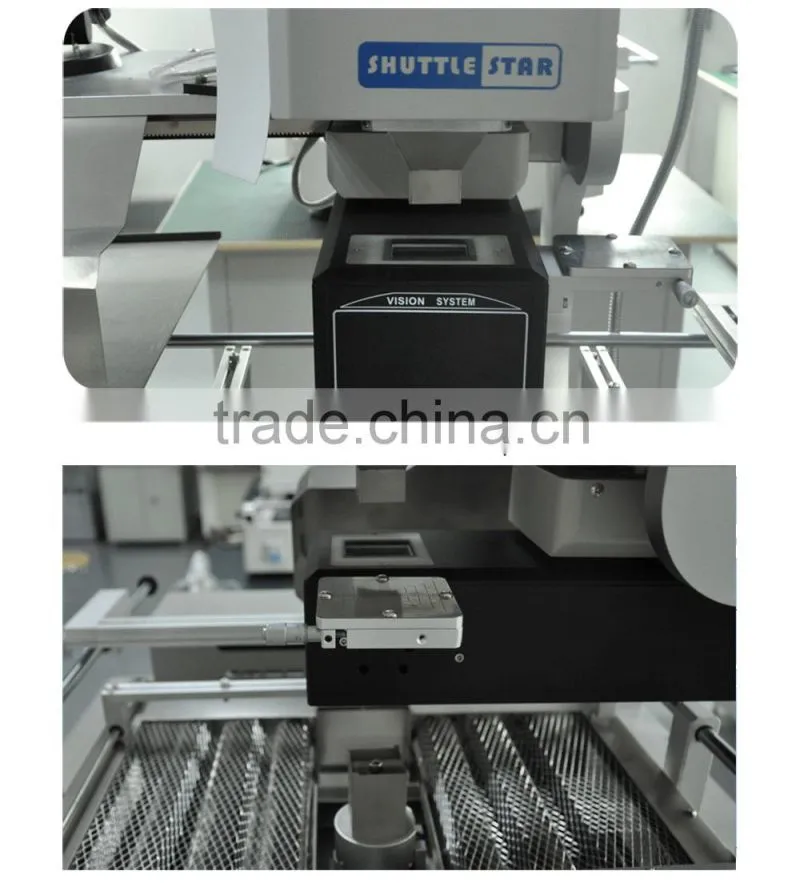

Automatic pick up and placement and soldering



                                    Semi automatic mobile phone/cell phone/hand phone soldering station with reballing tools


 Three temperature zone of  BGA rework station

Semi automatic mobile phone/cell phone/hand phone soldering station with reballing tools

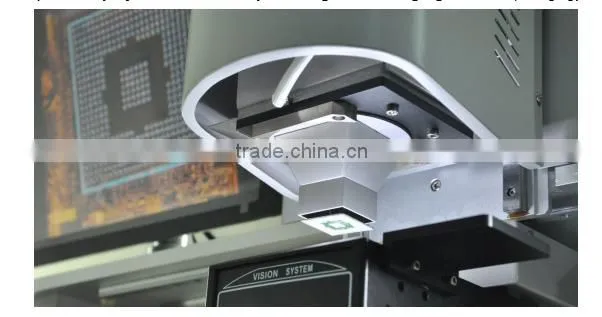

Color optical camera system:

1) Split vision

2) Zoom in/out and micro-adjust

3) Equipped with aberration

4) Detection device

5) With auto focus and software operation function



Semi automatic mobile phone/cell phone/hand phone soldering station with reballing tools



                                       PCB clamps and support rail



 Semi automatic mobile phone/cell phone/hand phone soldering station with reballing tools



                             Real-time profile displaySemi automatic mobile phone/cell phone/hand phone soldering station with reballing tools

Different alloy nozzles for you to choose



Other features:



1.Hot air heater head and mounting head are designed 2 in 1, driven by step electric motor, have both the
  auto soldering and mounting function;
2.Three heaters( upper/lower hot air heater, bottom IR heater) heating independently, time and temperature
  can be displayed digitally on touch screen;
3.Upper heater is movable, convenient for operation;
4.Large movable bottom IR heating area, PCB clamps can be adjusted along with X & Y table flexibly, the max
  PCB size it can handle up to 550*500mm;
5. Powerful cross flow fans cool the bottom heating area rapidly with stable speed;
6. Color optical system with functions of split vision, zoom in/out and micro-adjust, equipped with aberration
   detection device; with auto focus and software operation function, 27 X optical focus, able to rework BGA
   sized up to 70*70mm;
7. Embedded industrial computer, touch screen interface, PLC control, real-time profile display, able to display
   set profile and 5 practically tested profile at the same time; can analyze the five practically-tested profiles;
8.Color LCD monitor;
9. Built-in vacuum pump,  60 °rotation in φ angle, mounting nozzle is micro-adjustable;
10.8 segments of temperature up(down) and 8 segments constant temperature control,  profile saving is unli
   -mited in the industrial computer;
11.Suction nozzle can identify material and mounting height automatically,  and can control the air pressure
   within a small range of 30-50g;
12.Equipped with different hot air nozzles,  easy to replace and able to locate in any angle.


Packaging & Shipping

1, All machines will be packaged in wooden box if the buyers ask no special demand.

2, It is free shipping in mainland.

Semi automatic mobile phone/cell phone/hand phone soldering station with reballing tools

Our Services

 1, Warranty: one year.

 2, Service hot line: 24 hours all round year

 3, Spot goods: 3 million sets.

 4, Delivery date: with 7 business days after receiving the payment.

Semi automatic mobile phone/cell phone/hand phone soldering station with reballing tools

Company Information



Company Information



Semi automatic mobile phone/cell phone/hand phone soldering station with reballing toolsSemi automatic mobile phone/cell phone/hand phone soldering station with reballing tools



Our Customers
Semi automatic mobile phone/cell phone/hand phone soldering station with reballing tools

Semi automatic mobile phone/cell phone/hand phone soldering station with reballing tools























































Thank for your time!
