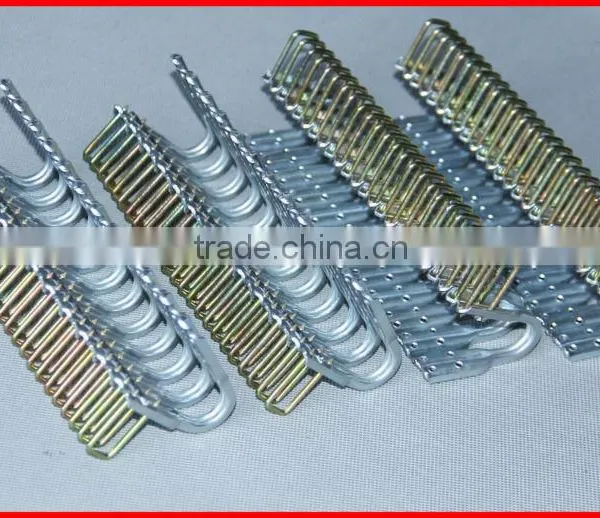

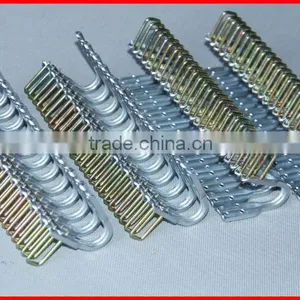

Heavy Duty MR Belt Fastener Rivet Buckle System for Mining Industry

US$ 14 - 85 MOQ: 1 Box

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Model Number:

DJ-2500

Foshan Nanhai Wei Shuo Rubber And Plastic Product Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou Fo Shan Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name DJ

Model Number DJ-2500

Specifications

Rivet buckle system
1,special steel material
2.good joint straight,easy to connect
3.small impact to roller & cleaner

Product name: Heavy duty belt conveyor Rivet buckle system for mining industry

Features:

1. Joint strength cover average. long lifespan in usage.

2. Good joint straight, easy to be connected.

3. U type body design, low fastener body, small impact to roller and conveyor belt cleaner.

make up transmission smoothly

Application:

mainly used for conveyor belt, transport coal,hard rock,sand and gravel,asphalt,pulp paper in these plants or factory.

Rivet buckle system specification:

Item No	Belt thick(mm)	Tensile strength	Min Roller diameter	Each box/pcs	Weight/box	installation machine
DJ-1000	5-10	1000KN/M	250mm	200mm/10pcs	2.5KG	WDJ-1000
	7-12				2.6KG
DJ-1400	8-13	1400KN/m	260mm	200mm/10pcs	2.9KG	WDJ-1400
	10-15				3.9KG
DJ-1600	8-12	1600KN/m	360mm	200mm/10pcs	3.3KG	WDJ-1600
	13-17				3.3KG
DJ-2000	13-18	2000KN/m	360mm	200mm/10pcs	4.2KG	WDJ-2000
	15-20				5KG
DJV6	6-12	1000KN/mm	230mm	800mm,1000mm,1200mm/2pc	N/A	WDJV6
DJ-2500	7-12	2500KN/mm	380mm	56pcs/box for 1m joint	N/A	WDJ2500
	13-18
DJT38	12-16	3000KN/mm	360mm	200mm/10pcs	N/A	WDJT38D
	13-20
DJ2003	13-18	2000KN/mm	360mm	200mm/10pcs	N/A	WDJ2003
	15-20
DJ2002	6-12	1000KN/mm	230mm	800.1000.1200mm/2pc	N/A	WDJ2002
DJT12	8-12	1600KN/mm	360mm	200mm/10pcs	N/A	WDJT12
	12-16

Corresponding Hinge Pin is used.

Hinge Pin diameter	LENGTH Could custom any length as per request	Applying Tensile strength
7mm	650mm,800mm,1000mm,1200mm,1400mm	1600KN/mm
8mm	1000mm,1200mm,1400mm	2000KN/mm
9mm	1200mm,1400mm,1600mm	2500KN/mm
10mm	1200mm,1400mm,1600mm	3000KN/mm
12mm	1200mm,1400mm,1600mm,2000mm	3500KN/mm
