Specifications
conveyor belt lacing1,special steel material
2.good joint straight,easy to connect
3.small impact to roller & cleaner

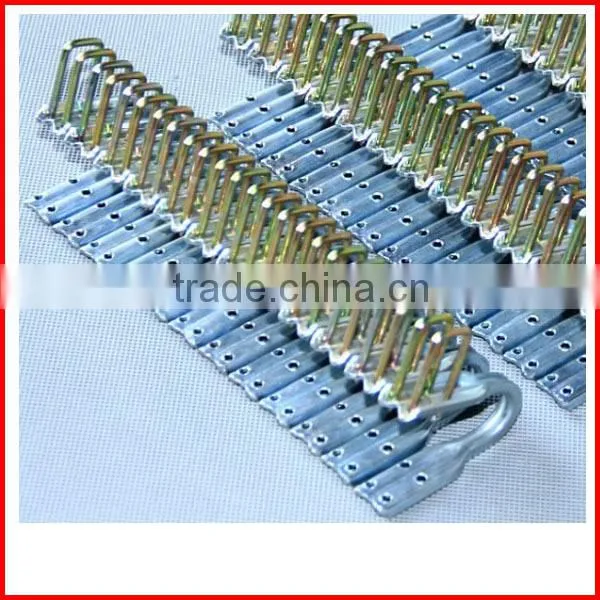

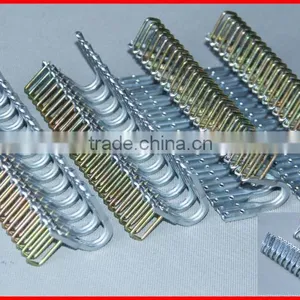

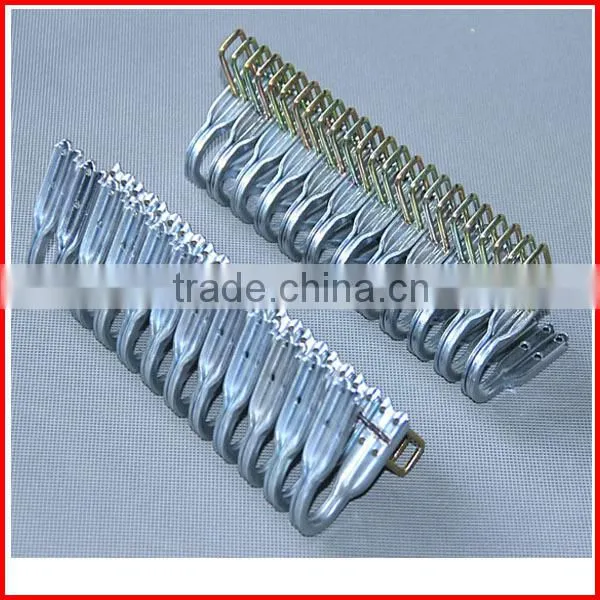

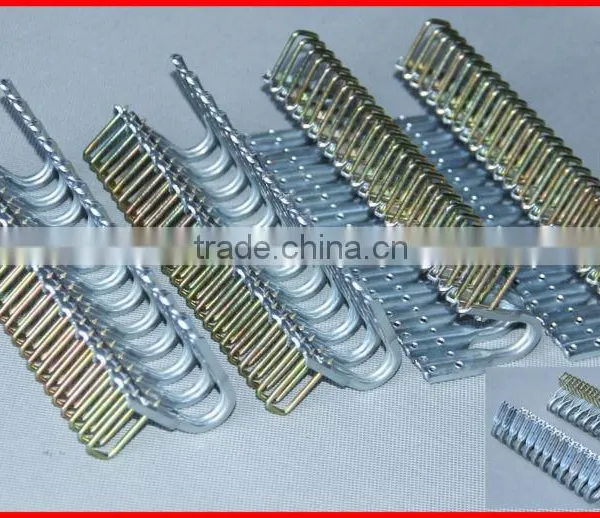

Product name: tensile strength grade 2000KN/mm conveyor belt lacing
Features:
1. Joint strength cover average. long lifespan in usage.
2. Good joint straight, easy to be connected.
3. U type body design, low fastener body, small impact to roller and conveyor belt cleaner.
make up transmission smoothly
Conveyor belt lacing'specification and Data:
Item No |
Belt thick(mm) |
Tensile strength |
Min Roller diameter |
Each box/pcs |
Weight/box |
installation machine |
DJ-1000 |
5-10 |
1000KN/M |
250mm |
200mm/10pcs |
2.5KG |
WDJ-1000 |
7-12 |
2.6KG |
|||||
DJ-1400 |
8-13 |
1400KN/m |
260mm |
200mm/10pcs |
2.9KG |
WDJ-1400 |
10-15 |
3.9KG |
|||||
DJ-1600 |
8-12 |
1600KN/m |
360mm |
200mm/10pcs |
3.3KG |
WDJ-1600
|
13-17 |
3.3KG |
|||||
DJ-2000 |
13-18 |
2000KN/m |
360mm |
200mm/10pcs |
4.2KG |
WDJ-2000
|
15-20 |
5KG |
|||||
DJV6 |
6-12 |
1000KN/mm |
230mm |
800mm,1000mm,1200mm/2pc |
N/A |
WDJV6
|
DJ-2500 |
7-12 |
2500KN/mm |
380mm |
56pcs/box for 1m joint |
N/A |
WDJ2500 |
13-18 | ||||||
DJT38 |
12-16 |
3000KN/mm |
360mm |
200mm/10pcs |
N/A |
WDJT38D |
13-20 | ||||||
DJ2003 |
13-18 |
2000KN/mm |
360mm |
200mm/10pcs |
N/A |
WDJ2003 |
15-20 | ||||||
DJ2002 |
6-12 |
1000KN/mm |
230mm |
800.1000.1200mm/2pc |
N/A |
WDJ2002 |
DJT12 |
8-12 |
1600KN/mm |
360mm |
200mm/10pcs |
N/A |
WDJT12 |
12-16 |
Application:
mainly used for conveyor belt, transport coal,hard rock,sand and gravel,asphalt,pulp paper in these plants or factory.
Technical details:
Name:mining conveyor belt lacing fastener,.
As mining industry spare parts with different shapes and sizes
Fastener length:100mm
Applying strength:(n/mm≤1400)
Belt thickness scope:13-16mm
Suitable belt grade≤15grade
Belt with: any(mm)
Min rotary diameter:≥Φ500mm
Package: 10boxes as one carton
Name: steel plate conveyor belt lacing
belt lacing Material: carbon Steel/Mild Steel, and could be zinc
Size: 1.5inch and 2inch
Plate Fastener G1 (25Sets/box) one carton has 8 boxes
Each set consists of 1 Top & Bottom Plate, 2pcs bolts&1pcs nuts and rubber washer Design.
Corresponding Hinge Pin is used.
Hinge Pin diameter |
LENGTH Could custom any length as per request |
Applying Tensile strength |
7mm |
650mm,800mm,1000mm,1200mm,1400mm |
1600KN/mm |
8mm |
1000mm,1200mm,1400mm |
2000KN/mm |
9mm |
1200mm,1400mm,1600mm |
2500KN/mm |
10mm |
1200mm,1400mm,1600mm |
3000KN/mm |
12mm |
1200mm,1400mm,1600mm,2000mm |
3500KN/mm |
Remarks:
If still any questions, Welcome to inquiry us, We must reply to you within 24 hours ! We value every order,
even if you order one box conveyor belt lacing
