Help Center2013 Best Efficiency and New Heat Pipe Solar Collector With Solar Keymark EN12975 & SRCC Approved
Related Products
-
Pressurized Solar Energy CollectorUS$ 150 - 400MOQ: 10 Sets -
30 Evacuated Tube Vacuum Solar Thermal CollectorUS$ 150 - 400MOQ: 10 Sets
-
Pressurized Vacuum Tube Solar CollectorUS$ 150 - 400MOQ: 10 Sets
-
Types of Evacuated Solar Energy CollectorUS$ 150 - 400MOQ: 10 Sets
-
DIY Solar Super Heat Pipe CollectorUS$ 150 - 400MOQ: 10 Sets
Specifications
1,with solar keymark EN12975 and SRCC certificates2,heat rapidly
3,working temp.: -40 to 300 degrees
4,24hrs online service
OUR GOAL IS TO MAKE YOU CLEAR ABOUT YOUR PRODUCTS AT YOUR OFFICE!!!

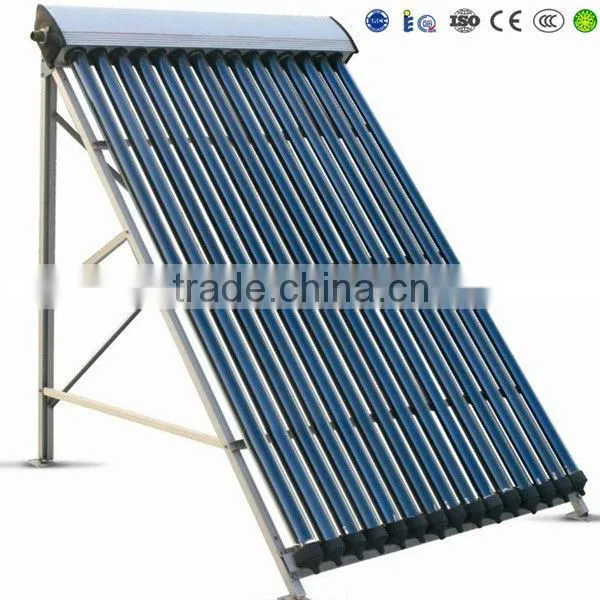

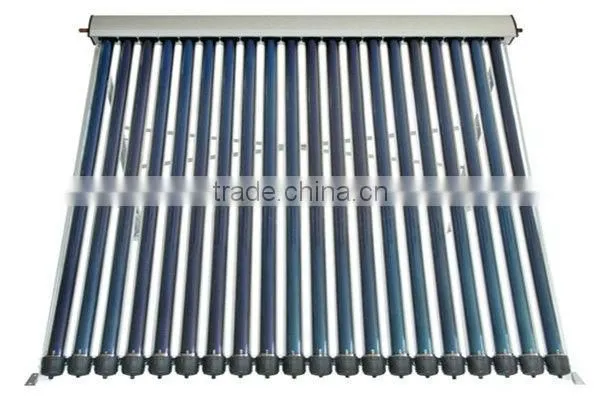

Heat Pipe Solar Collector
Features:
1) Reliable and efficient twin-glass solar tubes
2) Copper heat pipes for rapid heat transfer
3) Easy plug-in installation
4) Free maintenance
5) Suitable for mains pressure water
6) Corrosion resistant silver brazed copper header
7) The surface is made of aluminum board
8) Powder coated (black or silver) aluminum casing
9) Stable solar conversion during the day
10) The perfect solar collector for domestic solar water heater systems
11) Ideal for commercial solar water heating applications
How it works:
1). The operation of the solar collector is very simple;
2). Solar absorption: solar radiation is absorbed by the vacuum tubes
and converted into heat energy;
3). Heat energy transfer: heat pipes conduct the heat energy from the
vacuum tube to the header copper pipe of solar collector;
4). Heat energy storage: anti-freezing liquid is circulated through the header copper
pipe of solar collector and copper coil in the storage tank, via intermittent pump cycling. Each time the liquid circulates through the header copper pipe, the temperatures is raised by 5-10°C.
Throughout the day, the water in the tank is gradually heated.
Material Specifications:
1) Glass tube: new trivalent element vacuum tube, coating AL-N/SS/CU, 58*1800mm

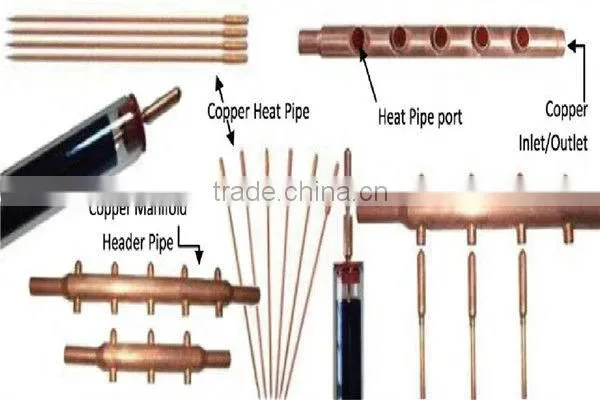

2) Heat Pipe Material: TU1 Copper, length 1707mm
3) Heat PipeDiameter: condenser dia14mm, body dia 8mm
4) Manifold header pipe: TP2 copper dia 35mm
5) Manifold casing (Head box): anodized aluminum alloy
6) Insulation: rock wool with polyurethane foam
7) Bracket: anodized aluminum alloy
8) Tube holder: UV stabilized nylon
9) Seals: Silicon seal
10) Contact sheets: Aluminum fin
11) Anti-freezing fluid: pure water/glycol
12) Working Pressure: 6 bar
13) Max test pressure: 12bar
14) Working Temperature: -40 to 300 degrees

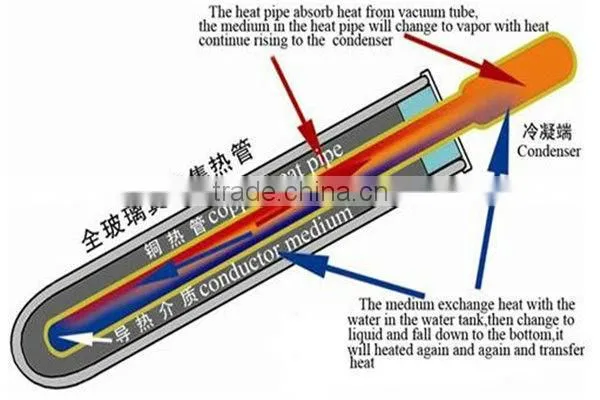

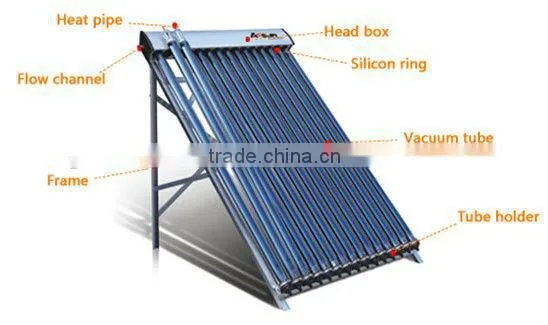

Structure of Heat Pipe Solar Collector

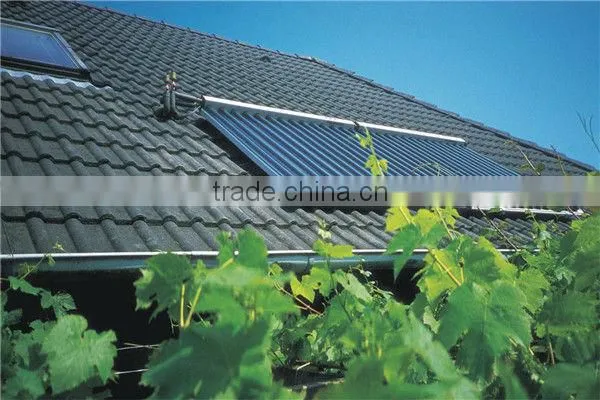

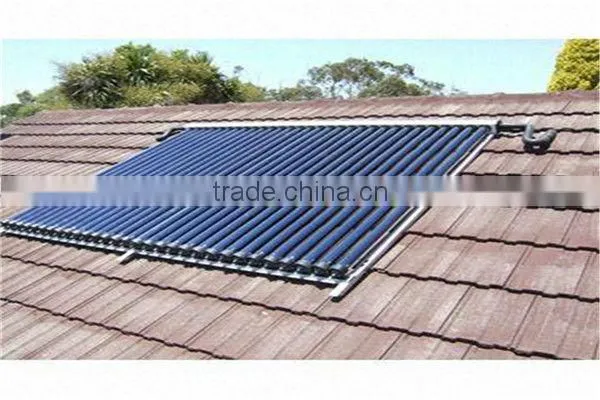

Heat Pipe Solar Collector for Domestic Heating:

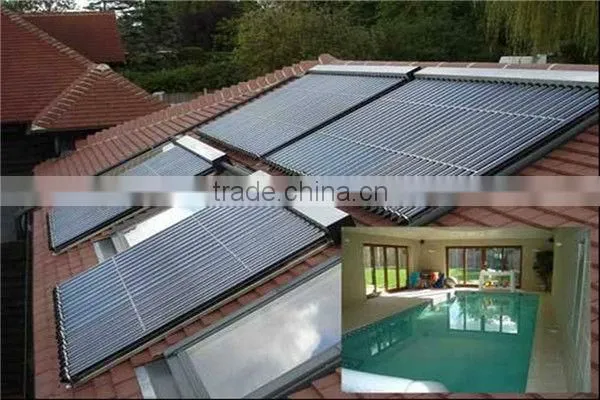

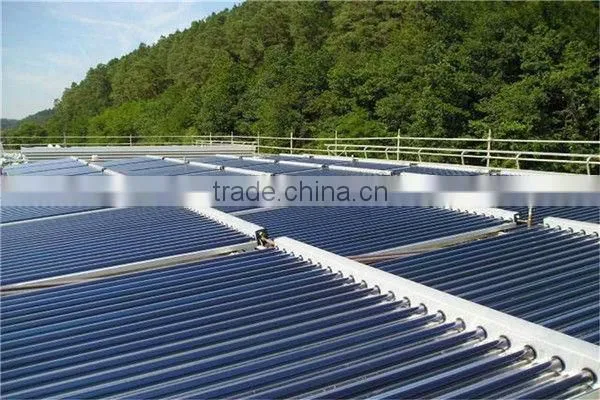

Large Project of Heat Pipe Solar Collector for Swimming Pool Heating, Hotel and so on

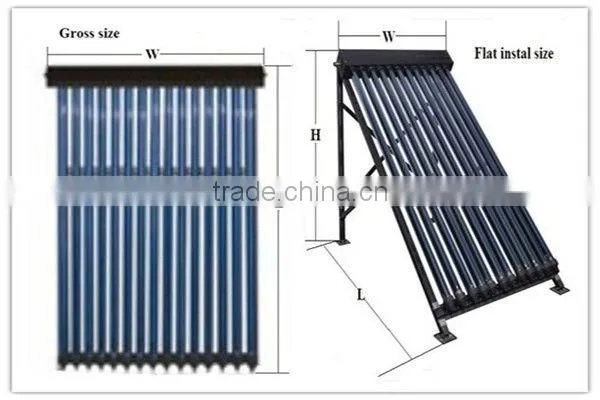

Size of Heat PIpe Solar Collector:
Available Models of Heat Pipe Solar Collector (Appoved by Solar Keymark EN12975 & SRCC)
Model |
Tube No. |
Fluid volume /L |
Aperture Area /m2 |
Absorb Area / m2 |
Gross Size W * L /mm |
Flat roof install size W*L*H/mm |
GDL-SP58-1800-12 |
12 |
0.72 |
1.135 |
0.908 |
970*1980 |
970*1335*1425 |
GDL-SP58-1800-15 |
15 |
0.9 |
1.419 |
1.135 |
1195*1980 |
1195*1335*1425 |
GDL-SP58-1800-18 |
18 |
1.08 |
1.703 |
1.362 |
1420*1980 |
1420*1335*1425 |
GDL-SP58-1800-20 |
20 |
1.2 |
1.892 |
1.514 |
1570*1980 |
1570*1335*1425 |
GDL-SP58-1800-24 |
24 |
1.44 |
2.270 |
1.816 |
1870*1980 |
1870*1335*1425 |
GDL-SP58-1800-30 |
30 |
1.8 |
2.838 |
2.270 |
2320*1980 |
2320*1335*1425 |
