Specifications
1,solar keymark EN12975 and SRCC Approved2,heat rapidly
3,temp.: -40 to 300 degrees
4,24hrs online service
5, high pressure
OUR GOAL IS TO MAKE YOU CLEAR ABOUT YOUR PRODUCTS AT YOUR OFFICE!!!

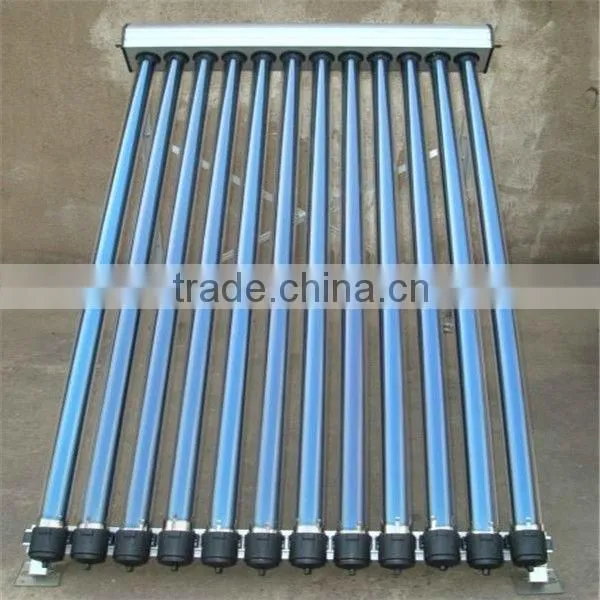

Heat Pipe Solar Collector
Model: GDL-SP58-1800-12
Tube no: 12
Fliud volume: 0.72 liters
Apreture area: 1.135m2
Absord Area: 0.908m2
Gross Area: 1.921m2
Volume:
N.W.:
G.W.:
Material Specifications:
1) Glass tube: new trivalent element vacuum tube, coating AL-N/SS/CU, 58*1800mm
2) Heat Pipe Material: TU1 Copper, length 1707mm
3) Heat PipeDiameter: condenser dia14mm, body dia 8mm
4) Manifold header pipe: TP2 copper dia 35mm
5) Manifold casing (Head box): anodized aluminum alloy
6) Insulation: rock wool with polyurethane foam
7) Bracket: anodized aluminum alloy
8) Tube holder: UV stabilized nylon
9) Seals: Silicon seal
10) Contact sheets: Aluminum fin
11) Anti-freezing fluid: pure water/glycol
12) Working Pressure: 6 bar
13) Max test pressure: 12bar
14) Working Temperature: -40 to 300 degrees
Structure of Heat Pipe Solar Collector
Heat Pipe Solar Collector for Domestic Heating:
Large Project of Heat Pipe Solar Collector for Swimming Pool Heating, Hotel and so on
Size of Heat PIpe Solar Collector:
Available Models of Heat Pipe Solar Collector (Appoved by Solar Keymark EN12975 & SRCC)
Model |
Tube No. |
Fluid volume /L |
Aperture Area /m2 |
Absorb Area / m2 |
Gross Size W * L /mm |
Flat roof install size W*L*H/mm |
GDL-SP58-1800-12 |
12 |
0.72 |
1.135 |
0.908 |
970*1980 |
970*1335*1425 |
GDL-SP58-1800-15 |
15 |
0.9 |
1.419 |
1.135 |
1195*1980 |
1195*1335*1425 |
GDL-SP58-1800-18 |
18 |
1.08 |
1.703 |
1.362 |
1420*1980 |
1420*1335*1425 |
GDL-SP58-1800-20 |
20 |
1.2 |
1.892 |
1.514 |
1570*1980 |
1570*1335*1425 |
GDL-SP58-1800-24 |
24 |
1.44 |
2.270 |
1.816 |
1870*1980 |
1870*1335*1425 |
GDL-SP58-1800-30 |
30 |
1.8 |
2.838 |
2.270 |
2320*1980 |
2320*1335*1425 |
