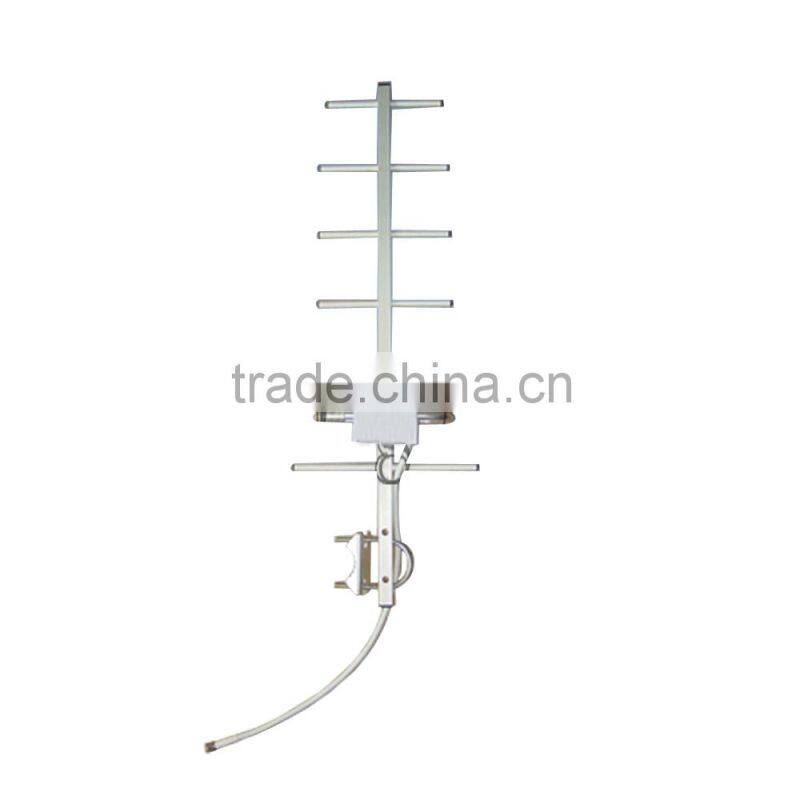

758~806 MHz 10 dBi Yagi Antenna
758~806 MHz 10 dBi Yagi Antenna
7 elements Yagi 758~806 MHz Antenna
758~806 MHz Antenna main features
| Model No. |
|
| Frequency Range | 758~806 MHz Antenna |
| Impedance | 75 Ohm |
| Gain | 10dBi |
| Polarization | Horizontal or Vertical |
758~806 MHz Antenna specification
| Electrical Specifications | |
| Frequency Range | 758~806 MHz |
| Impedance | 75 Ohm |
| VSWR | <1.5 |
| Gain | 10dBi |
| Polarization | Horizontal or Vertical |
| Horizontal 3dB Beam Width | 49° |
| Vertical 3dB Beam Width | 43° |
| Front To Back Ratio | >16 dB |
| Lighting Protection | Direct Ground |
| Max. Power Input-watts | 100W |
| Connector | N-Female |
| Cable | 5DFB ,L=0.5 m |
| Mechanical Specifications | |
| Length | 620 mm |
| Weight | 310 g |
| Radiating Element Material | Cu |
| Rated Wind Velocity | 60 m/s |
| Mounting hardware | Ø30~Ø45 mm |
Packaging & Shipping
758~806 MHz Antenna specification
| MOQ | 1pc for samples; 100 for mass production |
| Packaging | Gift box |
| Trade Terms | FOB Xiamen/Shenzhen/Hangzhou |
| Express delivery | DHL/UPS/FEDEX/EMS/TNT |
| Delivery time | 3-5 days after receiving the payment |
| Payment | T/T, West Union, Money Gram, PayPal,Escrow or LC |
| Warranty | Radio 1 year; Accessories 3 Months |
