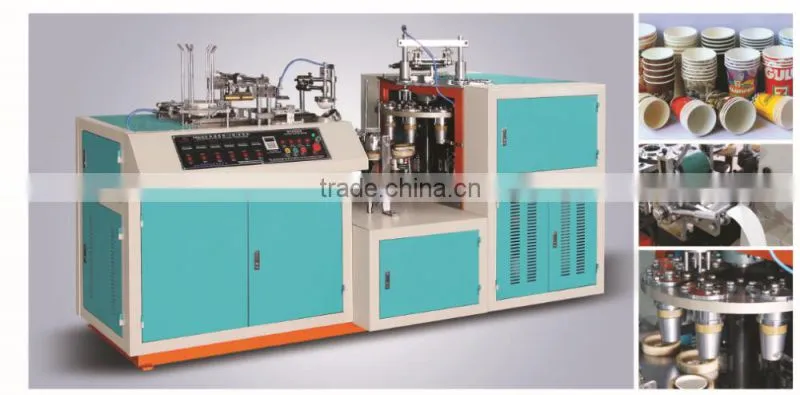

ZBJ-D12 Automatic Ultrasonic Double PE Paper Cup Machine

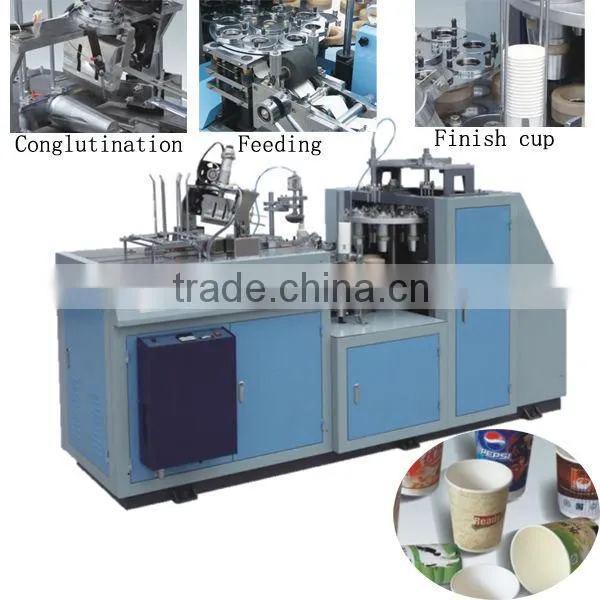

  working principles / procedures:

1. Square paper pieces be printed(use offset printer)and cut(use die-cutting machine)in advance, becomes cup-fan-wall-papers to make cup body.

2. Paper sender delivers the cup-fan-wall-papers to molds, sealing the body .

3. The cup bottom paper (reel) automatic feed to the bottom cut parts,be cut

into round pieces and sent to molds with the sealed cup body.

4. Pre heating the cup bottom,bottom heating,curlinging the top edge .

5. Sealing the bottom with body.

6. Knurling the cup bottom.

7. Discharging finished cups automatically from molds. Sending to collector

and be collected and piled and counted automatically.

Technical Specification:

For our machines' specail points , please find as follows:

1) gear box is 125 type, which has three year warranty. other company using 100 type which easy have problem in one year. for the two type of gear box, pls find at attachments.

2) Transducer brand: Huifeng (The largest supplier in china)

3) Two types of drop system. 1: normal type an incline horse.

2: Arm-and-hand systems which use arm to pick the cup drop in to plastic hole.

It makes the drop cup 99.9999.

4) Some bearing import from out of china.

5) Contractor:Zhengtai brand (The biggest electric parts supplier in china)

6)Inside of the machine , using big size of chains

7)2800*1300*1800mm machine size, which is much big other some companies' machine. our machine has much stability

8)Machine body material is SS

Each set machine goes together with  a set of free accessories.

Each machine has one year warranty.
