working principles / procedures
1. Square paper pieces be printed(use offset printer)and cut(use die-cutting machine)in advance, becomes cup-fan-wall-papers to make cup body.
2. Paper sender delivers the cup-fan-wall-papers to molds, sealing the body .
3. The cup bottom paper (reel) automatic feed to the bottom cut parts,be cut into
round pieces and sent to molds with the sealed cup body.
Technical Specification:
Model |
ZBJ--H12 High Speed Paper Cup Machine |

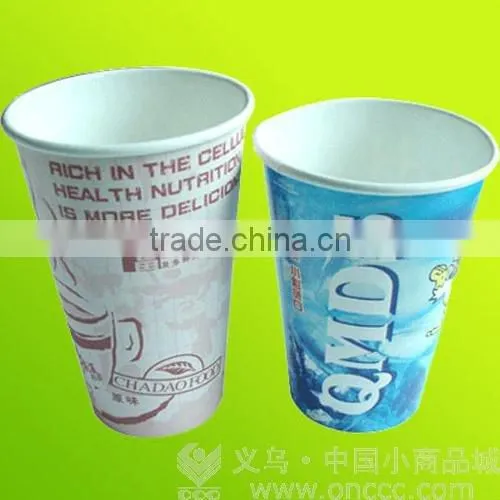

Paper Cup Size |
3oz-12oz (mold exchangeable)80ml~330ml |
Raw Material |
One/side PE (polyethylene)film coated/laminated paper |
Suitable paper weight |
140-350gsm |
Rated Productivity |
50-60 pcs/minute; |
Power Source |
220V/380V 50Hz or other required |
Total Power |
4.8KW |
Total Weight |
1800KG |
Package Size(L x W x H) |
2800mm *1300mm *1700mm; |
Working Air Source |
0.4Mpa, Air Out-put:0.6 m3/minute |
Making Double PE coated paper cups, need to buy an air compressor | |
Model |
AC-1head Automatic Finish Cup Collection System |
Paper Cup Size |
3oz-16oz |
Cup Stock Range |
10-60 pcs |
Max Head |
4 head collection system in one machine 4 paper cup machines together come for cup collection |
Package Size |
1000mm*650mm*1700mm |
Total Weight |
100 kg |
1) gear box is 125 type, which has three year warranty. other company using 100 type which easy have problem in one year.
for the two type of gear box, pls find at attachments.
2) speed reducer: 1:30 100 type, other company use 1:20 80 type.
3)Some bearing import from out of china.
JAPAN: NTN , NSK
GERMANY: FAG
ITALY: SKF
Contractor: CHINT brand (The biggest electric parts supplier in china)
/ it is a public company
5)Ultrasonic: EVER GREEN
6)Inside of the machine , using big size of chains
7). AC DRIVE- company make & capacity: EURA ( Brand) 220V almost never have problem when we are using
8)2800*1300*1700mm machine size, which is big and much stability
9). Machine Physical weight (before packing) 1.7ton
Each set machine goes together with a set of free accessories.
Each machine has one year warranty.
