Home > Manufacturing & Processing Machinery > Paper Machinery > Paper Making Machine > MQ-420420 Roll to Roll / Roll to Sheet / Label Die Cutting Machine With Hot Stamping / Lamination / Punching Function

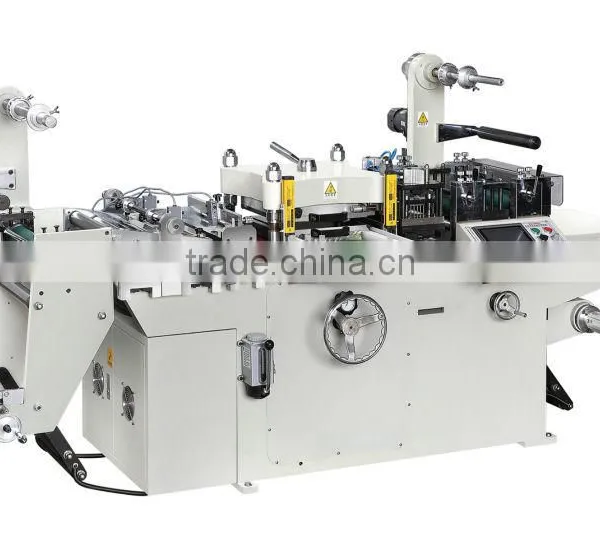

MQ-420420 Roll to Roll / Roll to Sheet / Label Die Cutting Machine With Hot Stamping / Lamination / Punching Function
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Paper Cutting Machine
Computerized:
Yes
Payment & Shipping
Payment Methods:
Port of Shipment:
ninfbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Paper Cup Punching MachineNegotiableMOQ: 1 Set -
MQ-420C Self Adhesive Electronic Label Die Cutting MachineNegotiableMOQ: 1 Set
-
MQ-320C/420C Label Die Cutting Machine/roll to Sheet Die Cutting MachineNegotiableMOQ: 1 Set
-
MQ-420C Foil Die Cutting Machine From Ruian ManufactuereNegotiableMOQ: 1 Set
-
Pet Die Cutting Machine From ChinaNegotiableMOQ: 1 Set
Condition
New
Type
Paper Cutting Machine
Computerized
Yes
Place of Origin
Zhejiang, China
Brand Name
ZRB
Model Number
MQ-420C
Voltage
220v
Power(W)
3.5kw
Dimension(L*W*H)
2750 x 1150 x 1760
Weight
1800kg
Certification
CE, ISO, TUV
Warranty
1year
After-sales Service Provided
Overseas service center available
Product Description
Characteristic:
1.This is a flatbed die cutting machine with high-precision.
2.The paper-going and paper sheeting is controlled by computer. The three photo electric eyes do the
web guiding job.
3.Die cutting,laminating,waste rewinding,paper sheeting and rewinding can be finished
in one process.
4.It is applicable to die cut self adhesive label,Dacron film label and laser anti-false label.
5. It is a good ideal auxiliary of flexo printing machine, screen printing machine, relief printing
machine and so on.
6. This is the best die cutting machine of the label printing company.
Suitable material
1.Glutinous product: silicone gel sheet,conducting resin,double-faced adhesive tape,and so on.
2. Dustproof material: cotton pads, filter, dust screen, non-woven fabrics
3. Shockproof product: cushion, PORON cushion, 3M, EVA
4. Insulate, EMI, aluminum foil, clutch gold, PVC,PET, kraft paper,
5. Btu-block: silicon sheeting, mica lamination, fibre plate, heat insulation cotton.
Main Technical Parameter:
Model |
MQ-420C |
Cutting speed |
20-160m/min |
Max. feeding diameter |
450mm |
Max. web width |
420mm |
Max. die cutting width |
400mm |
Max. die cutting length |
400mm |
Positioning precision |
±0.1mm |
Total power |
3.5kw |
Voltage |
380v±10% |
Weight of machine |
About 1800kg |
Dimension |
2600×1250×1500mm |
Optional :
