MQ-420C PVC Label Die Cutting Machine
Video Link: http://youtu.be/f7wBrSUWE3M

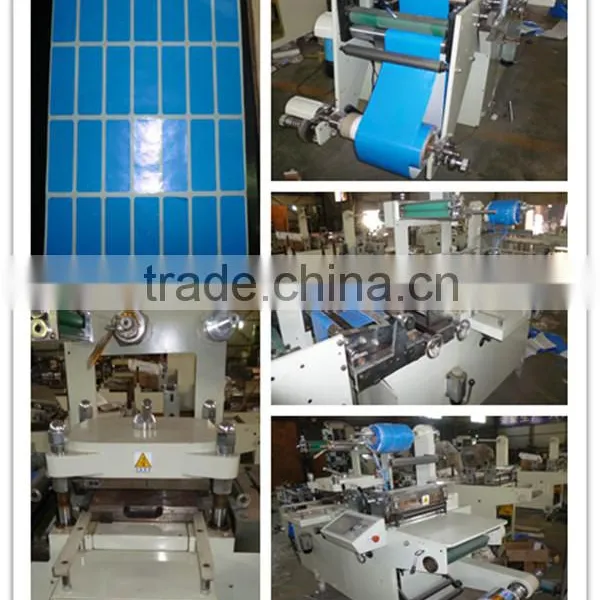

1. This is a flatbed die cutting machine with high-precision.
2. The paper-going and paper sheeting is controlled by computer. The three photo electric eyes do
the web guiding job.
3. Die cutting,laminating, waste rewinding , paper sheeting and rewinding can be
finished in one process.

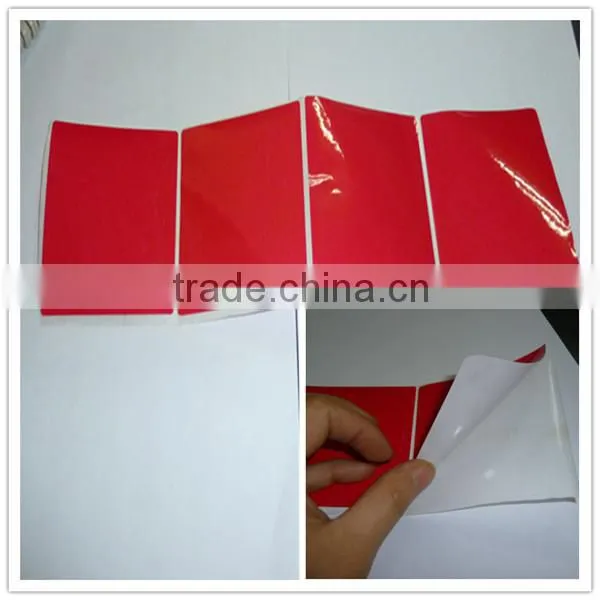

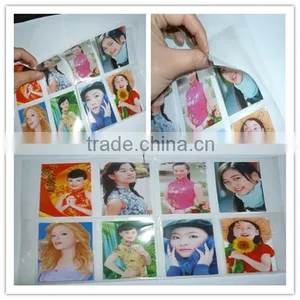

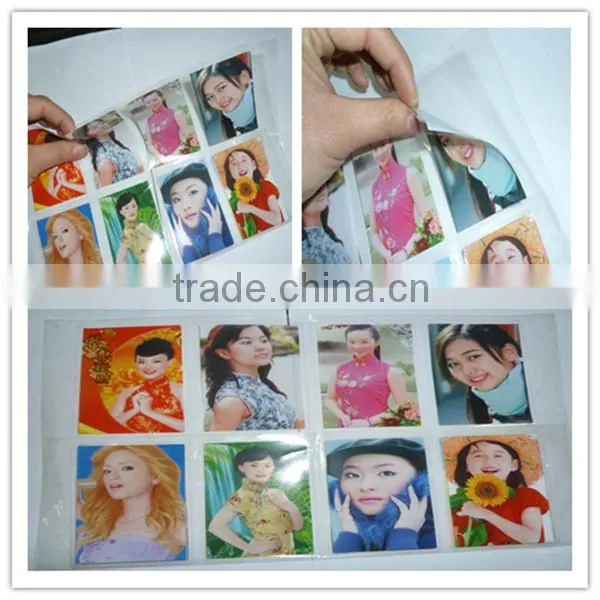

4. It is applicable to die cut self adhesive label,Dacron film label and laser anti-false
label.
5. It is a good ideal auxiliary of flexo printing machine, screen printing machine, relief
printing machine and so on.
6. This is the best die cutting machine of the label printing company.
Suitable material
1. Glutinous product: silicone gel sheet, conducting resin, double-faced adhesive tape, and so on.
2. Dustproof material: cotton pads, filter, dust screen, non-woven fabrics
3. Shockproof product: cushion, PORON cushion, 3M, EVA
4. Insulate, EMI, aluminum foil, clutch gold, PVC,PET, kraft paper,
5. Btu-block: silicon sheeting, mica lamination, fibre plate, heat insulation cotton.
Model |
MQ-420C |
Cutting speed |
20-160m/min |
Max. feeding diameter |
450mm |
Max. web width |
420mm |
Max. die cutting width |
400mm |
Max. die cutting length |
400mm |
Positioning precision |
±0.1mm |
Total power |
3.5kw |
Voltage |
380v±10% |
Weight of machine |
About 1800kg |
Dimension |
2600×1250×1500mm |
