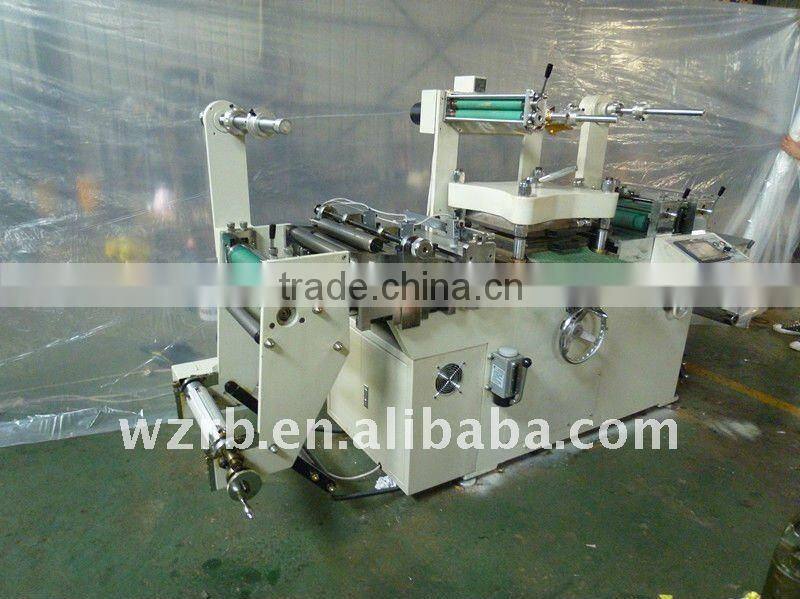

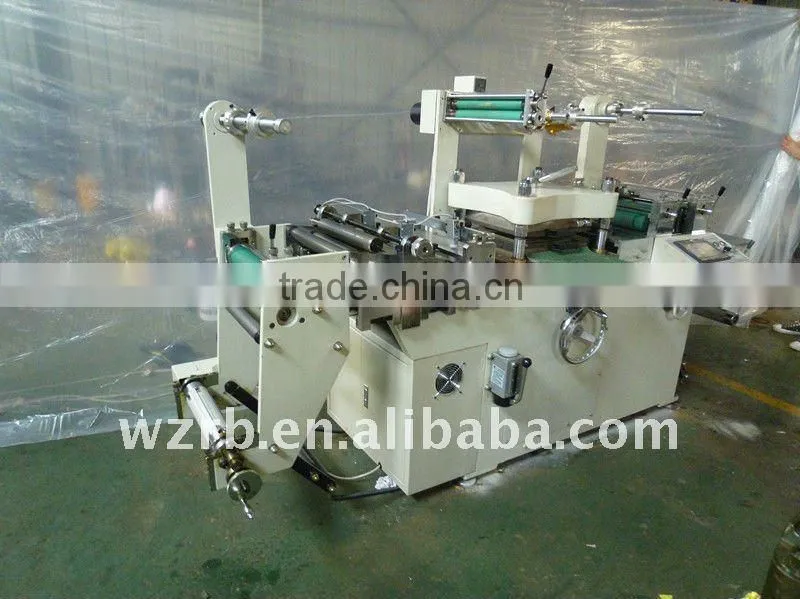

MQ-320 adhasive label flatbed die cutting Machine with hot stamp

FOB Price

USD $9,000 - $12,000 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Die-cutting Machine
Computerized	Yes	Place of Origin	Zhejiang, China
Brand Name	rb	Model Number	MQ-320
Voltage	220v	Power(W)	8.5kw
Dimension(LWH)	3500mm1600mm2000MM	Weight	2000(kg)
Certification	CE/ISO9001	Warranty	1year
After-sales Service Provided	Overseas service center available

Characteristic:

MQ850 Automatic punching machine adopt the automatic punching type die cutting

technology, it make the paper products roll slitting, die cutting and clear waste in one

process. Effectively improve the utilization rate of raw material and finished product

rate.This machine is the convenient food wrapping paper bowl,paper boxes, paper

cups ,ect. Various kinds of paper products die cutting of the ideal equipment.

1.Reduce the flatbed die cutting clear waste, direct cutting out the samples and

incision smoothness, also greatly reducing the energy consumption and manpower.

2.This machine uses professional high-precision clearance to deliver the paper

institutions and high speed automatic give paper, realize the lose paper smoothly,

accurate positioning and paper collection neatly.

3.Adopt PLC microcomputer control system and the LCD visual interface, realize the

machine working automatic.

4.This machine key parts, control system and fasteners used imported products

elaborate assembly. Ensure the machine pressure stable, accurate positioning,

safe and reliable.

Main Technical Parameter:

Model	MQ-850
Cutting speed	180(times/min)
Cutting type	extrusion type die cutting
Suitable of paper material	Roll coated paper, Aluminum foil paper
Roll width	850mm
Roll diameter	1400mm
According to the automation program	Automation
Max. punching size	850*450mm
Total power	8.5KW
Dimension	3500×1600×2000MM
Weight	2000(kg)
