Home > Manufacturing & Processing Machinery > Paper Machinery > Paper Making Machine > MQ-420C Self Thermal Paper Die Cutting Machine/food Lable Die Cutting or Paper
MQ-420C Self Thermal Paper Die Cutting Machine/food Lable Die Cutting or Paper
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Die-cutting Machine
Computerized:
Yes
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
MQ-320C/420C Adhesive Tape Lover Label Die Cutting MachineNegotiableMOQ: 1 Set -
Automatic MQ-850 Paper Cup Punching With Mould Making MachineUS$ 18,000 - 21,000MOQ: 1 Set
-
RY-850 Printing Paper Cups With Customized LogoUS$ 12,000 - 45,000MOQ: 1 Set
-
Automatic MQ-850 Paper Cup Plate Making MachineUS$ 21,000 - 21,000MOQ: 1 Set
-
Automatic MQ-850 Paper Cup Pcs Making MachineNegotiableMOQ: 1 Set
Condition
New
Type
Die-cutting Machine
Computerized
Yes
Place of Origin
Zhejiang, China
Brand Name
rb
Model Number
MQ-320C/420C
Voltage
220v
Power(W)
3.5
Dimension(L*W*H)
2600*1250*1500mm
Weight
About 1800kg
Certification
ce
Warranty
1year
After-sales Service Provided
Overseas service center available
Product Description
Characteristic:

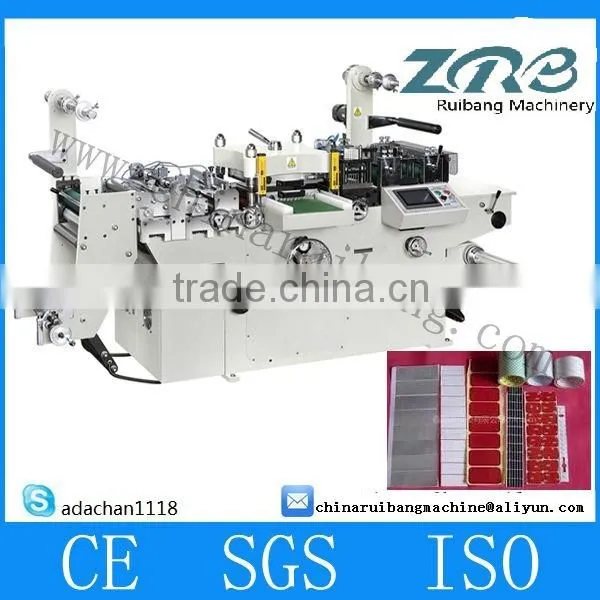

1.This is a flatbed die cutting machine with high-precision.
2.The papergoing and paper sheeting is controlled by computer. The three photo electric eyes
do the web guiding job.
3.Die cutting,laminating, waste rewinding,paper sheeting and rewinding can be finished
in one process.

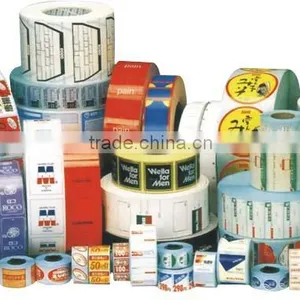

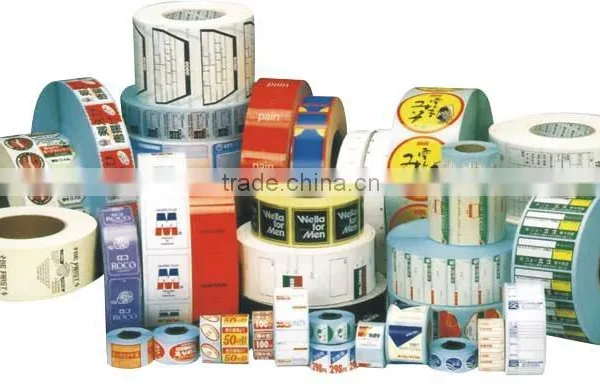

4.It is applicable to die cut self adhesive label,Dacron film label and laser anti-false label.
5. It is a good ideal auxiliary of flexo printing machine, screen printing machine, relief printing
machine and so on.
6. This is the best die cutting machine of the label printing company.
Suitable material
1.Glutinous product: silicone gel sheet, conducting resin, double-faced adhesive tape,
and so on.
2. Dustproof material: cotton pads, filter, dust screen, non-woven fabrics
3. Shockproof product: cushion, PORON cushion, 3M, EVA
4. Insulate, EMI, aluminum foil, clutch gold, PVC,PET, kraft paper,
5. Btu-block: silicon sheeting, mica lamination, fibre plate, heat insulation cotton.
Main Technical Parameter:
Model |
MQ-320C |
MQ-420C |
Cutting speed |
20-160m/min |
20-160m/min |
Max. feeding diameter |
450mm |
450mm |
Max. web width |
320mm |
420mm |
Max. die cutting width |
300mm |
400mm |
Max. die cutting length |
290mm |
400mm |
Positioning precision |
±0.1mm |
±0.1mm |
Total power |
2.5kw |
3.5kw |
Voltage |
220v±10% |
380v±10% |
Weight of machine |
About 1500kg |
About 1800kg |
Dimension |
2600×1100×1400mm |
2600×1250×1500mm |
