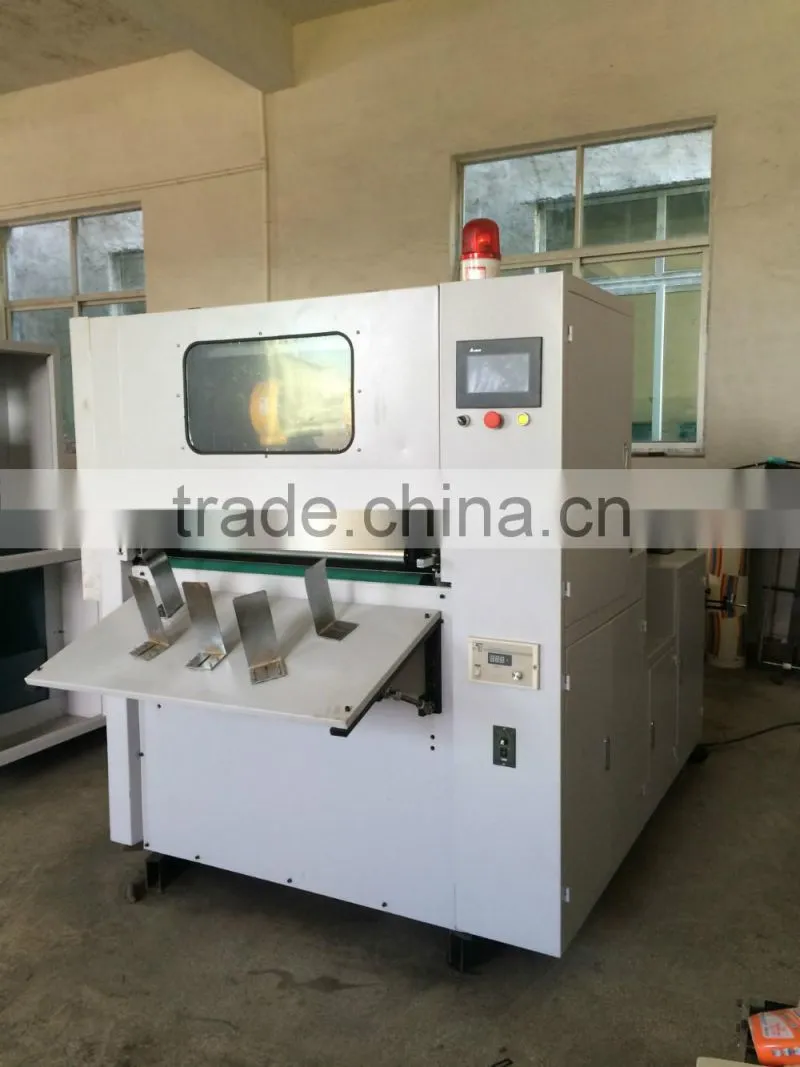

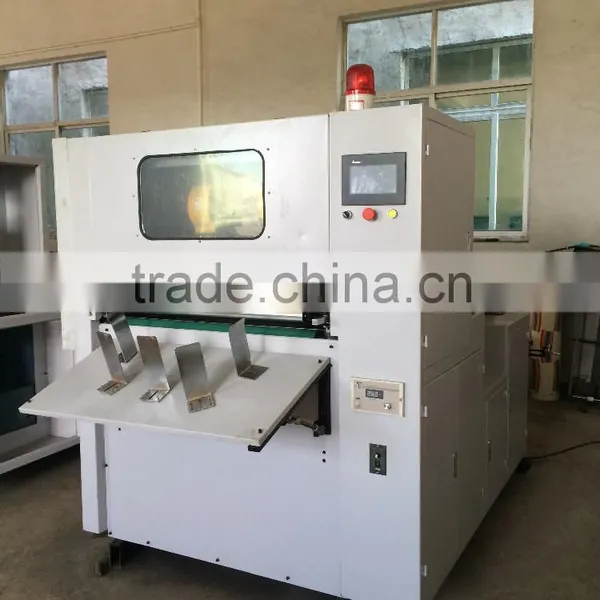

Help CenterMQ-850 Reel Feed Die Cutting Machine for Paper Cup With Cheap Price
Related Products
-
MQ-850 Full Automatic High Speed Platen Die Cutting Machine for Drink CupNegotiableMOQ: 1 Set -
MR-930 Small Rectangle Paper Box Die Roll Cutting and Creasing MachineNegotiableMOQ: 1 Set
-
MR-930 Automatic Paper Cup Fan Roll Die Cutting and Creasing MachineNegotiableMOQ: 1 Set
-
MR-850 China Best Automatic Stable Paper Cup/Bowl Roll Fedding Die Cutting MachineNegotiableMOQ: 1 Set
-
Disposable Chemical Cup Paper Die Cutting Machine Mr-850 , Hot Cup Die CuttingNegotiableMOQ: 1 Set
1, using imported electric eye tracking servo motor feeding, ensure the feed speed and die-cutting speed synchronization.
2, according to the figure after printing die cutting or no text pattern die cutting, can be used to
identify the color of light magic eye with servo motor, guarantee after printing product die-cutting
die cutting location and pattern of perfectly.Die cutting for no printing products, as long as the die
cutting length can be on the microcomputer controller Settings.3, die cutting knife size is 850 mm * 283 mm (also can be made according to user requirements).4, the highest die cutting speed can reach 12000 times per hour, has a very high production efficiency.5, die shear force provided by the 4 kw variable frequency motor, not only save electricity and can realize
stepless speed regulation, particularly with large flywheel to cooperate, make the die shear is large and stable,
and further to save electricity.6, adopts flat die cutting method, cutter plate for cheap.
Model |
MQ-850 |
Overall size |
3000*1786*1920mm |
G.W. |
2500kg |
Speed |
120-200 pcs/min |
Max Paper width |
860mm |
Min paper width |
100mm |
Diecut size |
850mm*283mm |
Suitable paper |
120-300GSM |
Control system |
AC servo motor |
Max cutting pressure |
2000N/cm³ |
Degree of automation |
Full automatic |
Stamping form |
Flaten press |
