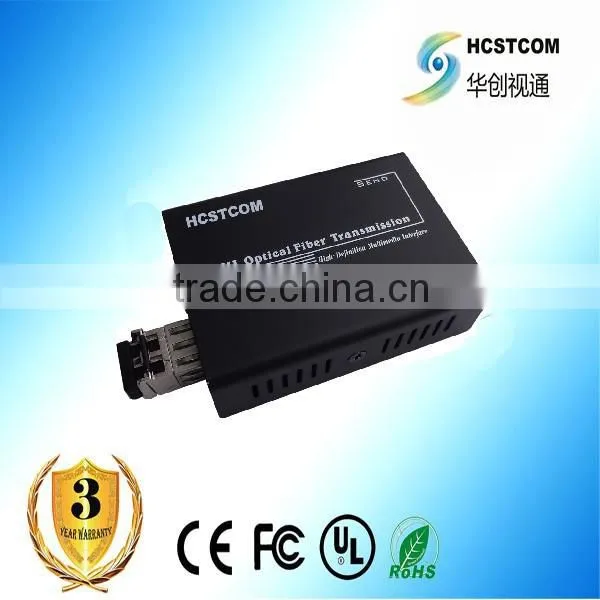

HCSTCOM ypbpr to HDMI converter / splitter / extender

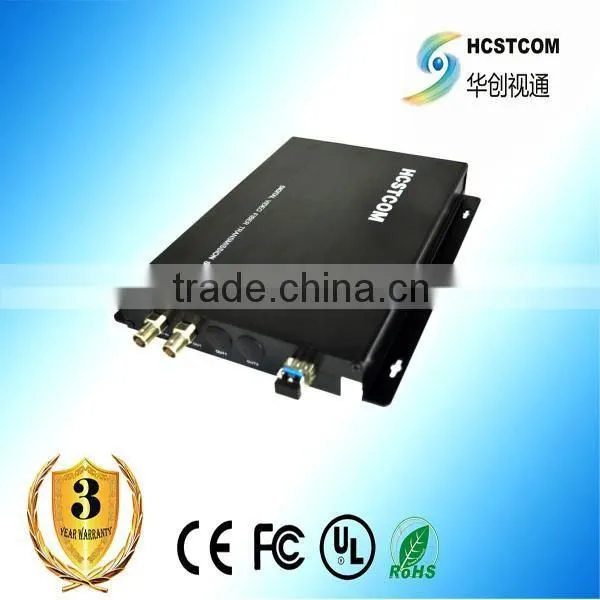

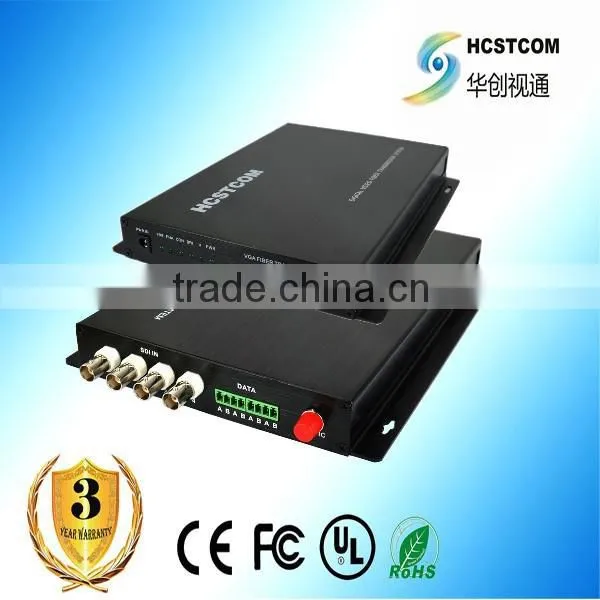

Media Converter/ 8 ch 4 ch 16 ch /1080P HD SDI/ASI/SDI/3G-SDI Digital Fiber Audio Video Optical Transceiver |
|
| Categories:3G/HD/SD-SDI Over Fiber | |
| Introduction: |
|
1. Overview
19.4Mb/s to 2.97Gb/s, 1-ch 3G/HD/SD-SDI, 1-ch reversed data RS485/RS232/RS422 and 1-ch analog audio over one fiber, 1310nm/1550nm and 16 kinds CWDM wavelength, SMPTE 305M (SDTi),SMPTE 310M (19.4Mb/s),SMPTE 344M (540Mb/s),M2S and DVB-ASI(270Mb/s), embedded audio, reclocker, hot-swappable, high reliability and performance
2. Features
« 1-channel 3G/HD/SD-SDI and 1-ch reversed data RS458/RS422/RS232 and 1-ch analog audio over one fiber
« Work ranges from 19.4Mb/s to 2.97Gb/s
« SMPTE 292M (1.485Gb/s) reclocker
« Support all 259M standard, from 143Mb/s to 360Mb/s
« Support SMPTE 305M (SDTi),SMPTE 310M (19.4Mb/s),SMPTE 344M (540Mb/s),M2S and DVB-ASI(270Mb/s)standard
« Output wavelength range 1310nm/1550nm and 16 kinds CWDM wavelength(ITU-T G.694.2 compliant)
« 120m automatic cable equalization, for all below 2.97 Gb/s(Belden 1694A)
« LED status indicators for the critical parameters
« Support hot plug
« Stand-alone, 1U rack mount and 4U rack mount
3. Specifications
a) Serial TV BNC input
Signal standard: SMPTE 424M,292M, 259M, 297M, 305M, 310M, M2S, DVB-ASI, DVB-SSI and other Telecom/Datacom rate (19.4Mb/s - 2.97Gb/s)
Input number: 1
Reflection loss: >15DB
Cable equalization: >100M@2970Mbps,Belden 1694A cable, >200m@1485Mbps,Belden 1694A cable, >350m@270Mbps,Belden 1694A cable connector :75Ω BNC b) Optic output
Output number: 1
Type: single mode (multimode optional)
Wavelength: 1310nm /1550nm
Reflection loss: > 15dB
Jitter: < 0.2UI
Connector : FC/PC (SC/PC optional) c) Serial TV BNC output (OE/EO)
Output number: 1
Signal level: 800mV nominal
Rise/drop time: 200ps nominal
Overshoot: < 10% amplitude
Reflection loss: > 15dB
Jitter: < 0.2UI
Connector: 75Ω BNC d) Analog audio
Input/ output impedance: 600Ωequilibrium
Input/output interface: XLR
Max. input/output level: +15 dBu
Frequency Response: 20Hz-20KHz,±0.1dB
SNR: > 85dB(A weighted)
THD+N: < 0.01%@1KHz
Crosstalk: < -90dB
e) Data
Channel: 1
Data format: RS-485 (full/half duplex) and support NRZ, RZI and Manchester
Data rate: DC to 100 Kb/s
Mode: Full/half duplex
Connector: wire connecting terminal
f) Electrical indicators
Operating temperature: 0°C~+50°C
Pressure: 1A@12VDC
Power: 12 W
EMI/RFI: line with FCC Part 15 Class A, EU EMC indicators Average time trouble-free: >100000 hours
4. Applications
Remote OB Van/Truck Video Feeds;
Broadcast Studio Camera Feeds;
Long-haul Signal Transport;
TV station/video conference;
Lecture Hall Projector Connectivity;
Medical/Surgical Room Broadcast;
Small corporate campus video links
|
ABOUT HCSTOM
Beijing Hcstcom Co., Ltd located in Beijing is one of the leading company in the area of video transmission in China. As a large manufacturer, we have mature and creative R&D team and QC department with more than 3000 square meters factory. We could meet any demands of OEM & ODM cooperation.Fast delivery, quality goods and timely services are our guarantee to our customers. Moving towards the world and being the best will always be our marketing philosophy.
Main products: 1-128 channel digital video fiber optic transmission for surveillance; 1-8 channel broadcast-quality video/audio fiber optic transmission; HD digital video fiber optic transmission: 3G/HD/SD-SDI digital video fiber optic transmission, HD/SD-SDI digital video fiber optic transmission, SD-SDI/ASI digital video fiber optic transmission, DVB-ASI/TS stream Optical transmission, VGA/DVI fiber optic transmission, VGA/RGBHV fiber optic transmission, DVI fiber optic transmission, HDMI fiber optic transmission, AES/EBU digital audio fiber optic transmission; Industrial Ethernet Series: industrial fiber optic transceiver, industrial Ethernet fiber optic switch, industrial data optical; Networks and communications series: 10/100/1000M fiber optic transceiver, Gigabit Fiber Transceiver, PDH/SDH Optical Multiplexer, Protocol converter; ASI to IP bidirectional Adapter, DS3 to ASI bidirectional Adapter, 4E1 to IP bidirectional Adapter, 4/8 channel Multiplexer, MPEG-2/4 IP Encoder, DVR digital video recorder, etc…
