Home > Electrical & Electronics > Telecommunication & Broadcasting > Fiber Optic Equipment > Video Extension Over Cat 5e Cat 5e KVM Extenders

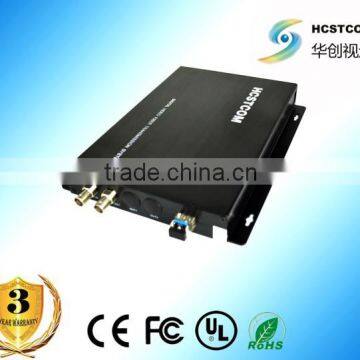

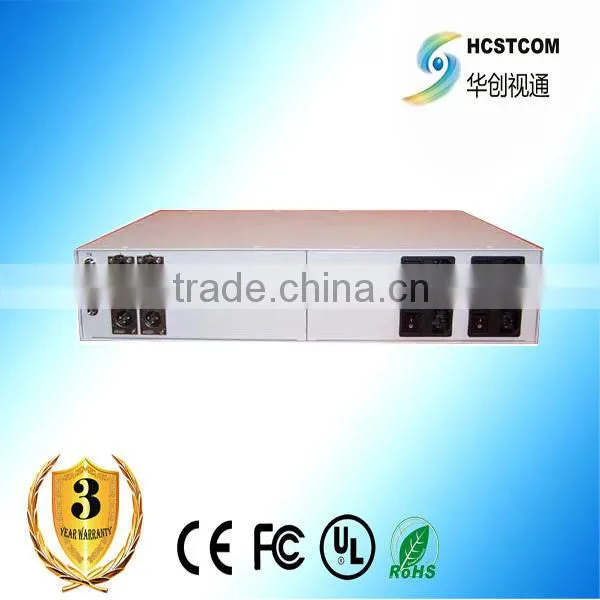

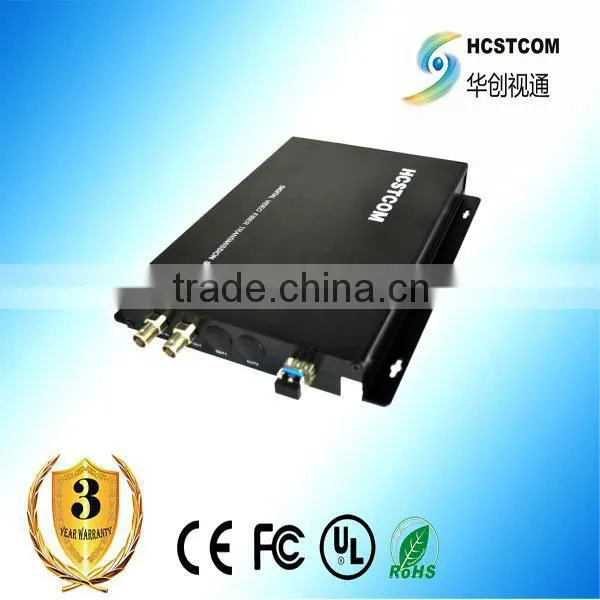

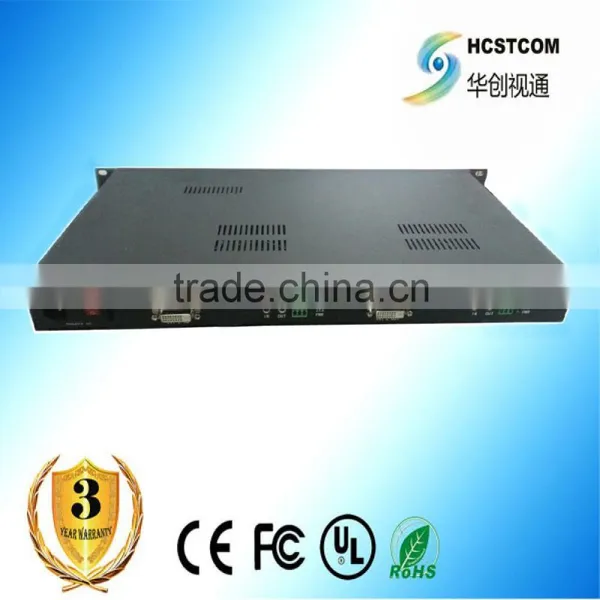

Video Extension Over Cat 5e Cat 5e KVM Extenders

Name: Video Extension Over Cat 5e Cat 5e KVM Extenders
Brand: HCSTCOM
SKU: 134173397
Availability: InStock

Video Extension Over Cat 5e Cat 5e KVM Extenders thumbnail-1

Video Extension Over Cat 5e Cat 5e KVM Extenders thumbnail-2

Video Extension Over Cat 5e Cat 5e KVM Extenders thumbnail-3

Video Extension Over Cat 5e Cat 5e KVM Extenders thumbnail-4

Video Extension Over Cat 5e Cat 5e KVM Extenders thumbnail-5

Video Extension Over Cat 5e Cat 5e KVM Extenders thumbnail-6

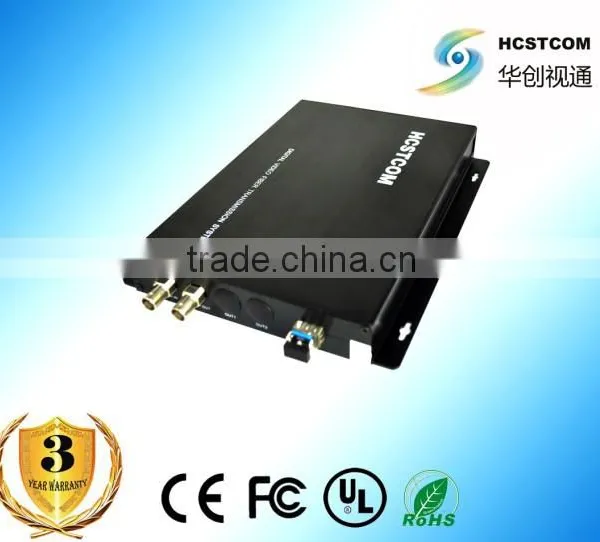

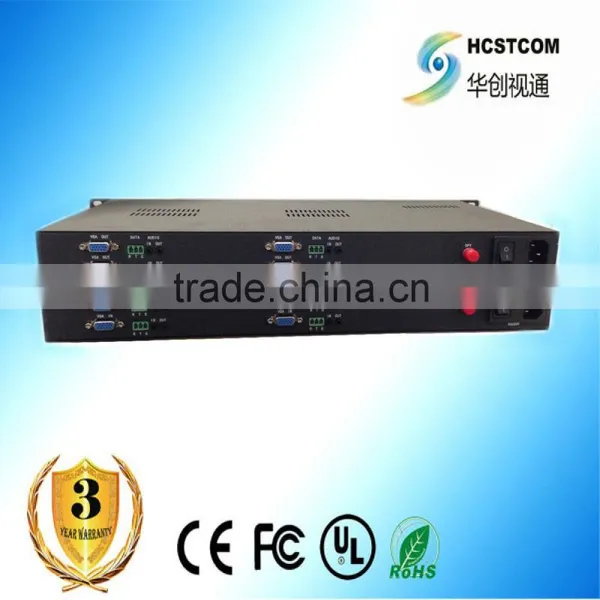

Video Extension Over Cat 5e Cat 5e KVM Extenders photo-1

Video Extension Over Cat 5e Cat 5e KVM Extenders photo-2

Video Extension Over Cat 5e Cat 5e KVM Extenders photo-3

Video Extension Over Cat 5e Cat 5e KVM Extenders photo-4

Video Extension Over Cat 5e Cat 5e KVM Extenders photo-5

Video Extension Over Cat 5e Cat 5e KVM Extenders photo-6

US$ 2,000 - 4,000 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Beijing, China

Brand Name:

HCSTCOM

Model Number:

HC 3010-T/R

Contact Supplier Request Quote Chat Now

Beijing Hcstcom Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Beijing, China

Brand Name HCSTCOM

Model Number HC 3010-T/R

Name:

Video Extension over Cat 5e Cat 5e KVM Extenders

3G HD-SDI Extenders, HD-SDI Fiber Extenders for Broadcast

SDI/HD-SDI/3G-SDI Video Matrix Switch

Features

« 16-ch unidirectional HD-SDI video with embedded audio over one fiber

« Range from 19.4Mb/s to 1.485Gb/s

« SMPTE 292M (1.485Gb/s) clock recovery

« Support all SMPTE 295M standard, 143Mb/s - 360Mb/s

« Support SMPTE 305M (SDTi), SMPTE 310M (19.4Mb/s), SMPTE 344M (540Mb/s),M2S and DVB-ASI (270Mb/s) standard

« Output wavelength 1310nm,1550nm and 16 types of CWDM (ITU-T G.694.2 compliant)

« 150m automatic cable equalization, allthe1.485 Gb/sratebelow(Belden 1694A)

« Optional network management system

« LED status indicators monitor the critical parameters

« Optional network system

« Support hot swap

« Support stand-alone, 1U rack mount and 4U rack mount

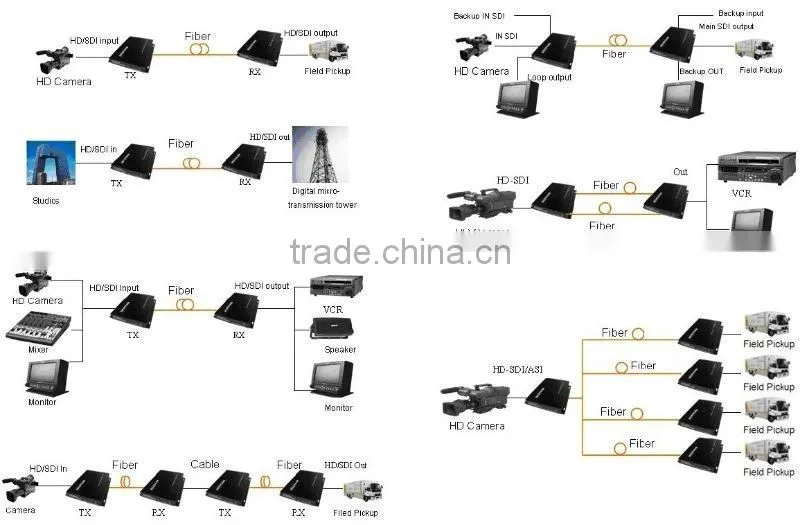

Applications

« Remote OB Van/Truck Video Feeds

« Broadcast Studio Camera Feeds

« Long-haul Signal Transport

« TV station/video conference

« Lecture Hall Projector Connectivity

« Medical/Surgical Room Broadcast

« Building to Building video conference calling

« Small corporate campus video links

Ordering Information

HD-SDI Unidirectional Fiber Optic Transmitter/Receiver

HC3016-T

16-Ch HD-SDI with embedded audio input, single mode(multimode optional), single fiber, FC/PC fiber connector, BNC video interface, 0-120km, stand-alone or 1U rack mount

HC3016-R

16-Ch HD-SDI with embedded audio output, single mode(multimode optional), single fiber, FC/PC fiber connector, BNC video interface, 0-120km, stand-alone or 1U rack mount

-family:"Arial","sans-serif";mso-font-kerning: 0pt'>TV station/video conference

« Lecture Hall Projector Connectivity

« Medical/Surgical Room Broadcast

« Building to Building video conference calling

« Small corporate campus video links

ABOUT HCSTOM

Beijing Hcstcom Co., Ltd located in Beijing is one of the leading company in the area of video transmission in China. As a large manufacturer, we have mature and creative R&D team and QC department with more than 3000 square meters factory. We could meet any demands of OEM & ODM cooperation.Fast delivery, quality goods and timely services are our guarantee to our customers. Moving towards the world and being the best will always be our marketing philosophy.

Main products: 1-128 channel digital video fiber optic transmission for surveillance; 1-8 channel broadcast-quality video/audio fiber optic transmission; HD digital video fiber optic transmission: 3G/HD/SD-SDI digital video fiber optic transmission, HD/SD-SDI digital video fiber optic transmission, SD-SDI/ASI digital video fiber optic transmission, DVB-ASI/TS stream Optical transmission, VGA/DVI fiber optic transmission, VGA/RGBHV fiber optic transmission, DVI fiber optic transmission, HDMI fiber optic transmission, AES/EBU digital audio fiber optic transmission; Industrial Ethernet Series: industrial fiber optic transceiver, industrial Ethernet fiber optic switch, industrial data optical; Networks and communications series: 10/100/1000M fiber optic transceiver, Gigabit Fiber Transceiver, PDH/SDH Optical Multiplexer, Protocol converter; ASI to IP bidirectional Adapter, DS3 to ASI bidirectional Adapter, 4E1 to IP bidirectional Adapter, 4/8 channel Multiplexer, MPEG-2/4 IP Encoder, DVR digital video recorder, etc…

Successful project:

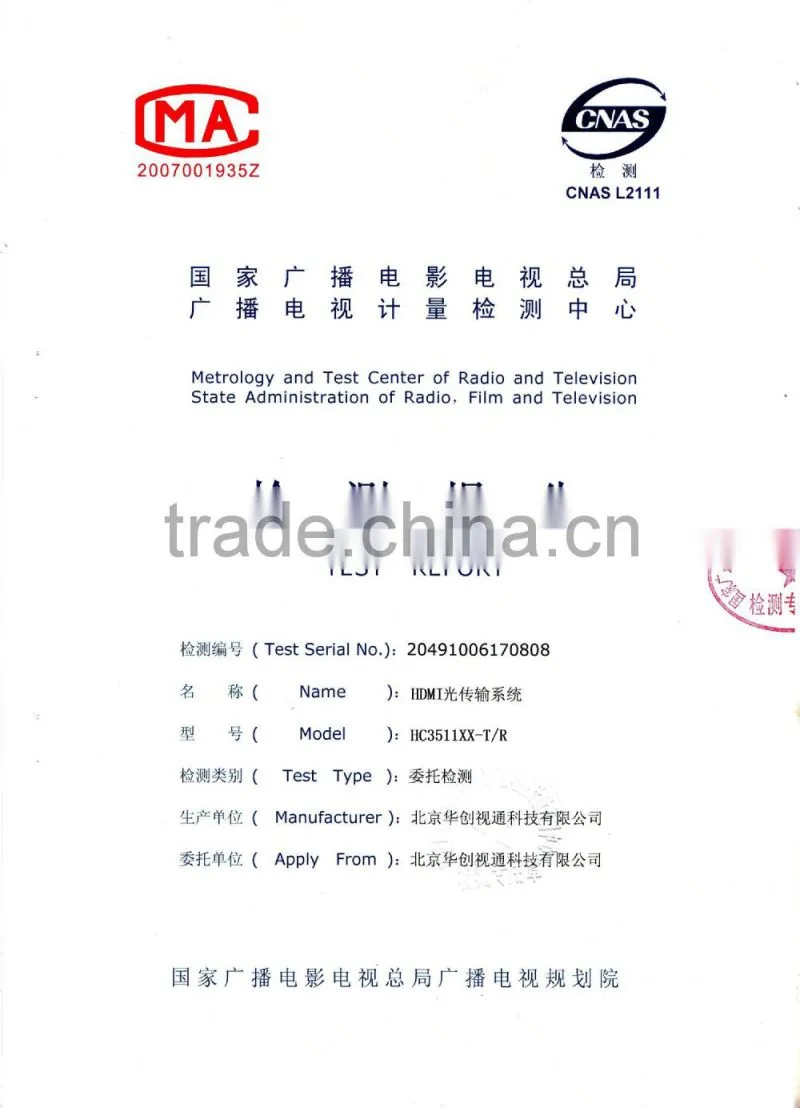

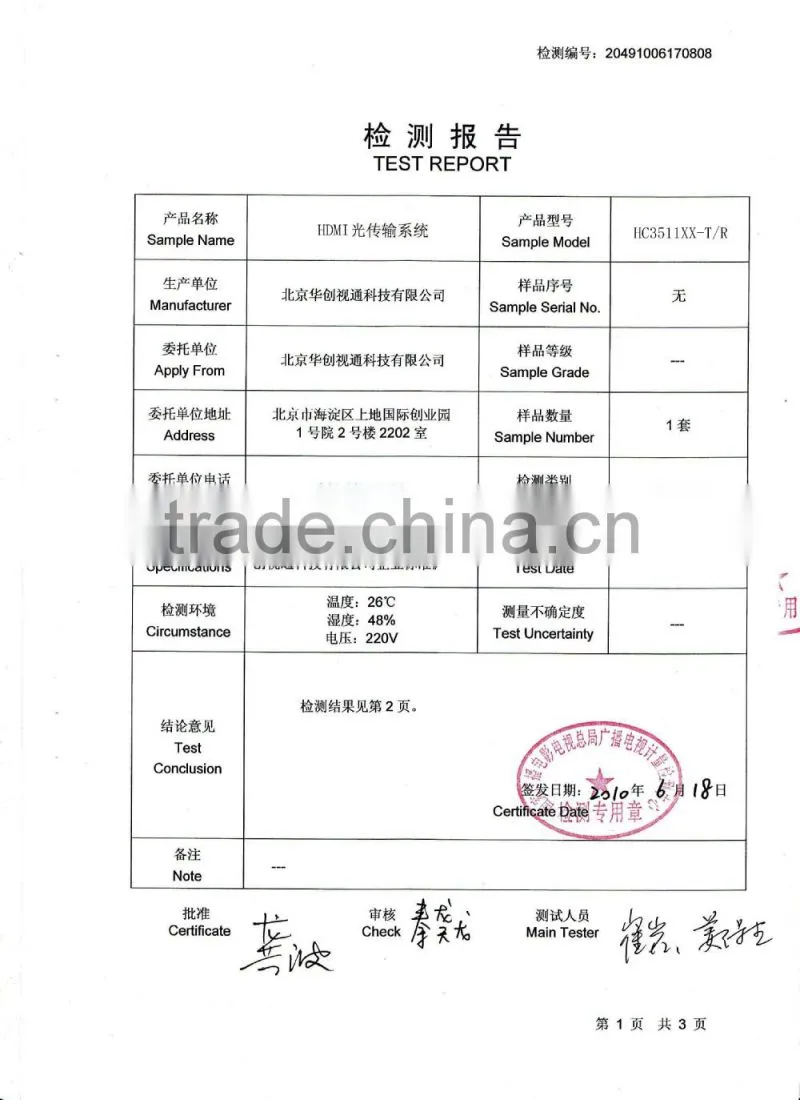

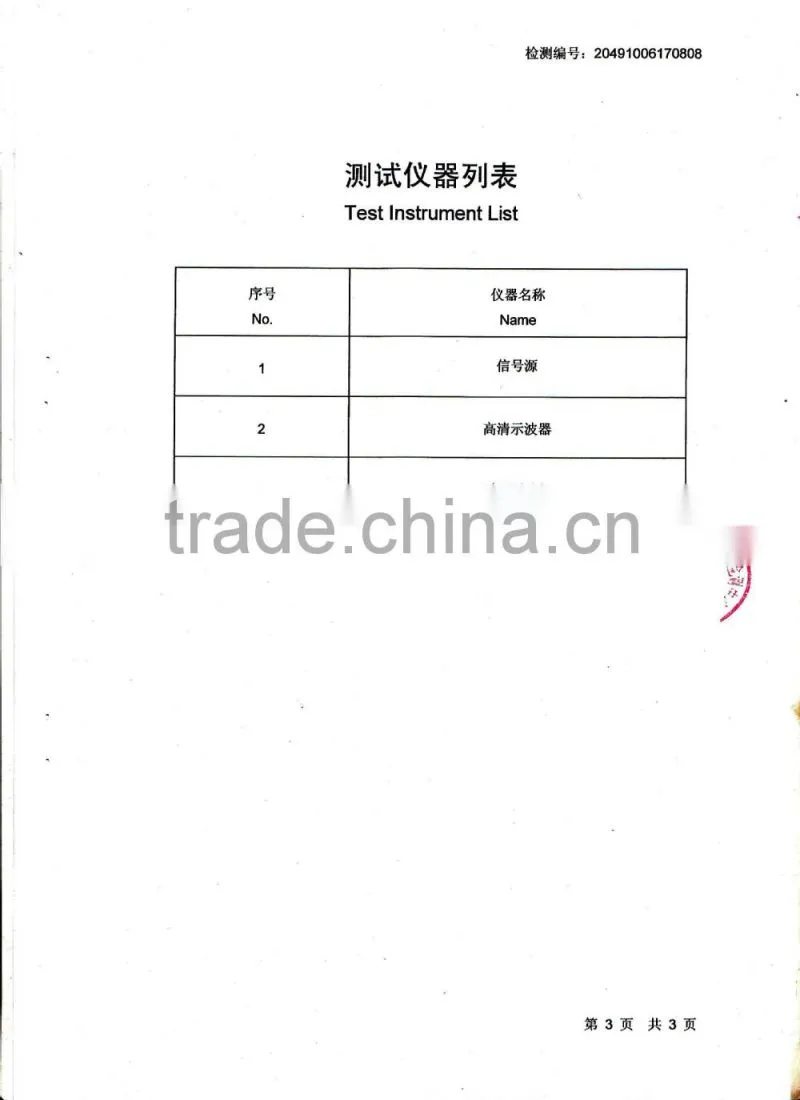

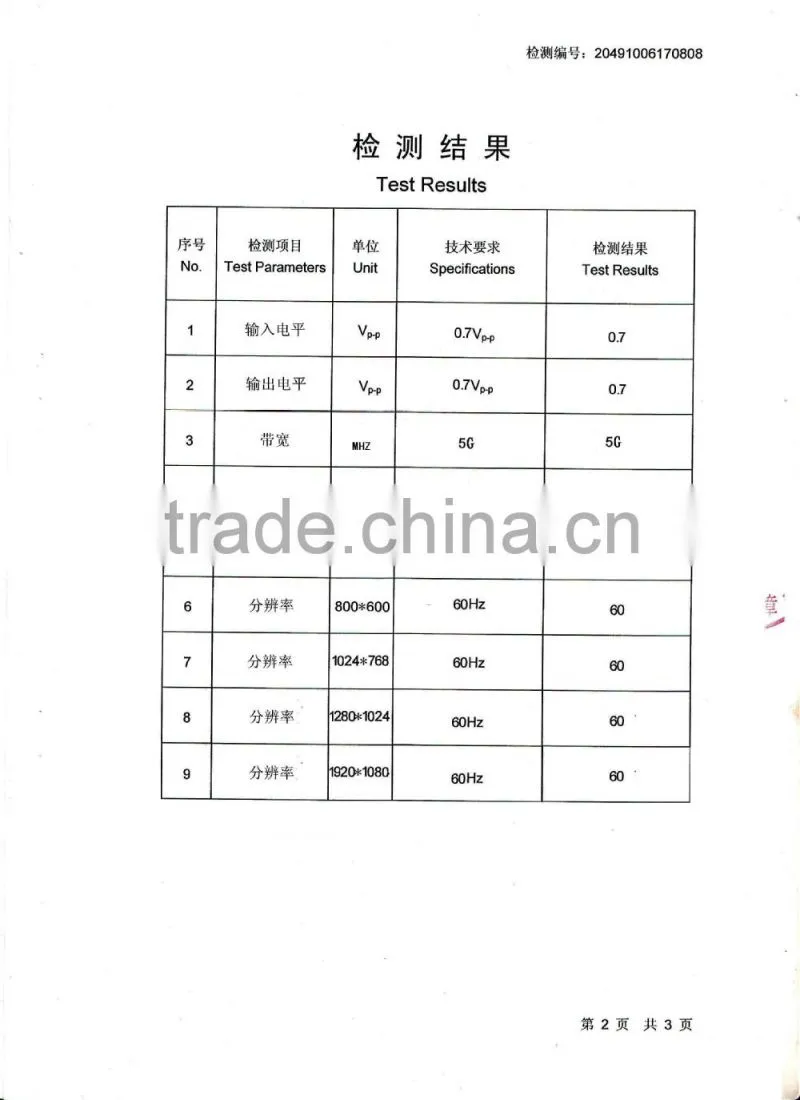

Test Result by one of our partner

Our team:
