Specifications
1.VGA Fiber Optic Converter with data and audio2. uncompressed technology
st effective.
4.support OEM
5. Single-mode

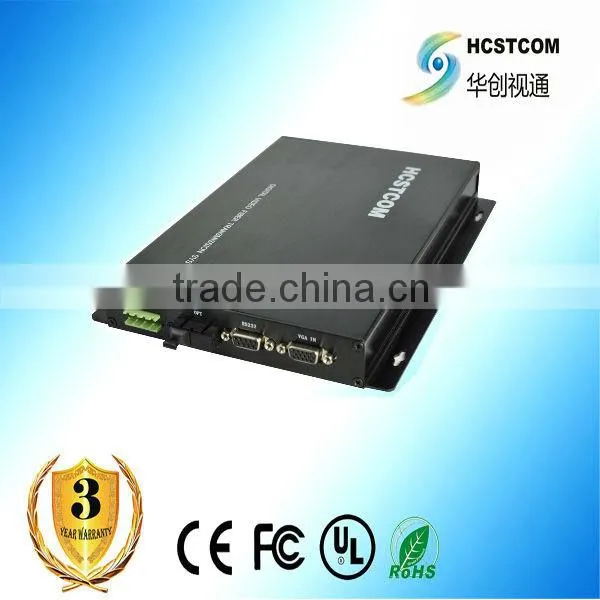

VGA fiber extender with data and audio
1 OVERVIEW
HC3711 digitally transmits high-resolution RGB (up to WXGA) and stereo audio over one fiber, single-mode, 1310nm wavelength. Point-to-point, point-to-multipoint and drop-and-repeat applications, it supports VGA, SVGA, XGA and WXGA (640 x 480, 1024*768, and 1280*1024, up to 1366 x 768) or RGBHV format.
2 SPECIFICATION
Video | |
No. |
1-channel |
Video type |
RGB with single and sync H,V |
Input level |
0.7Vp-p |
Output level |
0.7Vp-p |
Bandwidth (-3 dB) |
300MHz |
Bit width |
10bit |
Resolution |
VGA 640x480 60,70,75,85Hz |
SVGA 800x600 60,70,75,85Hz | |
XGA 1024x768 60,70,75,85Hz | |
SXGA 1280x1024 60,70,75,85Hz | |
Interface |
HD-15(DVI-I option) |
Audio | |
No. of channels |
1 |
Input/ output level |
5Vp-p,unequilibrium |
Total harmonic distortion |
≤1% |
Bandwidth (-3 dB) |
20~20KHz |
Audio coding |
24bit |
Input/ output impedance |
600Ω or 100KΩ |
Weighted SNR |
≥90 dB |
Connector |
Standard 3.5 mm stereo headphone jack |
RS232 indication | |
Input/output interface |
9-hole standard RS232 socket |
Signal rate |
≥115200bps |
Signal level |
RS232 standard level |
Optics | |
Wavelength |
1310nm |
Fiber optic |
Single-mode |
Max. link loss |
12dB(option) |
Output optical power |
10dBm |
Receiver sensitivity |
≥20dBm |
Data rate |
1.25 |
Connector |
SC (FC/ST option) |
Switching indication | |
Input type |
5.08 mm focal length of the Phoenix terminal, switch contact output |
Output type |
5.08 mm focal length of the Phoenix terminal, switch contact output, capacity 24VDC/1A |
Reaction speed |
Better than0.1 second |
Power and environmental indication | |
Freestanding power |
5W |
Dimension |
237mm * 180mm *28.5mm(high) |
Power adapter |
220VAC to 12VDC/1A |
Temperature rage |
-40°C to +70°C |
Relative humidity |
< 95% (no condensation) |
4 APPLICATION (FOR YOUR REFERENCE)
| Successful cases (partial) | |||
| No | END USER | project or application | referred products |
| 1 | Harbin TV | live broadcast and rebroadcast | Broadcast quality AV transceivers |
| 2 | Shenyang TV | vocal concert and evening party live broadcast | Broadcast quality AV transceivers |
| 3 | Chongqing TV | CQU Anniversary Great evening party live broadcast | Broadcast quality AV transceivers |
| HD-SDI series transceiver | |||
| 4 | HNTV | outdoor great entertainment live broadcast | Broadcast quality AV transceivers |
| HD-SDI series transceiver | |||
| 5 | SCTV | Channel 5 live broadcast | Broadcast quality AV transceivers |
| 6 | AHTV | outdoor live broadcast | HD-SDI series transceiver |
| 7 | Sinopec | HD video conference and meeting | HD-SDI series transceiver |
| 8 | Academy of Armored Force Engineering, | HD video conference and meeting | HD-SDI series transceiver |
| Oversea successful cases ( partial) | |||
| No | countries | location and application | referred products |
| 1 | Russia | Irkutsk oblast broadcast | Broadcast quality AV transceivers |
| 2 | Russia | KMAO,Nyagan,broadcast | Broadcast quality AV transceivers |
| 3 | Germany | Saxony, video transmission for big screen | HD-SDI series transceiver |
| 4 | Mongolia | National radio station | Broadcast quality AV transceivers |
| 5 | Australia | Queensland, video transmission | VGA series transceiver |
| 6 | Pakistan | Islamabad PTV SD video transmission | SD-SDI series transceiver |
| 7 | Iran | Isfahan Surveillance | serveillance transceiver |
Our fab:
