Specifications
1.DVI fiber extender2.1-ch VGA/DVI/audio/RS232
3.1920X1080@25fps
4.SC/PC,0-120km
5.CE FCC RoHS
Product name: DVI fiber extender
Product category: Digital HD video fiber optic transmission system
Product introduction
1. Overview
1-channel VGA/DVI video, 1-ch stereo audio, 1-ch RS232 data, 10-bit digital video encoding and uncompressed
2. Features
« 1-ch VGA/DVI over one fiber
« 1-ch stereo audio equidirectional transmission
« 1-ch RS232 data with the transmission
« 10-bit digital video encoding and uncompressed transmission technology
« Be used in long-distant transmission of industrial monitoring and large venues, etc.
« Plug and play at any time, no adjustment and could be up to image output of high-quality
« Power and indicators of other parameter could monitor system status
« Synchronous optic
« Automatic identification of input video format, receiver output meets industry-standard video
« Use DC-DC power conversion technology, effectively resist the power environmental interference
3. Specifications
a) Video
Channel: 1
Format: RGB with stand-alone sync H and V
Input level: 0.7Vp-p
Output level: 0.7Vp-p
Digital bits wide: 10-bit
Resolution:
•640X480 @ 70fps •1920X1080 @ 25fps
•1024X768 @ 60fps •800X600 @ 70fps
•1600X1200 @ 30fps • 1280X1024 @ 30fps
•720X576 @ 50fpsv •720X480 @ 60fps
•1440x900 @ 30fps •1280X720 @ 30fps
•1680x1050 @ 30fps •1400 x1050 @ 30fps
•1360x768 @ 30fps
Connector: HD-15(DVI-I optional)
b) Audio
Channel: single
Input/output level: 5Vp-p, non-equilibrium
Connector: 3.50mm standard stereo headphone jack
c) RS232 indicator
Input/ output interface: 9-hole standard RS232 socket
Signal rate: ≥115200bps
Signal level: RS232 standard level
d) Switch indicator
Input type: 5.08 mm terminal pitch Phoenix, switching contact output
Output type: 5.08mm terminal pitch Phoenix, switching contact output, capacity 24VDC/1A
Reaction speed: ≥0.1 second
e) Optics
Fiber optic: 1000BASE_LX standard of EEE802.3z
Type: 1 single-mode/code
Wavelength: 1310nm
Transmit power: -9.5~-3dBm, average power @850nm
Receiver sensitivity: -23dBm average power @850nm
Output modulation amplitude: 180μW
Input modulation amplitude: ≤15μW
Relative signal strength from: -11rDB/Hz
Return loss: ≤10 dB
Transmission bit rate: 240M Hz~1.65G Hz
Transmission distance: 1m~20km single-mode
f) Power and environmental indicator
Stand-alone power: 5W
Power pressure: 9-12VD
Power adapter: 220VAC to 12VDC/1A
Operating temperature: -40°C to +70°C
Storage temperature: -40°C~+80°C
Relative humidity: < 95% (no condensation)

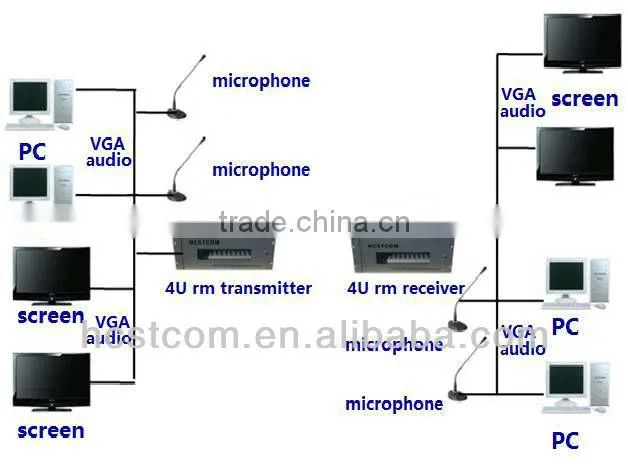

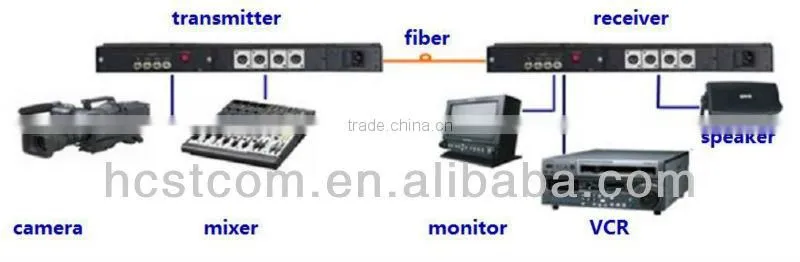

4. Applications
Remote OB Van/Truck Video Feeds;
Broadcast Studio Camera Feeds;
Long-haul Signal Transport
TV station/video conference;
Lecture Hall Projector Connectivity
Medical/Surgical Room Broadcast
Small corporate campus video links.
5. Ordering information
DVI fiber extender
HC3711B-T
VGA Digital Video Fiber Optic Transmitter, 1-ch VGA/DVI video input, 1-ch stereo audio input and 1-ch data RS232, single mode, single fiber, SC/PC fiber connector, headphone jack, RS232 interface, standard 20km, stand-alone type
HC3711B-R
VGA Digital Video Fiber Optic Receiver, 1-ch VGA/DVI video output, 1-ch stereo audio output, and 1-ch data RS232, single mode, single fiber, SC/PC fiber connector, headphone jack, RS232 interface, standard 20km, stand-alone type
