Description

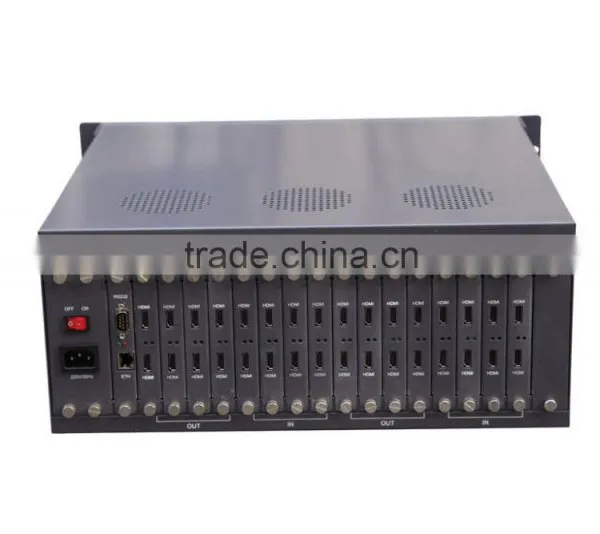

HDMI Audio/Video Matrix Switcher is a professional matrix switcher of high-performance embedded intelligent control. It provides a peak data transfer rate of 3.25Gbps and perfectly supports synchronous switching of HDMI audio/video signals, adapts to 7 x 24 uninterrupted work and the average time between failures is more than 30,000 hours, which provides a stable and reliable high-definition audio and video signal transmission switching hub for the system. It is widely applied in digital video multi-screen display systems, radio and television systems, multimedia video conference, large screen display systems, high definition television teaching, visual command and control centers, medical teaching, etc
Features
- Compatible with HDMI1.3, support HDCP
- Support V.X.Color, deep color to max 36bit
- Support automatically EDID
- Built in self-adaptable equalizer, support HDMI cable to 20meters(AWG24)
- Power off self-protection
- High-quality, high-volume production, high compatibility and stability, and highly cost effective;
- Front panel LED shows switching status
- Switching mode: RS-232, panel buttons, NET(optional) Local IR
- 1U design for easy installation
Specification
Category |
HDMI Matrix Switcher |
HDMI video | |
Protocol |
support HDMI1.3 protocol, HDCP1.3 protocol, |
|
DVI1.0 protocol |
Gain |
0 dB |
Pixel Bandwidth |
225MHz, full digital |
Max transmission rate |
< 10.2Ghz |
Max supported resolution |
HDPC: 1920x1200P@ 60_24bit; |
|
HDTV: 1920x1080P@60_36bit |
Clock Jitter |
<0.15 Tbit |
Risetime |
<0.3Tbit (20%--80%) |
Falltime |
<0.3Tbit (20%--80%) |
Max transmitting delay |
5nS(±1nS) |
Switching speed |
200 ns(Max duration) |
HDMI video input | |
Interface |
HDMI-A female interface |
Signal strength |
T.M.D.S +/- 0.4Vpp |
Max/min Level |
T.M.D.S 2.9V/3.3V |
Input EDID |
EDID can be erased presently |
Impedance |
50Ω |
The maximum error of the dc bias |
15mV |
Suggested Max input distance |
When it is less than20 meters and at the situation |
HDMI video output | |
Interface |
|
Max/min Level |
HDMI-A female interface |
Impedance |
T.M.D.S 2.9V/3.3V |
Suggested Max input distance |
50Ω |
|
When it is less than20 meters and at the situation |
|
of1920x1200@60, (it is Recommend certification of |
Serial port control |
special HDMI wire, such as Molex TM's wire) |
RS-232 control interface | |
Serial control interface |
RS-232, 9-pin female D-type interface |
Baud rate and protocol |
Baud rate: 9600, data bit:8, stop bit: 1, no parity |
Structure of serial control interface |
2 = TX, 3 = RX, 5 = GND |
Working Environment | |
Power supply |
100VAC~240VAC, 50/60 Hz, international adaptive power |
Temperature |
Storage and operating temperature: -40°~ +70°C |
Humidity |
Storage and operating humidity: 10% ~ 90% |
MTBF |
60,000 hours |
