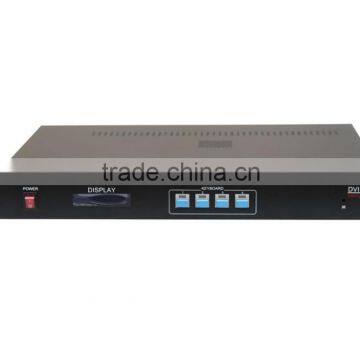

Help CenterDVI Matrix Switcher, Mixed HD Matrix Seemless
Related Products
-
SDI ASI Matrix /SDI Matrix SwitcherUS$ 1,000 - 1,000MOQ: 1 Piece -
Seemless Mixed Matrix/SDI VGA,DVI, HDMI,CVBS MatrixUS$ 2,000 - 2,000MOQ: 1 Piece
-
16X16 SDI Matrix Switcher Compatible With SD SDI, ASIUS$ 1,000 - 1,000MOQ: 1 Piece
-
8x8 DVI Matrix Switcher, DVI Mixed MatrixUS$ 200 - 200MOQ: 1 Piece
-
32X32 DVI Matrix / DVI Video Matrix SwitcherUS$ 200 - 200MOQ: 1 Piece
Description
DVI Audio/Video Matrix Switcher is a professional matrix switcher of high-performance embedded intelligent control. It provides a peak data transfer rate of 3.25Gbps and perfectly supports synchronous switching of HDMI audio/video signals, adapts to 7 x 24 uninterrupted work and the average time between failures is more than 30,000 hours, which provides a stable and reliable high-definition audio and video signal transmission switching hub for the system. It is widely applied in digital video multi-screen display systems, radio and television systems, multimedia video conference, large screen display systems, high definition television teaching, visual command and control centers, medical teaching, etc
Features
- Compatible with DVI1.0
- Support V.X.Color, deep color to max 36bit
- Support automatically EDID
- Built in self-adaptable equalizer, support DVI cable to15meters(AWG24)
- Power off self-protection
- High-quality, high-volume production, high compatibility and stability, and highly cost effective;
- Front panel LED shows switching status
- Switching mode: RS-232, panel buttons, NET(optional) Local IR
- 1U design for easy installation
Specification
Category |
HDMI Matrix Switcher |
DVI video | |
Gain |
0 dB |
Pixel Bandwidth |
225MHz, full digital |
Interface Bandwidth |
3.25Gbps, full digital |
Max Supported Resolution |
HDPC: 1920x1200P@ 60_24bit; |
|
HDTV: 1920x1080P@60_36bit |
Clock Jitter |
<0.15 Tbit |
Risetime |
<0.3Tbit (20%--80%) |
Falltime |
<0.3Tbit (20%--80%) |
Max Transmitting Delay |
5nS(±1nS) |
Switching Speed |
200 ns Max duration |
Signal Type |
DVI 1.0 standard DVI-D full digital T.M.D.S signal |
DVI video input | |
Interface |
DVI-D female interface |
Signal Strength |
T.M.D.S +/- 0.4Vpp |
Max/Min Level |
T.M.D.S 2.9V/3.3V |
Input EDID |
EDID can be erased presently |
Impedance |
50Ω |
The Maximum Error of The DC Bias |
15mV |
Suggested Max Input Distance |
When it is less than20 meters and at the situation |
|
of1920x1200@60,(it is Recommend certification of |
|
special DVI wire, such as Molex TM's wire) |
DVI video output | |
Interface |
DVI-D female interface |
Max/Min Level |
T.M.D.S 2.9V/3.3V |
Impedance |
50Ω |
Suggested Max Output Distance |
When it is less than 20 meters and at the situation |
|
of1920x1200@60, (it is Recommend certification of |
|
Special DVI wire, such as Molex TM's wire) |
RS-232 control interface | |
Serial control interface |
RS-232, 9-pin female D-type interface |
Baud rate and protocol |
Baud rate: 9600, data bit:8, stop bit: 1, no parity |
Structure of serial control interface |
2 = TX, 3 = RX, 5 = GND |
Working Environment | |
Power supply |
100VAC~240VAC, 50/60 Hz, international adaptive power |
Temperature |
Storage and operating temperature: -40°~ +70°C |
Humidity |
Storage and operating humidity: 10% ~ 90% |
MTBF |
60,000 hours |
