Specifications
1.HDMI extender over fiber for PIS2.1-ch HDMI input 2-ch output
3.1920x1200,1080p
4.0-120km
5.FCC CE RoHS
Product name: HDMI fiber extender for PIS
Product category: Digital HD video fiber optic transmission system
Product introduction 1. Overview HC3511 HDMI could achieve HDMI digital audio/video signal long-distance transmission. No attenuation, bandwidth, good anti-jamming performance, security performance, small size, light weight and so on during transmission, with incomparable advantages in the long distance and special environment; adoption HDMl interface, one HDMl cable connects HDTV, which could be up to crisp and clear image, 192K sampling rate and 8-channel high-fidelity audio; save construction cost and complexity of the alignment, also ensure high quality. HC3511-T is optical transmitter; HC3511-R is optical receiver, conjunction with the two
2. Features « Support highest resolution: 1920×1200@60Hz « Support HDTV highest resolution up to 1080P « Support HDMI1.3 interface, compatible with HDMI1.2a standards « Support 1-channel HDMI with 1-channel embedded audio « SC interface, hot swap « Single-mode, one 1-core fiber 3. Specifications a) video PC highest resolution: 1920×1200@60Hz HD-DVD resolution: 720p/1080i/1080p Signal bandwidth: 1.65Gpbs TDMS Signal pressure: 1.2volts p-p DDC signal pressure: 5volts p-p (TTL) b) optics Type: meet 1000BASE_LX optical connection Wavelength: 1310nm Launch power: -9.5~-3dBm, average power @850nm Receiver sensitivity: -23dBm Output Modulation amplitude: 180μW Input Modulation amplitude: ≤15μW Signal strength: -116 DB/Hz Return loss: ≤10 dB Transmission bit rate: 240M Hz~1.65G Hz Transmission distance: 1m-500m multimode, 1m-10Km single-mode c) power Consumption: 5W (max.) Pressure: 9-12VD d) Other Operating temperature: -25°C~+70°C Storage temperature: -40°C~+80°C Relative humidity: 0~95%(no condensation) Dimension: 160*110*40cm

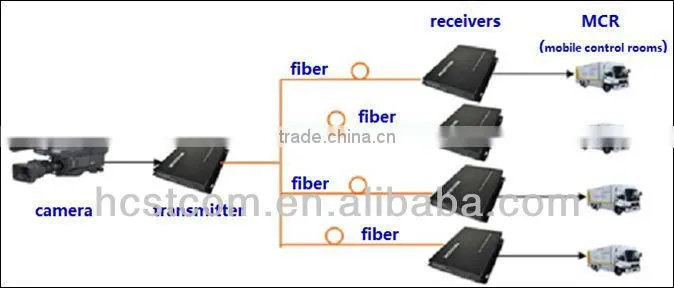

4. Applications Remote OB Van/Truck Video Feeds; Broadcast Studio Camera Feeds; Long-haul Signal Transport; TV station/video conference; Lecture Hall Projector Connectivity; Medical/Surgical Room Broadcast; Small corporate campus video links
5. Ordering information HDMl High-definition fiber optic transmission HC3511-T 1-ch HDMI with embedded audio input, 4-core fibers, single-mode (multimode optional), Stand-alone, standard 20km, and SC/PC connector, uncompressed technology HC3511-R 2-ch HDMI with embedded audio output, 4-core fibers, single-mode (multimode optional), Stand-alone, standard 20Km, SC/PC connector, uncompressed technology
6. Successful cases (Partial)
Our fab:
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
