Specifications
VGA fiber extender/VGA extender over fiberuncompressed transmission
over fiber transmitter and receiver
We are your best choice for Chinese parnter
Because of 10 year experienced, 3 year warranty, professional technical service and good price
Customer design and special requirements are always welcome!
1 OVERVIEW
HC3711 digitally transmits high-resolution RGB (up to WXGA) and stereo audio over one fiber, single-mode, 1310nm wavelength. Point-to-point, point-to-multipoint and drop-and-repeat applications, it supports VGA, SVGA, XGA and WXGA (640 x 480, 1024*768, and 1280*1024, up to 1366 x 768) or RGBHV format.
2 FEATURES
# 1-ch VGA/RGBHV video signal and 1-ch stereo audio over one fiber
# 1-ch RS232 data, 1-ch switch, with the same direction (optional bidirectional transmission)
# Sampling clock phase adjustment
# Image brightness adjustment
# Image contrast adjustment
# 10-bit digital video encoded and uncompressed transmission technology
# The parameters could be saved, and also could be saved after power is turned-off
# Plug and play at any time, basically no need to be adjusted
# Automatic identification of input video format, receiver output meets industry-standard video
# Using DC-DC power conversion technology, could effectively resist environmental interference of power
# 4U rack mount, 1U rack mount and stand-alone
# Lower power consumption and free installation, Jitter
3 SPECIFICATION
Video | |
No. |
1-channel |
Video type |
RGB with single and sync H,V |
Input level |
0.7Vp-p |
Output level |
0.7Vp-p |
Bandwidth (-3 dB) |
300MHz |
Bit width |
10bit |
Resolution |
VGA 640x480 60,70,75,85Hz |
SVGA 800x600 60,70,75,85Hz | |
XGA 1024x768 60,70,75,85Hz | |
SXGA 1280x1024 60,70,75,85Hz | |
Interface |
HD-15(DVI-I option) |
Audio | |
No. of channels |
1 |
Input/ output level |
5Vp-p,unequilibrium |
Total harmonic distortion |
≤1% |
Bandwidth (-3 dB) |
20~20KHz |
Audio coding |
24bit |
Input/ output impedance |
600Ω or 100KΩ |
Weighted SNR |
≥90 dB |
Connector |
Standard 3.5 mm stereo headphone jack |
RS232 indication | |
Input/output interface |
9-hole standard RS232 socket |
Signal rate |
≥115200bps |
Signal level |
RS232 standard level |
Optics | |
Wavelength |
1310nm |
Fiber optic |
Single-mode |
Max. link loss |
12dB(option) |
Output optical power |
10dBm |
Receiver sensitivity |
≥20dBm |
Data rate |
1.25 |
Connector |
SC (FC/ST option) |
Switching indication | |
Input type |
5.08 mm focal length of the Phoenix terminal, switch contact output |
Output type |
5.08 mm focal length of the Phoenix terminal, switch contact output, capacity 24VDC/1A |
Reaction speed |
Better than0.1 second |
Power and environmental indication | |
Freestanding power |
5W |
Dimension |
237mm * 180mm *28.5mm(high) |
Power adapter |
220VAC to 12VDC/1A |
Temperature rage |
-40°C to +70°C |
Relative humidity |
< 95% (no condensation) |
4 APPLICATION
# Remote OB Van/Truck Video Feeds
# Broadcast Studio Camera Feeds
# Long-haul Signal Transport
# TV station/video conference
# Lecture Hall Projector Connectivity
# Medical / Surgical Room Broadcast
# Small corporate campus video links
# Building to Building video conference calling

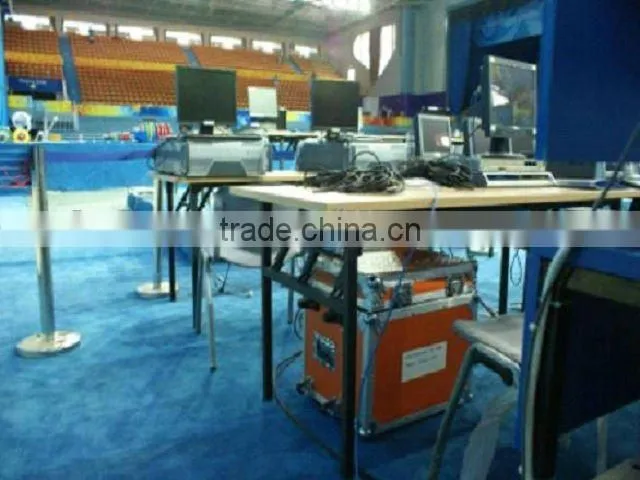

5 SUCCESSFUL CASES (PARTIAL)

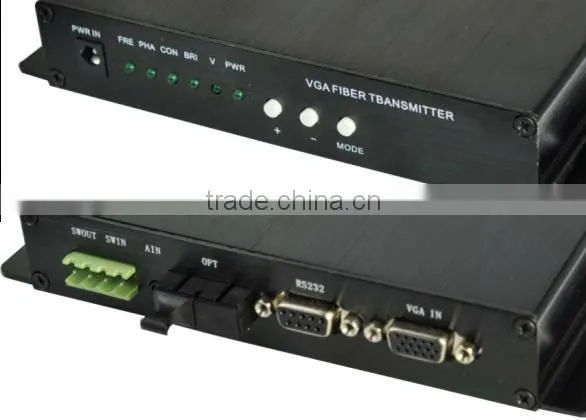

front view and back view of product
