Specifications
1.1-12ch broadcast analog video transmitter2.Analog audio/video
3.0-100km
4.FC/PC
5.FCC CE RoHS

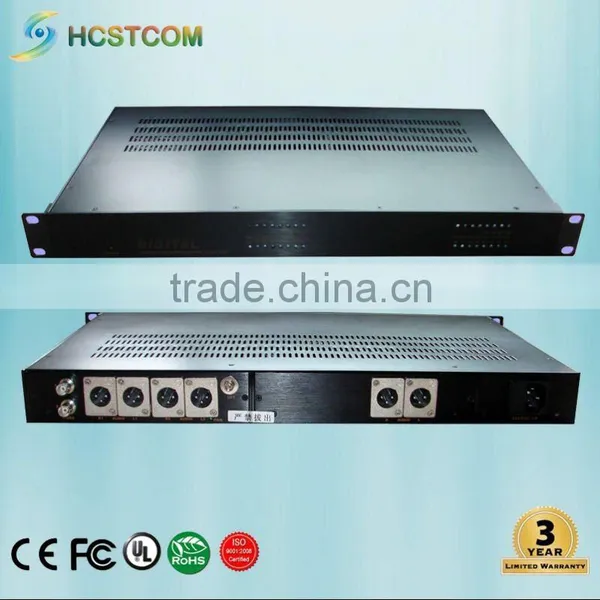

Product name: 1-8ch broadcast analog video transmitter
Product category: broadcast fiber optic transmission system
Trust us=10 year experienced+3 year warranty+Good quality+Reasonable price+technical service
Product introduction
1. Overview
HC6000 specially is designed for transmission broadcast video/audio, and could simultaneity transmit 1-8 channel broadcast-quality video and broadcast-quality audio, the forward or the reserved over one fiber.
2. Features
« 192 KHz, 24 Bit analog audio quantization, high-fidelity
« Range of input signal sampling frequency adaptive 32~100KHz
« Output signal sampling frequency of digital audio 44.1,48,88.2,96KHz, optional
« 10-bit video digital signal quantity
« All digital no compression, no damage, point to point or multipoint broadcast audio/video fiber optic transmission
« All surface mount technology, industrial design, high reliability, average working time more than 100000 hours
« Support hot swap with electric
« Support lossless signal regenerator
« With error correction circuit, and also with the ability of anti-burst interference
« Super optical dynamic range, no adjustment when use
« FC/PC optical connectors, the longest distance could be up to 100km above, when no regenerator
« 1-channel video and 8-channel broadcast audio could be transmitted synchronously, forward and backward
« 19 inch 1U or 2U standard rack mount
3. Specifications
| ANALOG AUDIO | |
| Input/output impedance | 600Ω equilibrium |
| Input/output interface | XLR (RCA optional) |
| Max. input/output level | +15 dBu |
| Frequency Response | 20Hz-20KHz,±0.1dB |
| SNR | > 85dB(A weighted) |
| THD+N | < 0.01%@1KHz |
| Crosstalk | < -90dB |
| AES/EBU DIGITAL AUDIO | |
| Input/output impedance | 110Ωequilibrium |
| Input/output interface | XLR |
| Input/output level | 0.4 ~ 5Vp-p |
| Signal format | 24 Bits (every channel) |
| Jitter | <0.5ns |
| Input sampling frequency | 32 ~ 100KHz |
| Output sampling frequency | 44.1KHz,48KHz,88.2KHz,96KHz, can be set |
| VIDEO | |
| Video broadband | 8MHz |
| SNR | >75dB(weighted) |
| Differential gain | <1% |
| Differential phase | <1.0° |
| Field tile | <0.5% |
| Input/output impedance | 75Ω |
| Input/output level | 1.0Vp-p |
| Input/output interface | BNC |
| OPTICS | |
| Wavelength | multimode 850nm/1300nm, single-mode 1310nm/1550nm |
| Transmit power | +3 ~-15dBm |
| Receiver sensitivity | -28dBm |
| Connector | FC/PC |
4. Successful cases
| Partial successful cases (broadcast field) | |||
| No | End user | Project or application | Referred products |
| 1 | Harbin TV | live broadcast and rebroadcast | Broadcast quality AV transceivers |
| 2 | SZJ TV | Entertainment program rebroadcast | Broadcast quality AV transceivers |
| 3 | Shenyang TV | vocal concert and evening party live broadcast | Broadcast quality AV transceivers |
| 4 | Chongqing TV | CQU Anniversary Great evening party live broadcast | Broadcast quality AV transceivers |
| HD-SDI series transceiver | |||
| 5 | HNTV | outdoor great entertainment live broadcast, | Broadcast quality AV transceivers |
| HD-SDI series transceiver | |||
| 6 | HLJTV | Vocal concert and everning party live broad cast | Broadcast quality AV transceivers |
| 7 | SCTV | Channel 5 live broadcast | Broadcast quality AV transceivers |
| 8 | CDTV | university rebroadcast | Broadcast quality AV transceivers |
| 9 | AHTV | outdoor live broadcast | HD-SDI series transceiver |
5. Ordering Information
1-12 Ch Broadcast Audio/Video Fiber Optic Transmission
HC6000-T
1-12 channel broadcast video and broadcast audio input, single fiber, single mode, FC/PC fiber connector, XLR audio interface (RCA audio interface optional), BNC video interface, 1U rack mount, standard 20km (0-120km optional)
HC6000-R
1-12 channel broadcast video and broadcast audio output, single fiber, single mode, FC/PC fiber connector, XLR audio interface (RCA audio interface optional), BNC video interface, 1U rack mount, standard 20km (0-120km optional)
a) Unidirectional Broadcast Audio/Video Fiber Optic Transmitter and Receiver
HC6002-T/R 2-channel forward broadcast audio and 2-channel forward broadcast video
HC6004-T/R 4-channel forward broadcast audio and 4-channel forward broadcast video
HC6006-T/R 6-channel forward broadcast audio and 6-channel forward broadcast video
HC6008-T/R 8-channel forward broadcast audio and 8-channel forward broadcast video
HC6010-T/R 10-channel forward broadcast audio and 10-channel forward broadcast video
HC6012-T/R 12-channel forward broadcast audio and 12-channel forward broadcast video
b) Bidirectional Broadcast Audio/Video Optional
