Fiber Optic Radio & TV Broadcasting Equipment

Specifications

1.Fiber Optic Radio & TV Remote Broadcasting Equipment
2.Analog audio/video
3.0-120km
4.FC/PC, XLR
5.FCC CE RoHS

Product name:  Fiber Optic Radio & TV  Broadcasting Equipment



Product category: broadcast fiber optic transmission system



TRUST US= 10 year experienced+3-year warranty+Good quality,+reasonable price + technical service





Product introduction

1. Overview

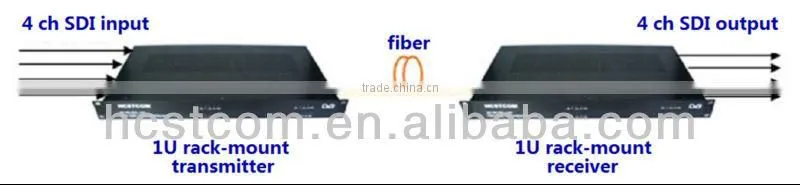

HC6000 specially is designed for transmission broadcast video/audio, and could simultaneity transmit 1-8 channel broadcast-quality video and broadcast-quality audio, the forward or the reserved over one fiber



2. Features

«  192 KHz, 24 Bit analog audio quantization, high-fidelity

«  Range of input signal sampling frequency adaptive 32~100KHz

«  Output signal sampling frequency of digital audio 44.1,48,88.2,96KHz, optional

«  10-bit video digital signal quantity

«  All digital no compression, no damage, point to point or multipoint broadcast audio/video fiber optic transmission

«  All surface mount technology, industrial design, high reliability, average working time more than 100000 hours

«  Support hot swap with electric

«  Support lossless signal regenerator

«  With error correction circuit, and also with the ability of anti-burst interference

«  Super optical dynamic range, no adjustment when use

«  FC/PC optical connectors, the longest distance could be up to 100km above, when no regenerator

«  1-channel video and 8-channel broadcast audio could be transmitted synchronously, forward and backward

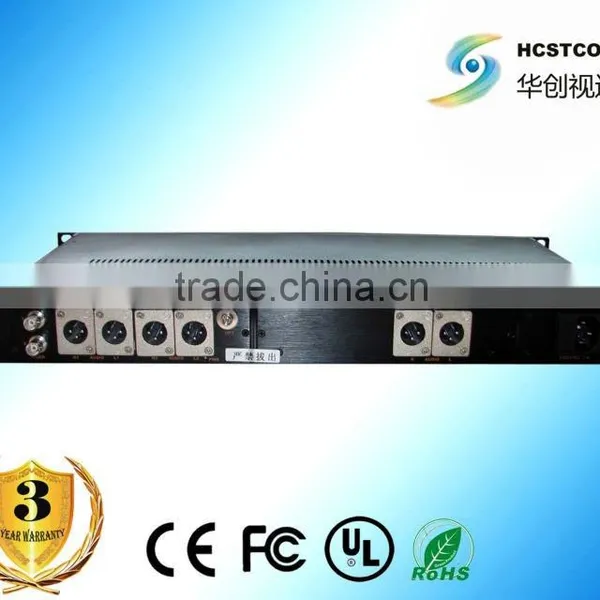

«  19 inch 1U or 2U standard rack mount



3. Specifications





ANALOG AUDIO
Input/output impedance	600Ω equilibrium
Input/output interface	XLR (RCA optional)
Max. input/output level	+15 dBu
Frequency Response	20Hz-20KHz,±0.1dB
SNR	> 85dB(A weighted)
THD+N	< 0.01%@1KHz
Crosstalk	< -90dB
AES/EBU DIGITAL AUDIO
Input/output impedance	110Ωequilibrium
Input/output interface	XLR
Input/output level	0.4 ~ 5Vp-p
Signal format	24 Bits (every channel)
Jitter	<0.5ns
Input sampling frequency	32 ~ 100KHz
Output sampling frequency	44.1KHz,48KHz,88.2KHz,96KHz, can be set
VIDEO
Video broadband	8MHz
SNR	>75dB(weighted)
Differential gain	<1%
Differential phase	<1.0°
Field tile	<0.5%
Input/output impedance	75Ω
Input/output level	1.0Vp-p
Input/output interface	BNC
OPTICS
Wavelength	multimode 850nm/1300nm,                                                 single-mode 1310nm/1550nm
Transmit power	+3 ~-15dBm
Receiver sensitivity	-28dBm
Connector	FC/PC
OTHER
Average time trouble-free	>100000 hours
Operating temperature	-40°C~ +70°C
Humidity	0~95% no condensation
Weight	20~20KHz
Dimension	standard 19-inch, 1U rack mount, 482.6mm×44.5mm×230mm
Power	95~240V/AC, 50/60Hz,1A
Weighted SNR	≥90 dB







4. Successful cases





Partial successful cases (broadcast field)
No	End user	Project or application	Referred products
1	Harbin TV	live broadcast and rebroadcast	Broadcast quality AV transceivers
2	SZJ TV	Entertainment program rebroadcast	Broadcast quality AV transceivers
3	Shenyang TV	vocal concert and evening party live broadcast	Broadcast quality AV transceivers
4	Chongqing TV	CQU Anniversary Great evening party live broadcast	Broadcast quality AV transceivers
			HD-SDI series transceiver
5	HNTV	outdoor great entertainment live broadcast,	Broadcast quality AV transceivers
			HD-SDI series transceiver
6	HLJTV	Vocal concert and everning party live broad cast	Broadcast quality AV transceivers
7	SCTV	Channel 5 live broadcast	Broadcast quality AV transceivers
8	CDTV	university rebroadcast	Broadcast quality AV transceivers
9	AHTV	outdoor live broadcast	HD-SDI series transceiver





Our fab:







            Our product in live broadcasting



 5. Ordering Information

1-12 Ch Broadcast Audio/Video Fiber Optic Transmission

HC6000-T

1-12 channel broadcast video and broadcast audio input, single fiber, single mode, FC/PC fiber connector, XLR audio interface (RCA audio interface optional), BNC video interface, 1U rack mount, standard 20km (0-120km optional)

HC6000-R

1-12 channel broadcast video and broadcast audio output, single fiber, single mode, FC/PC fiber connector, XLR audio interface (RCA audio interface optional), BNC video interface, 1U rack mount, standard 20km (0-120km optional)



a) Unidirectional Broadcast Audio/Video Fiber Optic Transmitter and Receiver

HC6002-T/R 2-channel forward broadcast audio and 2-channel forward broadcast video

HC6004-T/R 4-channel forward broadcast audio and 4-channel forward broadcast video

HC6006-T/R 6-channel forward broadcast audio and 6-channel forward broadcast video

HC6008-T/R 8-channel forward broadcast audio and 8-channel forward broadcast video

HC6010-T/R 10-channel forward broadcast audio and 10-channel forward broadcast video

HC6012-T/R 12-channel forward broadcast audio and 12-channel forward broadcast video

b) Bidirectional Broadcast Audio/Video Optional
