Specifications
1.1-8ch broadcast analog audio/video video optical transmission2.Analog audio/video
3.0-120km
4.FC/PC, XLR
5.FCC CE RoHS

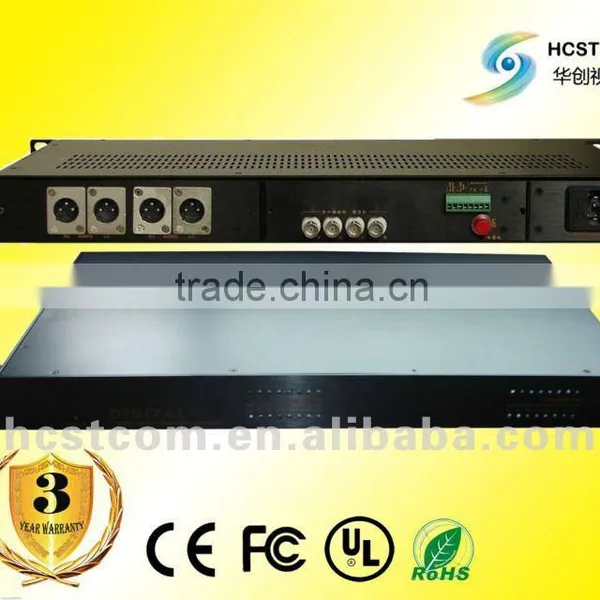

Product name: 1-8ch broadcast analog audio/video video optical transmission
Product category: broadcast fiber optic transmission system
TRUST US
We are your best choice for Chinese parnter
Because of 10 year experienced, 3 year warranty, professional technical service and good price
CUSTOMER DISIGN AND SPECIAL SPEC REQUSET ARE ALWAYS WELCOME.
including video,audio,DATA, bidirectional,Ethernet, etc
Product introduction
1. Overview
HC6000 specially is designed for transmission broadcast video/audio, and could simultaneity transmit 1-8 channel broadcast-quality video and broadcast-quality audio, the forward or the reserved over one fiber
2. Features
« 192 KHz, 24 Bit analog audio quantization, high-fidelity
« Range of input signal sampling frequency adaptive 32~100KHz
« Output signal sampling frequency of digital audio 44.1,48,88.2,96KHz, optional
« 10-bit video digital signal quantity
« All digital no compression, no damage, point to point or multipoint broadcast audio/video fiber optic transmission
« All surface mount technology, industrial design, high reliability, average working time more than 100000 hours
« Support hot swap with electric
« Support lossless signal regenerator
« With error correction circuit, and also with the ability of anti-burst interference
« Super optical dynamic range, no adjustment when use
« FC/PC optical connectors, the longest distance could be up to 100km above, when no regenerator
« 1-channel video and 8-channel broadcast audio could be transmitted synchronously, forward and backward
« 19 inch 1U or 2U standard rack mount
3. Specifications
| ANALOG AUDIO | |
| Input/output impedance | 600Ω equilibrium |
| Input/output interface | XLR (RCA optional) |
| Max. input/output level | +15 dBu |
| Frequency Response | 20Hz-20KHz,±0.1dB |
| SNR | > 85dB(A weighted) |
| THD+N | < 0.01%@1KHz |
| Crosstalk | < -90dB |
| AES/EBU DIGITAL AUDIO | |
| Input/output impedance | 110Ωequilibrium |
| Input/output interface | XLR |
| Input/output level | 0.4 ~ 5Vp-p |
| Signal format | 24 Bits (every channel) |
| Jitter | <0.5ns |
| Input sampling frequency | 32 ~ 100KHz |
| Output sampling frequency | 44.1KHz,48KHz,88.2KHz,96KHz, can be set |
| VIDEO | |
| Video broadband | 8MHz |
| SNR | >75dB(weighted) |
| Differential gain | <1% |
| Differential phase | <1.0° |
| Field tile | <0.5% |
| Input/output impedance | 75Ω |
| Input/output level | 1.0Vp-p |
| Input/output interface | BNC |
| OPTICS | |
| Wavelength | multimode 850nm/1300nm, single-mode 1310nm/1550nm |
| Transmit power | +3 ~-15dBm |
| Receiver sensitivity | -28dBm |
| Connector | FC/PC |
| OTHER | |
| Average time trouble-free | >100000 hours |
| Operating temperature | -40°C~ +70°C |
| Humidity | 0~95% no condensation |
| Weight | 20~20KHz |
| Dimension | standard 19-inch, 1U rack mount, 482.6mm×44.5mm×230mm |
| Power | 95~240V/AC, 50/60Hz,1A |
| Weighted SNR | ≥90 dB |
4. Successful cases
Our product in live broadcasting
