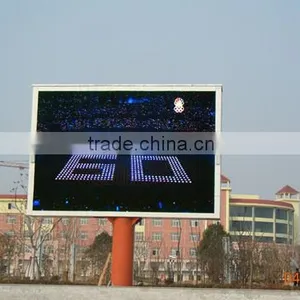

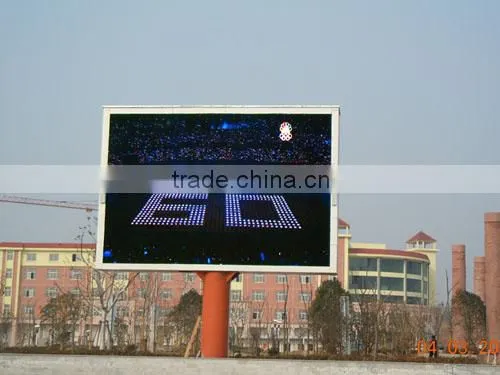

P16 china video led dot matrix outdoor display
The parameter of Indoor china video led dot matrix outdoor display
Please feel free to contact Tom for prices and pics.
Viber/mobile/whatsapp/wechat: +8618302108267; skype wer_sales04
Type |
DDL-OFD-P10 |
DDL-OFD-P12 |
DDL-OFD-P16 |
DDL-OFD-P20 |
Pitch |
10mm |
12mm |
16mm |
20mm |
Pixel Contents |
1red +1green +1blue |
2red +1green +1blue |
2red +1green +1blue |
2red +1green +1blue |
Pixel Density |
10000 dots/m2 |
6944 dots/m2 |
3906 dots/m2 |
2500 dots/m2 |
Color |
Full Color |
Full Color |
Full Color |
Full Color |
Unit Cabinet Dimension |
640mm×480mm |
768mm×576mm |
1024mm×768mm |
1280mm×960mm |
Pixels On Unit Cabinet |
64 ×48 pixels |
64×48 pixels |
64×48 pixels |
64×48 pixels |
Brightness |
≥6000CD/ m2 |
8000CD/ m2 |
6800CD/ m2 |
5800CD/ m2 |
Visual Angle |
±60 o |
±60 o |
±60 o |
±60 o |
Working Temperature |
-20℃~~+80℃ |
-20℃~~+80℃ |
-20℃~~+80℃ |
-20℃~~+80℃ |
Volt |
220v/110v |
220v/110v |
220v/110v |
220v/110v |
Max. Power Consumption |
3000w/m2 |
1800w/m2 |
1200w/m2 |
900w/m2 |
Average Power Consumption |
1400w/m2 |
1200w/m2 |
800w/m2 |
500w/m2 |
Refresh Rate |
480Hz |
480Hz |
480Hz |
480Hz |
Life Time |
100000 hours |
100000 hours |
100000 hours |
100000 hours |
Communication Method |
UTP(TCP/IP), Optical Fiber |
UTP(TCP/IP), Optical Fiber |
UTP(TCP/IP), Optical Fiber |
UTP(TCP/IP), Optical Fiber |
Unit Cabinet Weight |
35 Kg |
35 Kg |
45 Kg |
55 Kg |
MTTF |
5000 hours |
5000 hours |
5000 hours |
5000 hours |
Blind Spot Percentage |
0.1‰ |
0.1‰ |
0.1‰ |
0.1‰ |
Shanghai WER indoor LED display screen P4, P6, P7.62, P10 is processed by special technology, it can be guaranteed that each row and every line of the LED lamps are in a straight line, the tubes location of adjustment in production process without artificial, which guarantee a uniform radiation of LED display, “black hole" phenomenon will not appear. In the production process, we have adopted a comprehensive anti-static measures, which blocked the static damage on the LED lamp, greatly reduced the rate of blind lights. At present, the rate of blind LED lamps of our indoor full color LED display could be controlled to 0.01%. Indoor LED screen
,We could classify the led lamps according to its quality degree when purchasing. Thus, the light split rate of each of our led display screen could be controlled less than 1:1.5, that means, for any 2 of LED lamps, their light difference are less than 15%, so that ensure the equal of brightness and color of LED display screen. In addition, comparing with the other company's indoor full color LED display screens,
Please feel free to contact Tom for prices and pics.
Viber/mobile/whatsapp/wechat: +8618302108267; skype wer_sales04
WER products have the following advantages:
1. WER's indoor full-color irrigation by the full use of imported silica gel, which make our products in the waterproof, resist-freeze, bear high temperatures in superior;
2. WER's indoor full-color passed waterproof and dust-proof test, the protection level can reach IP65;
3. WER's indoor full color SMD LED display passed the temperature endure test of Shenzhen Measurement and Quality Testing Institution, it result within the range of-25℃--75℃, WER's indoor full color SMD LED display are working normally.
4. WER's module of the indoor full-color screen is to strengthen by cross, compression and strong, no deformation, the display cabinet formation of a better;
5. WER's indoor full-color cabinet top sliding plate, the bottom of a sliding trough, but also matching lock box set it can fine-tune on the gap ensure that the entire surface of screen smoothness
6. Applied widely in advertising, sports, factories and mines enterprises, transport, railway stations, wharves, airports, construction, and education systems and other public places.
Features:
1. For indoor fixed install use with short viewing distances (Min.3 meters)
2. Super high resolution technology
3. Crystal Images quality
4. Black led package enhance the contrast greatly
5. Suitable for indoor small size advertising, TV studio and conference room display system
