Coil Hydraulic Cutter Decoiler Uncoiler With Car

Coil Hydraulic Cutter Decoiler Uncoiler With Car photo-1
Coil Hydraulic Cutter Decoiler Uncoiler With Car photo-2

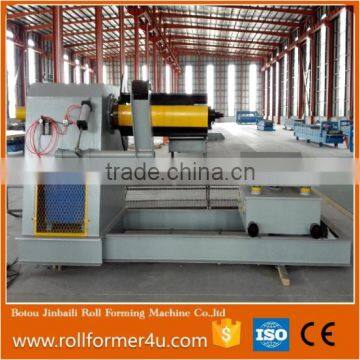

Coil Hydraulic Cutter Decoiler Uncoiler With Car photo-3

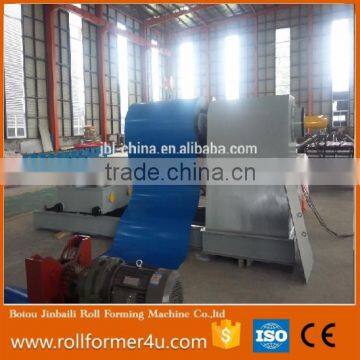

Coil Hydraulic Cutter Decoiler Uncoiler With Car photo-4

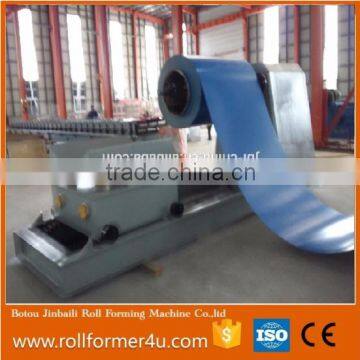

Coil Hydraulic Cutter Decoiler Uncoiler With Car photo-5

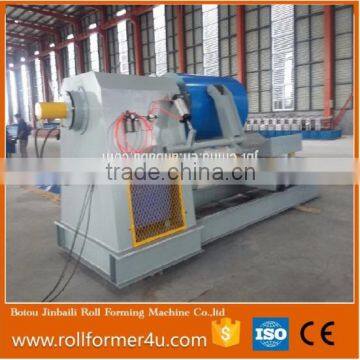

Coil Hydraulic Cutter Decoiler Uncoiler With Car photo-6
US$ 8,000 - 11,100 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Decoiler
Tile Type:
Colored Glaze Steel
Payment & Shipping
Payment Methods:
Port of Shipment:
TIANJIN
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Decoiler
Tile Type Colored Glaze Steel
Use Roof
Production Capacity 8-12m/min
Place of Origin Hebei, China
Brand Name JBL
Model Number Roll Forming Machine
Power(W) 4+4KW
Voltage 380V 50Hz 3phases
Dimension(L*W*H) 6500*1300*1100
Weight 4500KG
Certification CE/ISO9001
Warranty 12 Months
After-sales Service Provided Engineers available to service machinery overseas
 Hydraulic decoiler without car

Product Description

 Technical parameters:

Coil inner diameter: 450mm-650mm
Maximum width of coiling: 1250mm(you can use 0.5-1.6mm x 305 – 610 mm steel coils on this machine)
Maximum weight of loading: 5 ton
Hydraulic power: 3kw
Motor power: 3kw
Working speed: 0-15m/min
Oil pump inner diameter: 120mm
PLC: made in Taiwan
Working press: 10Mpa
Voltage: 380V-50HZ-3Phase
Dimension: 1600x1650x1780mm

Payment: 50% T/T prepaid, and pay the balance before shipping.
Delivery time: 30 working days, except special cases.
Guarantee period: one year.
Packing: nude in container
Installation and training:
 If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
 Without visiting,we will send you user manual and CD to teach you to install and operate.
 If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.

Our Services



1.Installing and training machine manufacturer:

1) If buyers visit our factory and check the machine will teach you how to install and use the roll forming machine for sale, and also train your face workers / technician face.
2) Without visiting, we will send user manual and video to teach you how to install and operate.
3) If the buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.


2. After the service roll forming machine for sale:

1) One year warranty for all roll forming machine sale.
2) 24-hour technical support by email or by calling
3) If there is any problem encountered profiling machinery sheet steel roof, we will repair roll forming machine for sale for free in one year.



Company Information



BOTOU JINBAILI ROLL FORMING MACHINE Co., Ltd.specially in ROLL FORMING MACHINE 15 years, Main products are glazed tile machine, C Z U purlin machine,floor deck forming machine,highway guardrail machine,lighht steel keel beam machine,board forming machine.Credit Assurance.High quality low price.



We have high technological background,advanced and mature production equipment and perfect means of inspection.We not only produce different type of professional roll forming machine,but also developed intelligent automatic production line of roll forming equipment,C shape purline machine and precipitator anodde plate forming machine ect. We have developed automatic production line of roll forming machine,roof panel,wall panel forming machine series,Glazed tile roll forming machine series,Floor deck forming machine series,Highway barrier forming machine series,double deck color steel tile roll forming machine series,C,Z shaped steel purline machine series,ach camber machine series and bending machine series,insulated sandwich panel machine on the base of traditional roll forming machine ,fair frame and standard model.
