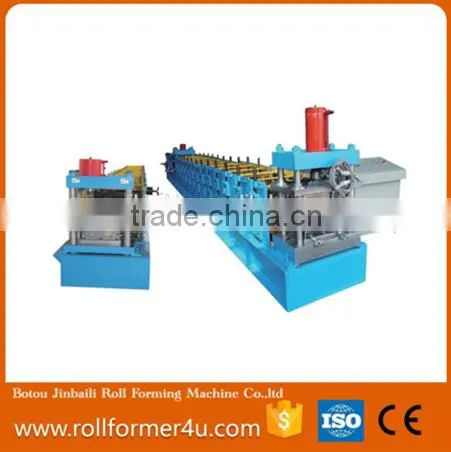

Help CenterHigh Performance Color Steel z Furring Channel Z Shape Purlin Roll Forming Machine With Hydraulic Drive
Related Products
-
Low Cost C,Z,U Purlin Roofing Sheet Roll Forming MachineUS$ 6,500 - 12,000MOQ: 1 Set -
FUll Automatic Aluminum Suspended Slatting Ceiling Roll Forming Machine Strip Ceiling Roll Forming MachineUS$ 12,000 - 12,500MOQ: 1 Set
-
Low Price Aluminum Suspended Slatting Ceiling Roll Forming Machine Strip Ceiling Roll Forming MachineUS$ 12,000 - 12,500MOQ: 1 Set
-
C,Z,U Purlin Roof Sheet Metal Making Machine With High Quality and Cheap PriceUS$ 6,500 - 12,000MOQ: 1 Set
-
Ceiling Purlin Roll Forming Machine/steel Strip Stud Profile c z Purlin Cold Roll Forming MachineUS$ 7,000 - 10,000MOQ: 1 Set
Z channel Roll Forming Machine
We can also design Corrugated Roof Panel Roll Forming Machine according to your specific profile drawing.
Specification:
1) Can produce Metal stud. drywall track, rail, light keel, Ceiling Tray
2) High speed work, perfect finish
3) European quality, work smoothly.
Main specifications
Material: GI,Carbon steel
Material thickness: 2-3.0mm
Machine diameter: about 8500*1000*1300(L*W*H)
Weight of machine: about 5 Ton
Decoiler: Manual or hydraulic (customer can choos)
Weight capacity of decoiler: 5 Ton
Forming station: about 17
Principle: 80mm diameter
Forming speed: 0-10m/min
Drive type: 1.5' chain transmission
Roller material: CGr 15 steel,quenched and heated process
Main power: 11Kw
Hydraulic power: 5.5Kw
Punching: Hydraulic punching
Electrical control: PLC control system with touch screen
PLC: PANASONIC Brand
Enconder: PANASONIC Brand
Transducer: PANASONIC Brand
2.The Chart of Process flow
Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Step formed→
Auto cutting→Products receiving
The equiipments includes
| roll forming machine | 1 set |
| Hydraulic Station | 1 set |
| Guiding Platform | 1 set |
| Coil Strip Levele | 1 set |
| PLC Contro | 1 set |
| Electric-Motor | 1 set |
| Supporter Table | 1 set |
Our Company is major trapezoidal roof roll forming machine manufacture based in China. Our mainly products include double level roll forming machines, trapezoidal roof forming machines, steel pipe forming mill, slitting lines and cut to length lines, etc. They are widely used in process sheet metal and form roof panels, shingle nails, glazed tiles, purlins, deck, downpipe and more, or for metal roll forming in steel shelving systems and highway guardrail systems, and so on.
For more information on our metal forming machines, or other products, we welcome you to contact us.
Verified Information By Onsite Checked
Verification Type: third-party verification service provider
Business license:
Registration No.:130981000025769
Date of Issue:2013-03-11
Date of Expiry:2033-03-10
Registered Capital:RMB 500,000
Company Name:Botou Jinbaili Roll Forming Machine Co., Ltd.
Country/Territory:China (Mainland)
Registered address:Nancang Street, Botou, Cangzhou, Hebei, China (Mainland)
Year Established:1999
Legal Representative/CEO:Jianping Huang
Legal Form:Limited Liability Company (Invested Or Controlled By Natural Persons)
Issuing Authority:Botou City Administration for Industry and Commerce
Business Type: Manufacturer, Trading Company
Web: /
1.Installing and training machine manufacturer
1) If buyers visit our factory and check the machine will teach you how to install and use the roll forming machine for sale, and also train your face workers / technician face.
2) Without visiting, we will send user manual and video to teach you how to install and operate.
3) If the buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
2. After the service roll forming machine for sale
1) One year warranty for all roll forming machine sale.
2) 24-hour technical support by email or by calling
3) If there is any problem encountered profiling machinery sheet steel roof, we will repair roll forming machine for sale for free in one year.
We are wholeheartedly committed to quality and customer service, primarily since we want to be ranked as the "best" in our business. Quality is not just another goal; it is our basic strategy for survival and future growth.
1. Are you manufacturer?
Yes, we are manufacturer and trading company.
2. What information you need before quote me?
We need profile drawin gof the panel you want to produce, material information and your special requirements
3. What payment terms you accept?
Commonly is TT, 30% deposit and 70% before shipment, and sometimes we can consider more for you as per your request.
4. Can you make machine according to my design?
Yes, we have experienced technical team to work out the suitable design for you and confirm with you until you agree.
5. What is the warranty for our machine?
We have one year guarantee, and provide whole life's technical support
6. Is there any spare part send for free?
Yes, pls contact us we can talk it
7.Is the machine automatic?
Yes, it can be manual and automatic
