Metal Structureroll Forming Machine for C U Z Profiles With ISO , CE Certification

Metal Structureroll Forming Machine for C U Z Profiles With ISO , CE Certification photo-1

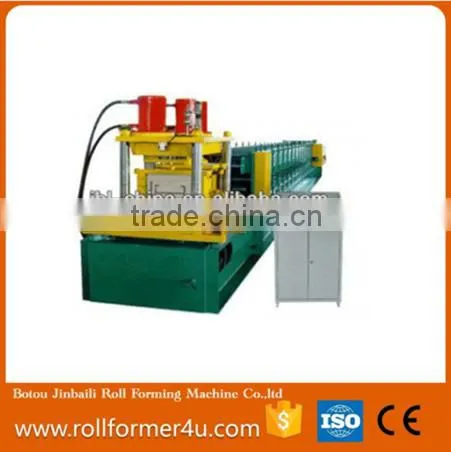

Metal Structureroll Forming Machine for C U Z Profiles With ISO , CE Certification photo-2

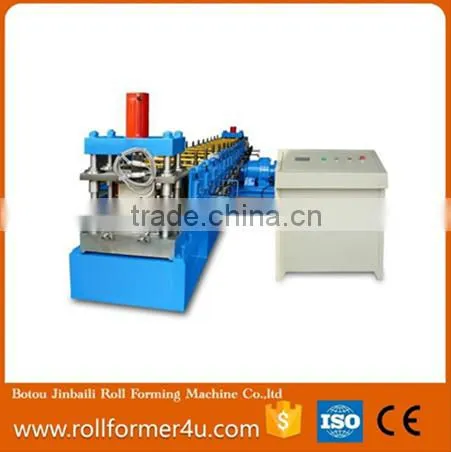

Metal Structureroll Forming Machine for C U Z Profiles With ISO , CE Certification photo-3
US$ 15,000 - 18,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Tile Forming Machine
Tile Type:
Colored Glaze Steel
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Tile Forming Machine
Tile Type Colored Glaze Steel
Use Roof
Production Capacity 8-12m/min
Place of Origin Hebei, China
Brand Name JBL
Model Number Roll Forming Machine
Power(W) 5.5 Kw
Voltage 380V 50Hz 3phases
Dimension(L*W*H) L*W*H)According to customer requirements
Weight 5 Tons
Certification CE/ISO9001
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas

 C / Z / U Purlin Roll Forming Machine

Reference Drawings

Metal structureroll forming machine for C U Z profiles with ISO , CE certificationMetal structureroll forming machine for C U Z profiles with ISO , CE certification



Main specifications

Material:  GI,Carbon steel

Material thickness:  2-3.0mm

Machine diameter:  about 8500*1000*1300(L*W*H)Weight of machine: about 5 Ton

Decoiler: Manual or hydraulic (customer can choos)

Weight capacity of decoiler: 5 Ton

Forming station: 13

Principle:  80mm diameterForming speed: 0-10m/min

Drive type: 1.5' chain transmission

Roller material: CGr 15 steel,quenched and heated process

Main power:  11Kw

Hydraulic power: 4Kw

Punching:  Hydraulic punching

Electrical control: PLC control system with touch screen



The chart of process flow

Metal structureroll forming machine for C U Z profiles with ISO , CE certification

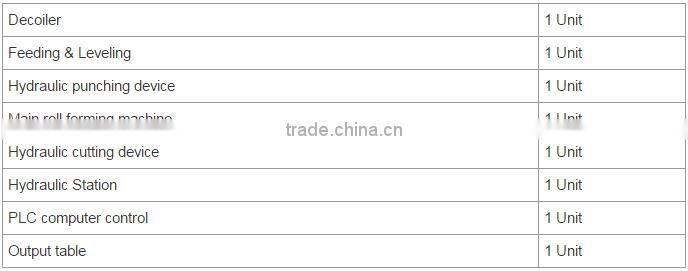

The equiipments includes

Metal structureroll forming machine for C U Z profiles with ISO , CE certification

All technical parameters can be changed, according to customer's ruquirement.



Certification

Metal structureroll forming machine for C U Z profiles with ISO , CE certification

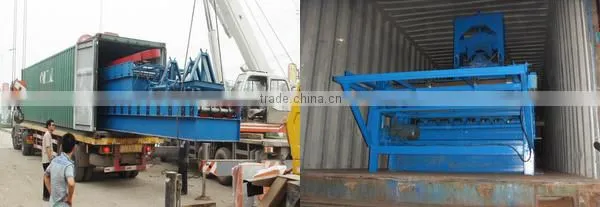

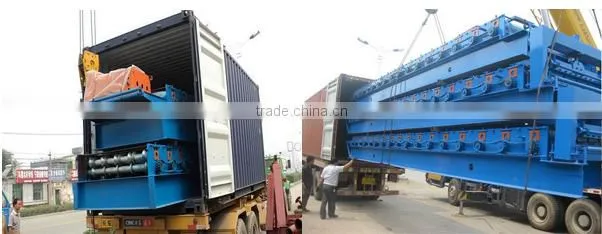

Packaging & Shipping

Packaging Details: PVC water proof film cover and then loading into container

Delivery Detail: 35days after down payment

Metal structureroll forming machine for C U Z profiles with ISO , CE certificationMetal structureroll forming machine for C U Z profiles with ISO , CE certification

Contact us



Name:Beryl

If you have any question,please contact us on your free time.

Whatsapp:+8618730742120

Wechat:jblxx123

QQ:1878175301

Skype:bbeerryyll11

Facebook:Adela Beryl AB

Web:

         http://jbl-china.en.china.cnMetal structureroll forming machine for C U Z profiles with ISO , CE certification
Our Services

1.Installing and training machine manufacturer:

1) If buyers visit our factory and check the machine will teach you how to install and use the roll forming machine for sale, and also train your face workers / technician face.
2) Without visiting, we will send user manual and video to teach you how to install and operate.
3) If the buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.


2. After the service roll forming machine for sale:

1) One year warranty for all roll forming machine sale.
2) 24-hour technical support by email or by calling
3) If there is any problem encountered profiling machinery sheet steel roof, we will repair roll forming machine for sale for free in one year.

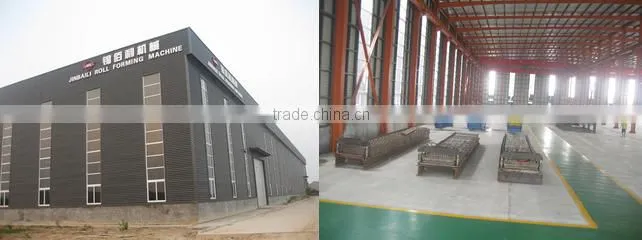

Company Information



BOTOU JINBAILI ROLL FORMING MACHINE Co., Ltd.specially in ROLL FORMING MACHINE 15 years, Main products are glazed tile machine, C Z U purlin machine,floor deck forming machine,highway guardrail machine,lighht steel keel beam machine,board forming machine.Credit Assurance.High quality low price.



We have high technological background,advanced and mature production equipment and perfect means of inspection.We not only produce different type of professional roll forming machine,but also developed intelligent automatic production line of roll forming equipment,C shape purline machine and precipitator anodde plate forming machine ect. We have developed automatic production line of roll forming machine,roof panel,wall panel forming machine series,Glazed tile roll forming machine series,Floor deck forming machine series,Highway barrier forming machine series,double deck color steel tile roll forming machine series,C,Z shaped steel purline machine series,ach camber machine series and bending machine series,insulated sandwich panel machine on the base of traditional roll forming machine ,fair frame and standard model.

Metal structureroll forming machine for C U Z profiles with ISO , CE certification

FAQ



We are wholeheartedly committed to quality and customer service, primarily since we want to be ranked as the "best" in our business. Quality is not just another goal; it is our basic strategy for survival and future growth.



1. Are you manufacturer?

Yes, we are manufacturer and trading company.



2. What information you need before quote me?

We need profile drawin gof the panel you want to produce, material information and your special requirements



3. What payment terms you accept?

Commonly is TT, 30% deposit and 70% before shipment, and sometimes we can consider more for you as per your request.



4. Can you make machine according to my design?

Yes, we have experienced technical team to work out the suitable design for you and confirm with you until you agree.



5. What is the warranty for our machine?

We have one year guarantee, and provide whole life's technical support



6. Is there any spare part send for free?

Yes, pls contact us we can talk it



7.Is the machine automatic?

Yes, it can be manual and automatic
