total auto C,Z,U purlin roll forming machine manufacture
- 15 Set / Sets per Month
- tianjin
Product Details
Condition: | New | Type: | Other, Purlin | Tile Type: | Steel |
Use: | Other, Purline | Production Capacity: | 6-10m/min | Place of Origin: | Hebei, China |
Brand Name: | JBL | Power(W): | 5kw | Voltage: | 220-440V |
Certification: | ISO | Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

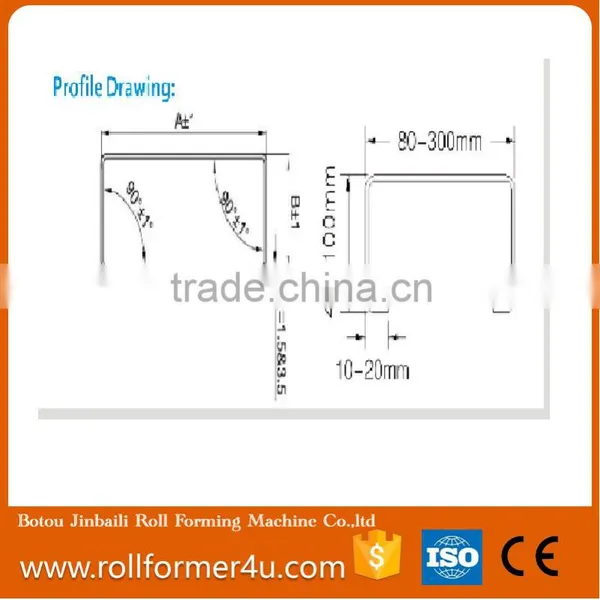

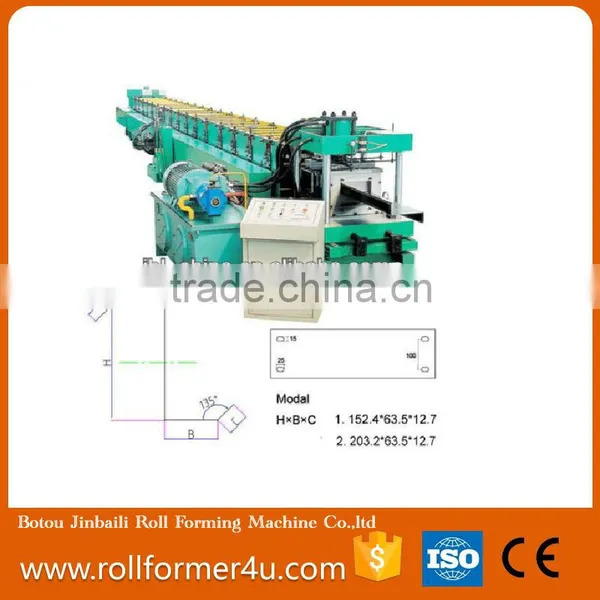

C,Z,U purlin machine/corrugated roof sheet making machine
Technical specifications:
Manual decoiler(special C/Z decoiler)
Max coil width:500mm
Max loading weight: 2 ton

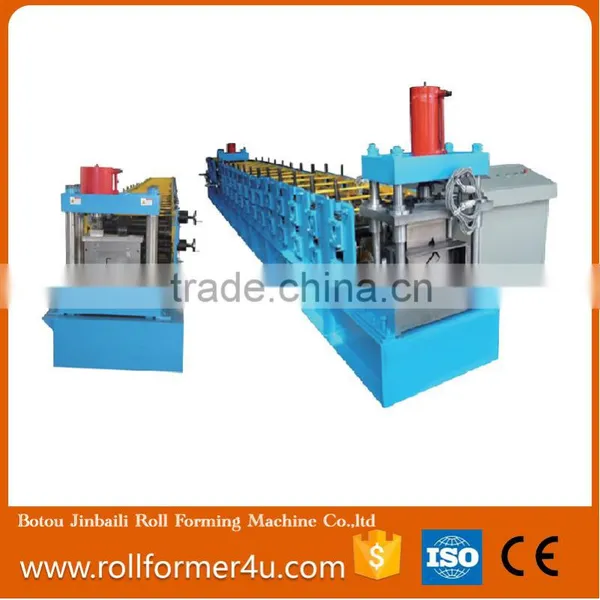

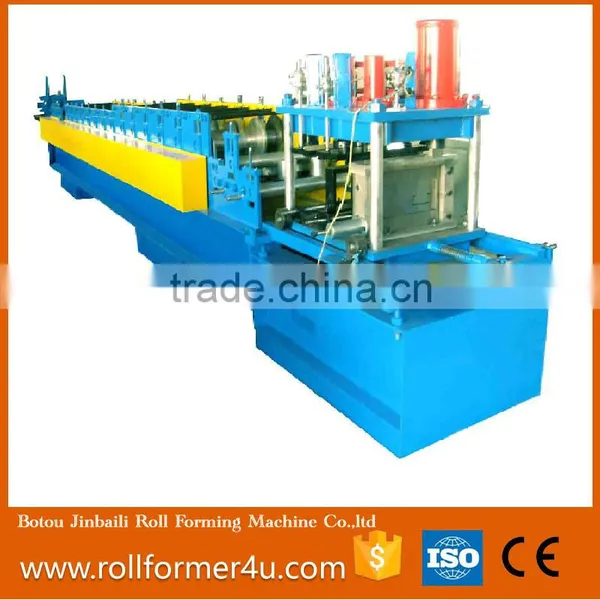

Main forming machine:
Forming shafts: external diameter 85 mm, 45# steel thermal refining
Forming rollers: GCR15 bearing steel quenching HRC58-60°
Levelling rollers: 7 rollers, levelling rollers diameter: 100mm
Main forming stations: 13 groups
Motor slowdown power: 7.5kw
Main stand: 350# H steel
Chains size: 2’’
Working speed (productivity): 8-12m/min

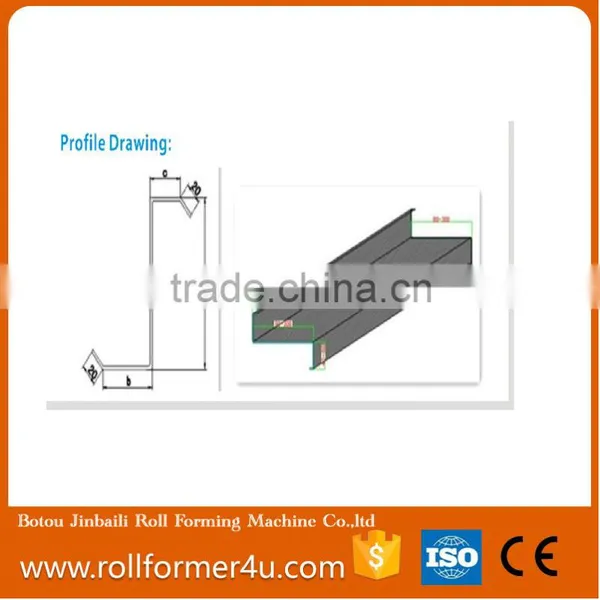

Z purlin size: 100-300mm
Steel Material : Q235
Thickness of the Z purlin: max 3mm
Changing different models: adjust manually
Dimension of the main machine: 8000mm*1500mm*1000mm
Weight of the machine: About 5.5 ton
Hydraulic system and hydraulic cutter
Material of blade:Cr12 mould steel with quenched treatment 60-62°C
Hydraulic motor power: 4KW
Pressure: 10-12 Mpa
Cutting system: adopt advanced hydraulic drive, after forming automatic cut, no distort, no wasting, high safe factor.
Function and structure: cutting the forming Z purlins.
Electric controlling system
The Brand of display: adopting 5.7 inch Tai Da DVP14ES
The main computer (PLC): Tai Da DVP14ES
Function and operation: Control the starting ,operation and stopping of the whole line, including distribution section, operation table, counting instrument. Use PLC to control, set and adjust the length.
